Xpert

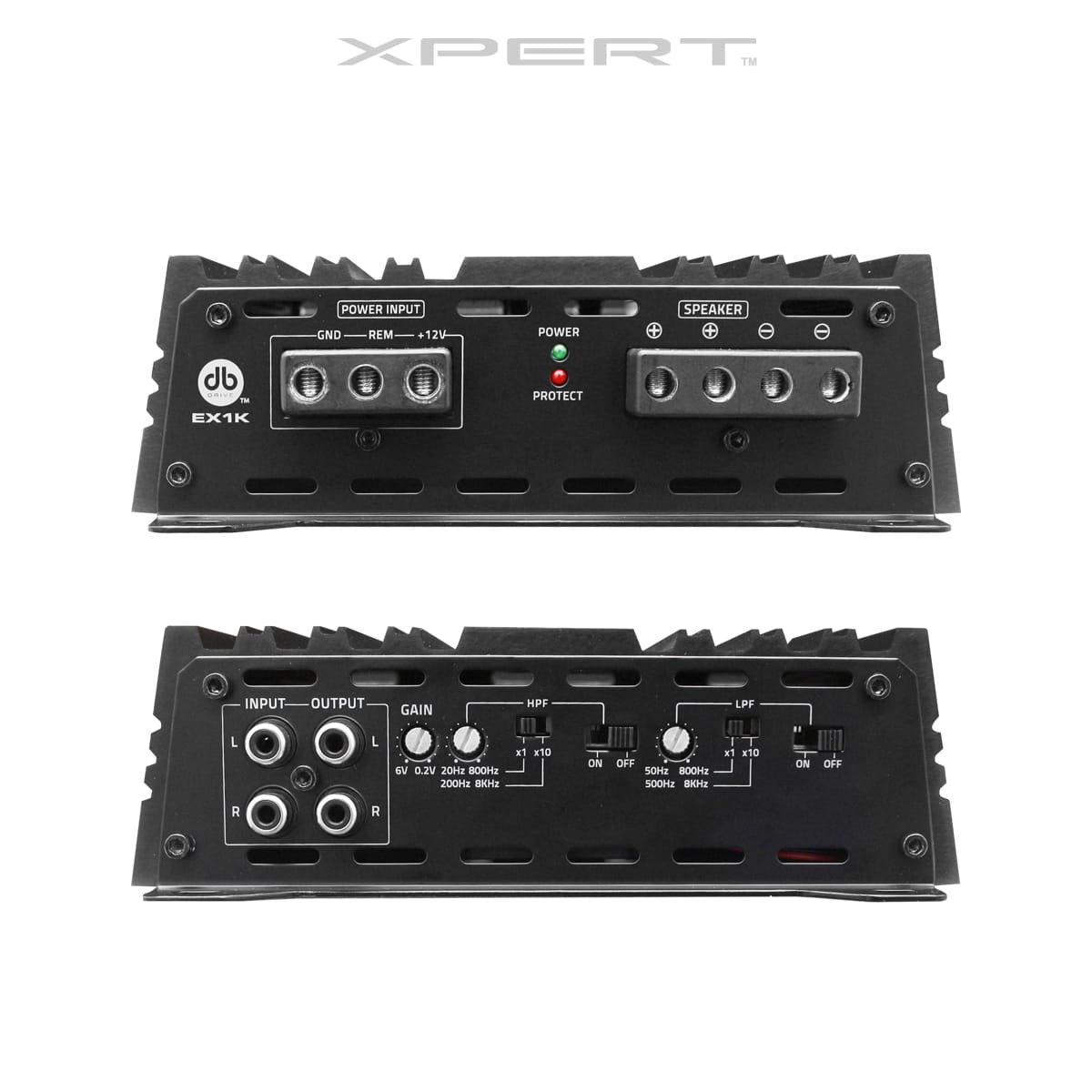

EX1K : Full Range Class D Mono Power Sports Amplifier
SKU:8.12E+11
Couldn't load pickup availability
Features
- Audiophile Grade Tiffany RCA connectors
- Buffered full-range RCA pass-through outputs
- High-efficiency full range Class D Technology
- Direct Connect Speaker terminals
- Large Gauge Power Wire Inputs
- Speaker Short Circuit Protection
- Conformal coated moisture-resistant PCB
Specifications
| Rated Power @ 14.4 Volts | 1 x 250 Watts @ 4Ω |
|---|---|
| 1 x 500 Watts @ 2Ω | |
| 1 x 1000 Watts @ 1Ω | |
| Frequency Response | 20Hz – 35KHz |
| S/N Ratio | <95dB |
| Low Level Input | 6V – 0.2V |
| High Pass Filter Variable | 20Hz ~ 8KHz |
| Low Pass Filter Variable | 50Hz ~ 8KHz |
| Working Voltage | 10V ~ 16V |
Product Manual
Description
The EX1K Audio Amplifier delivers premium sound with high-quality Tiffany RCA connectors and efficient Class D technology. Its buffered pass-through outputs ensure your audio signal stays clear, even when connecting additional devices. The easy-to-use speaker terminals provide direct connections, while large gauge power inputs support superior performance. Built-in short circuit protection keeps your equipment safe, and the moisture-resistant PCB ensures long-lasting durability. Perfect for audiophiles seeking powerful, reliable sound in any setup.
