EWXPW8D2 : 8" Dual 2-Ohm Subwoofer
EWXPW8D2 : 8" Dual 2-Ohm Subwoofer
Regular price
$249.99 USD
Regular price
Sale price
$249.99 USD
Unit price
per
people are viewing this right now
SKU:8.12E+11
Couldn't load pickup availability
EWXPW8D2 : 8" Dual 2-Ohm Subwoofer
Regular price
$249.99 USD
Regular price
Sale price
$249.99 USD
Unit price
per
Features
- 2″ High-temperature voice coil
- 120 oz. ceramic ferrite magnet
- High-grade Low Carbon steel on top and bottom plate
- Designed to optimize SPL performance
- High excursion spider designed
- 1.5″ high roll foam surround
- Large gauge push button speaker terminals
- Dual 2 ohm voice coils
Specifications

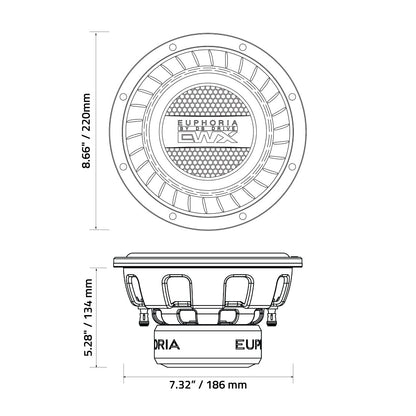

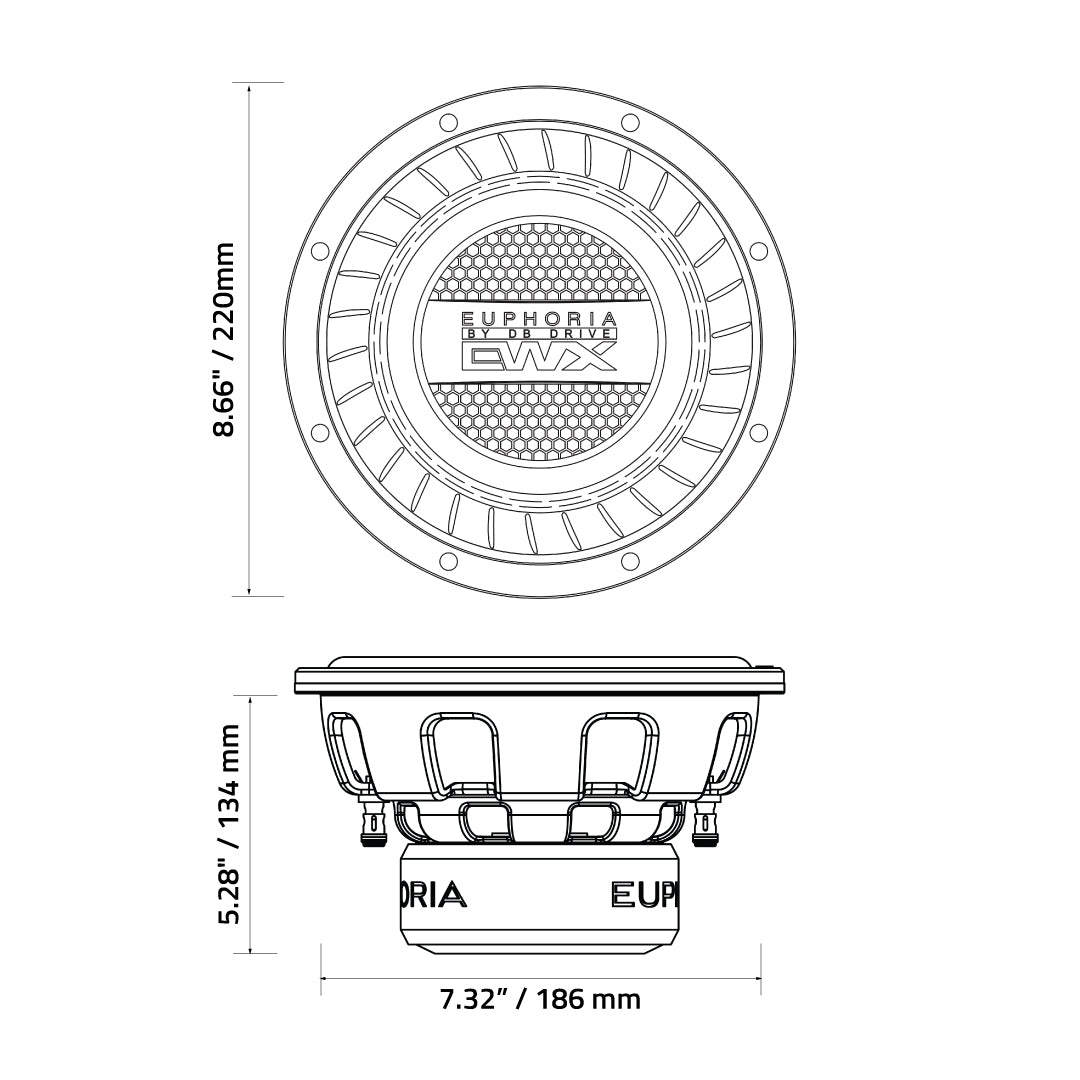

| Structure | 8” (203.3 mm) |
|---|---|
| Max Power | 500 Watts |
| Nominal Power | 250 Watts |
| Impedance | 2" (50.8mm) Dual 2 Ω Voice Coil |
| PARAMETERS | |
| Resonant Frequency (fs) | 37.505 Hz |
| D.C. Voice Coil Resistance (Re) | 6.9 Ω |
| Mechanical Quality Factor (Qms) | 11.453 |
| Electrical Quality Factor (Qes) | 0467 |
| Total Quality Factor (Qts) | 0.449 |
| Equivalent Air Volume to Cms (Vas) | 3.68L |
| Force Factor (BL) | 5.451 N/A |
| Mass of Diaphragm/Coil (Mms) | 59.479 g |
| Sound Pressure Level (SPL) | 85.441dB |
Product Manual
Description
Experience the Euphoria of Pure Bass with No Distortion!
Introducing the Euphoria EWXPW8D2, an 8-inch subwoofer that redefines sound excellence. Engineered for SQL-designed performance, this powerhouse is optimized for small enclosures yet delivers a distortion-free excursion. Its foam ribbed surround and non-pressed paper cone with high excursion ensure that every beat is as crisp and clear as the last. The dual 2Ω voice coil and 120 oz. magnet combine to deliver a staggering 500 watts of max power, while its pole piece and radial basket venting keep the voice coil cool even during intense sessions. The anti-resonance heavy gauge solid steel frame and proprietary protective magnet band offer unparalleled durability. Elevate your audio experience with the Euphoria EWXPW8D2, where power meets precision.
Introducing the Euphoria EWXPW8D2, an 8-inch subwoofer that redefines sound excellence. Engineered for SQL-designed performance, this powerhouse is optimized for small enclosures yet delivers a distortion-free excursion. Its foam ribbed surround and non-pressed paper cone with high excursion ensure that every beat is as crisp and clear as the last. The dual 2Ω voice coil and 120 oz. magnet combine to deliver a staggering 500 watts of max power, while its pole piece and radial basket venting keep the voice coil cool even during intense sessions. The anti-resonance heavy gauge solid steel frame and proprietary protective magnet band offer unparalleled durability. Elevate your audio experience with the Euphoria EWXPW8D2, where power meets precision.
