Euphoria
EWXB8D2 : 8" Dual 2-Ohm Subwoofer Black Out Edition
EWXB8D2 : 8" Dual 2-Ohm Subwoofer Black Out Edition
Regular price
$299.95 USD
Regular price
Sale price
$299.95 USD
Unit price
per
people are viewing this right now
SKU:8.12E+11
Couldn't load pickup availability
EWXB8D2 : 8" Dual 2-Ohm Subwoofer Black Out Edition
Regular price
$299.95 USD
Regular price
Sale price
$299.95 USD
Unit price
per
Features
- High Temperature Voice Coil
- 120 oz. Ceramic Ferrite Magnet ( EWX8D2/8D4 Only )
- 145 oz. Ceramic Ferrite Magnet
- High Grade Low Carbon Steel Top & Bottom Plate
- Design to optimize SPL Performance
- 1.5” High Roll Foam Surround
- Large Gauge Push Button Speaker Terminals
- Available in Dual 2Ω or Dual 4Ω Voice Coil
Specifications

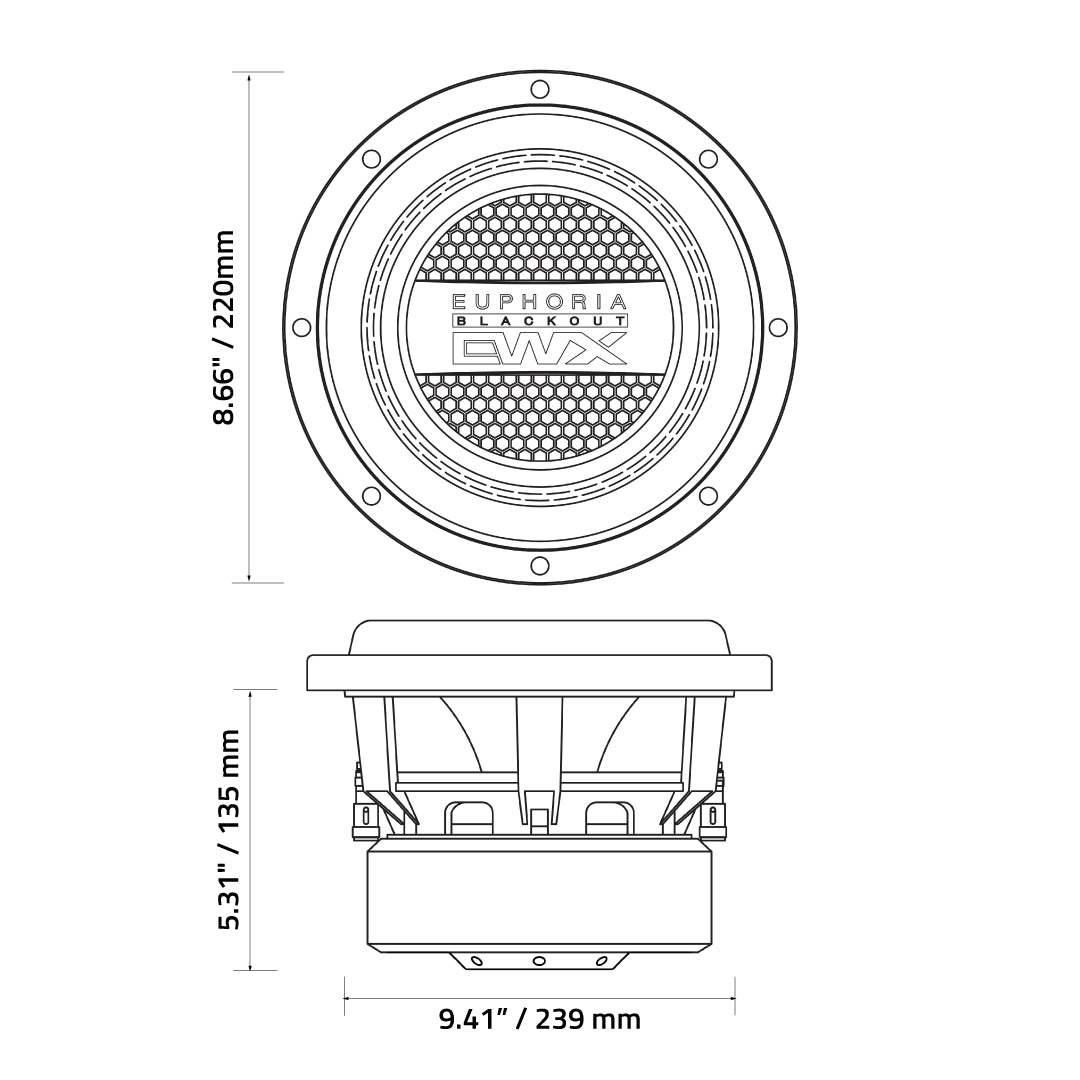

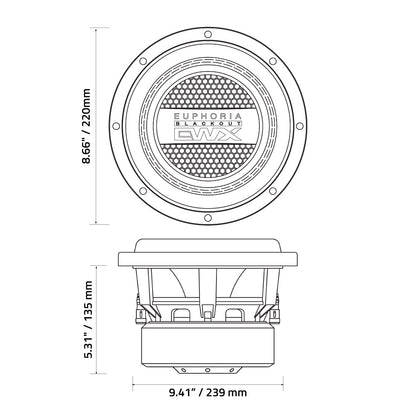

| Structure | 8” (220 mm) |
|---|---|
| Max Power | 1500 Watts |
| Nominal Power | 600 Watts |
| Impedance | Dual 2Ω Voice Coil |
| PARAMETERS | |
| Resonant Frequency (fs) | 49.591 Hz |
| D.C. Voice Coil Resistance (Re) | 1.8Ω + 1.8Ω |
| Mechanical Quality Factor (Qms) | 7.295 |
| Electrical Quality Factor (Qes) | 0.638 |
| Total Quality Factor (Qts) | 0.586 |
| Equivalent Air Volume to Cms (Vas) | 5.382L |
| Force Factor (BL) | 14.784 N/A |
| Mass of Diaphragm/Coil (Mms) | 124.235 g |
| Sound Pressure Level (SPL) | 82 dB |
Description
Feel the Euphoria with the EWX BLACKOUT SERIES—bass that moves you!
Introducing the EWX BLACKOUT SERIES by Euphoria, the ultimate subwoofer engineered to elevate your audio experience to new heights. Designed to optimize SPL performance, this 8-inch marvel is not just a subwoofer; it's a revolution in sound. With a blacked-out cosmetic design and high excursion multi-layer foam surround, the EWXB8D2 is optimized for high-output bass, delivering powerful, deep lows that you can feel. Equipped with a high-temperature voice coil and high-grade low-carbon steel top and bottom plates, this subwoofer is built to last. The 1.5” high roll foam surround and large gauge push button speaker terminals ensure seamless integration into your setup. With a dual 2Ω voice coil, a robust 120 oz. magnet, and a max power of 1500 watts, the EWX BLACKOUT SERIES is designed to deliver unparalleled performance. Whether you're a bass enthusiast or a professional audiophile, feel the euphoria and let the music move you like never before.
Introducing the EWX BLACKOUT SERIES by Euphoria, the ultimate subwoofer engineered to elevate your audio experience to new heights. Designed to optimize SPL performance, this 8-inch marvel is not just a subwoofer; it's a revolution in sound. With a blacked-out cosmetic design and high excursion multi-layer foam surround, the EWXB8D2 is optimized for high-output bass, delivering powerful, deep lows that you can feel. Equipped with a high-temperature voice coil and high-grade low-carbon steel top and bottom plates, this subwoofer is built to last. The 1.5” high roll foam surround and large gauge push button speaker terminals ensure seamless integration into your setup. With a dual 2Ω voice coil, a robust 120 oz. magnet, and a max power of 1500 watts, the EWX BLACKOUT SERIES is designed to deliver unparalleled performance. Whether you're a bass enthusiast or a professional audiophile, feel the euphoria and let the music move you like never before.
Product Manual
