EWXB15D4 : 15" Dual 4-Ohm Subwoofer Black Out Edition
EWXB15D4 : 15" Dual 4-Ohm Subwoofer Black Out Edition
Regular price
$549.95 USD
Regular price
Sale price
$549.95 USD
Unit price
per
people are viewing this right now
SKU:8.12E+11
Couldn't load pickup availability
EWXB15D4 : 15" Dual 4-Ohm Subwoofer Black Out Edition
Regular price
$549.95 USD
Regular price
Sale price
$549.95 USD
Unit price
per
Features
Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double stitched foam surround along with the die-cast aluminum vented basket allows for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.
- High-Temperature Voice Coil
- 120 oz. Ceramic Ferrite Magnet ( EWX8D2/8D4 Only )
- 145 oz. Ceramic Ferrite Magnet
- High-Grade Low Carbon Steel Top & Bottom Plate
- Design to optimize SPL Performance
- 1.5” High Roll Foam Surround
- Large Gauge Push Button Speaker Terminals
- Available in Dual 2Ω or Dual 4Ω Voice Coil
Specifications

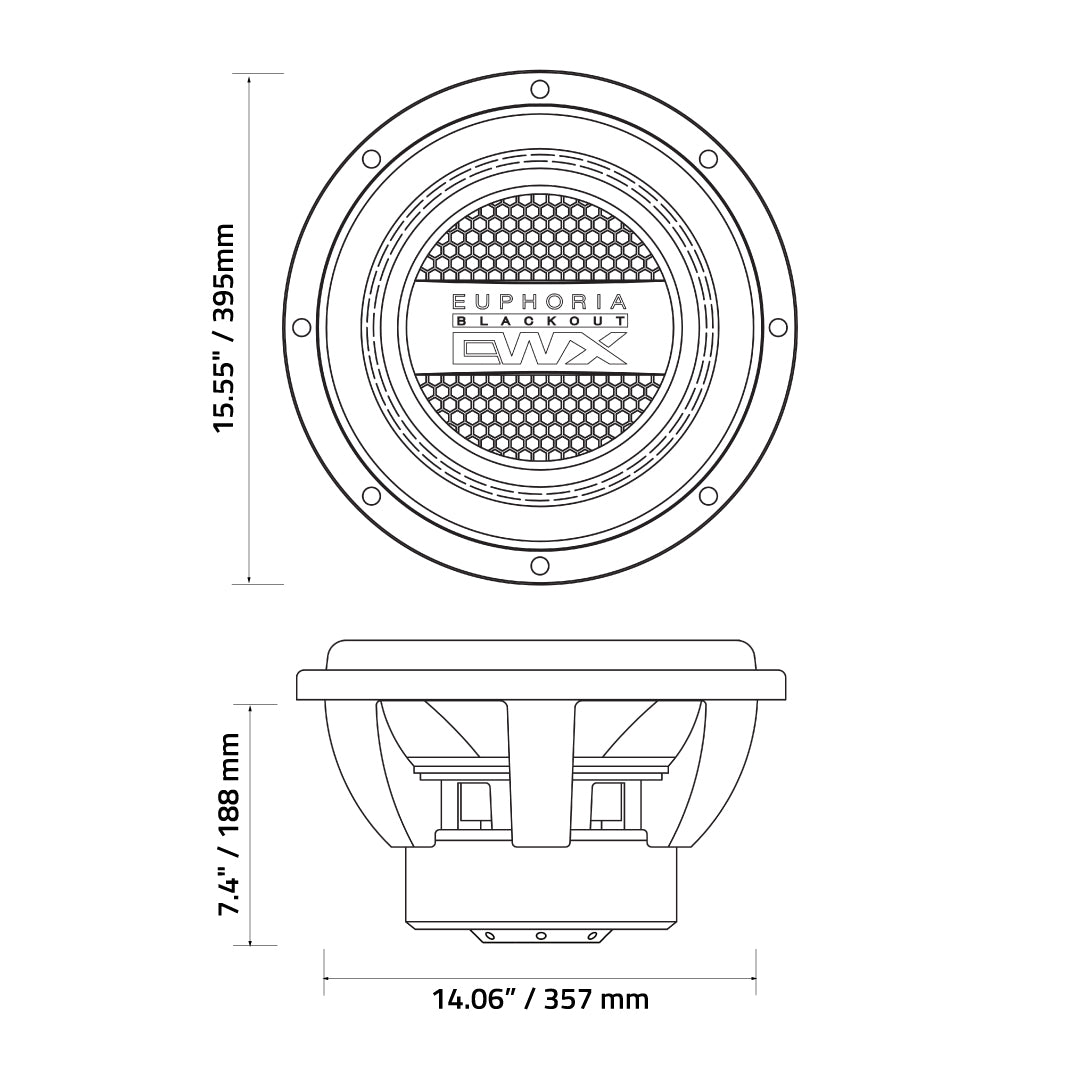

| Structure | 15” (395 mm) |
|---|---|
| Max Power | 2500 Watts |
| Nominal Power | 1000 Watts |
| Impedance | Dual 4Ω Voice Coil |
| PARAMETERS | |
| Resonant Frequency (fs) | 35.804 Hz |
| D.C. Voice Coil Resistance (Re) | 3.6Ω + 3.6Ω |
| Mechanical Quality Factor (Qms) | 4.840 |
| Electrical Quality Factor (Qes) | 1.038 |
| Total Quality Factor (Qts) | 0.854 |
| Equivalent Air Volume to Cms (Vas) | 48.650L |
| Force Factor (BL) | 25.017 N/A |
| Mass of Diaphragm/Coil (Mms) | 400.037 g |
| Sound Pressure Level (SPL) | 85.2 dB |
Description
Feel the Euphoria with every beat!
Introducing the Euphoria EWXB15D4: 15in Subwoofer Black Edition, part of the prestigious EWX BLACKOUT SERIES. This subwoofer isn't just a speaker; it's a statement. Designed to optimize SPL performance with its blacked-out cosmetic design and high excursion multi-layer foam surround, it delivers high-output bass like never before. The high-temperature voice coil and high-grade low carbon steel top and bottom plates ensure durability and performance, while the 1.5” high roll foam surround and large gauge push button speaker terminals make installation a breeze. With a dual 4Ω voice coil, 145 oz. magnet, and a staggering max power of 2500 Watts, this subwoofer is built for those who crave powerful, heart-thumping sound. Experience the elegance and power of Euphoria, and let every beat take you to new heights.
Introducing the Euphoria EWXB15D4: 15in Subwoofer Black Edition, part of the prestigious EWX BLACKOUT SERIES. This subwoofer isn't just a speaker; it's a statement. Designed to optimize SPL performance with its blacked-out cosmetic design and high excursion multi-layer foam surround, it delivers high-output bass like never before. The high-temperature voice coil and high-grade low carbon steel top and bottom plates ensure durability and performance, while the 1.5” high roll foam surround and large gauge push button speaker terminals make installation a breeze. With a dual 4Ω voice coil, 145 oz. magnet, and a staggering max power of 2500 Watts, this subwoofer is built for those who crave powerful, heart-thumping sound. Experience the elegance and power of Euphoria, and let every beat take you to new heights.
