EWXB15D2 : 15" Dual 2-Ohm Subwoofer Black Out Edition
EWXB15D2 : 15" Dual 2-Ohm Subwoofer Black Out Edition
Regular price
$549.95 USD
Regular price
Sale price
$549.95 USD
Unit price
per
people are viewing this right now
SKU:8.12E+11
Couldn't load pickup availability
EWXB15D2 : 15" Dual 2-Ohm Subwoofer Black Out Edition
Regular price
$549.95 USD
Regular price
Sale price
$549.95 USD
Unit price
per
Features
Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double stitched foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.
- High Temperature Voice Coil
- 120 oz. Ceramic Ferrite Magnet ( EWX8D2/8D4 Only )
- 145 oz. Ceramic Ferrite Magnet
- High Grade Low Carbon Steel Top & Bottom Plate
- Design to optimize SPL Performance
- 1.5” High Roll Foam Surround
- Large Gauge Push Button Speaker Terminals
- Available in Dual 2Ω or Dual 4Ω Voice Coil
Specifications

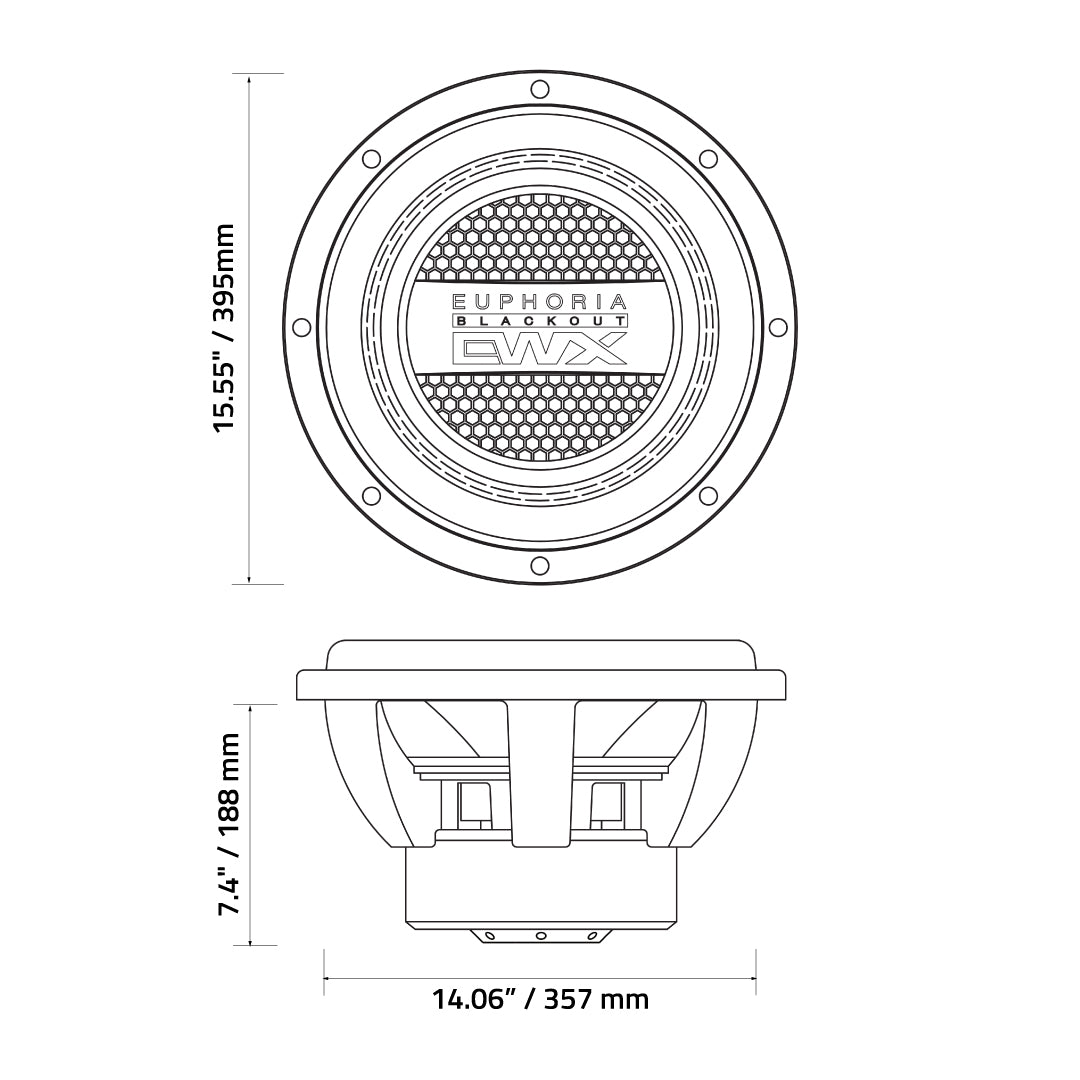

| Structure | 15” (395 mm) |
|---|---|
| Max Power | 2500 Watts |
| Nominal Power | 1000 Watts |
| Impedance | Dual 2Ω Voice Coil |
| PARAMETERS | |
| Resonant Frequency (fs) | 31.755 Hz |
| D.C. Voice Coil Resistance (Re) | 3.6Ω + 3.6Ω |
| Mechanical Quality Factor (Qms) | 6.830 |
| Electrical Quality Factor (Qes) | 0.864 |
| Total Quality Factor (Qts) | 0.767 |
| Equivalent Air Volume to Cms (Vas) | 76.674L |
| Force Factor (BL) | 16.411 N/A |
| Mass of Diaphragm/Coil (Mms) | 324.126 g |
| Sound Pressure Level (SPL) | 86.4 dB |
Description
Experience the Euphoria of Unmatched Bass Power!
Introducing the Euphoria EWXB15D2: 15in Subwoofer Black Out Edition Dual 2 Ohm – where power meets elegance in the world of sound. Designed to optimize SPL performance, this subwoofer is an audiophile's dream, boasting a high-excursion multi-layer foam surround and a high-temperature voice coil for exceptional durability and performance. The sleek blacked-out cosmetic design not only looks stunning but ensures high-output bass that's both deep and powerful. Featuring a 1.5” high roll foam surround and large gauge push button speaker terminals, this subwoofer is built for easy installation and superior sound quality. With a magnet size of 145 oz. and a max power of 2500 watts, it delivers an explosive audio experience. The dual 2Ω voice coil and high-grade low-carbon steel top and bottom plate further enhance its reliability and performance. Elevate your sound system with the Euphoria EWXB15D2 and feel the difference in every beat.
Introducing the Euphoria EWXB15D2: 15in Subwoofer Black Out Edition Dual 2 Ohm – where power meets elegance in the world of sound. Designed to optimize SPL performance, this subwoofer is an audiophile's dream, boasting a high-excursion multi-layer foam surround and a high-temperature voice coil for exceptional durability and performance. The sleek blacked-out cosmetic design not only looks stunning but ensures high-output bass that's both deep and powerful. Featuring a 1.5” high roll foam surround and large gauge push button speaker terminals, this subwoofer is built for easy installation and superior sound quality. With a magnet size of 145 oz. and a max power of 2500 watts, it delivers an explosive audio experience. The dual 2Ω voice coil and high-grade low-carbon steel top and bottom plate further enhance its reliability and performance. Elevate your sound system with the Euphoria EWXB15D2 and feel the difference in every beat.
