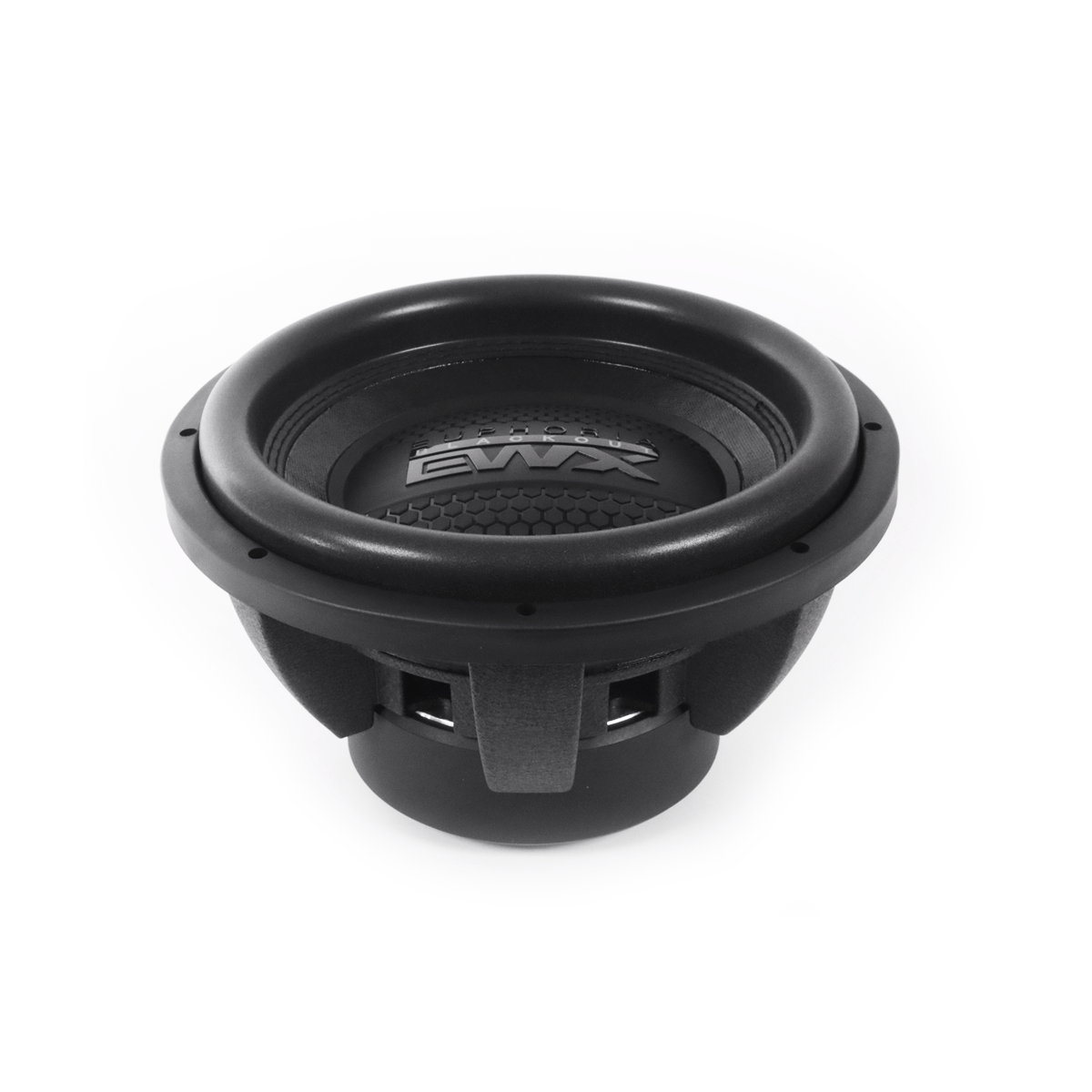

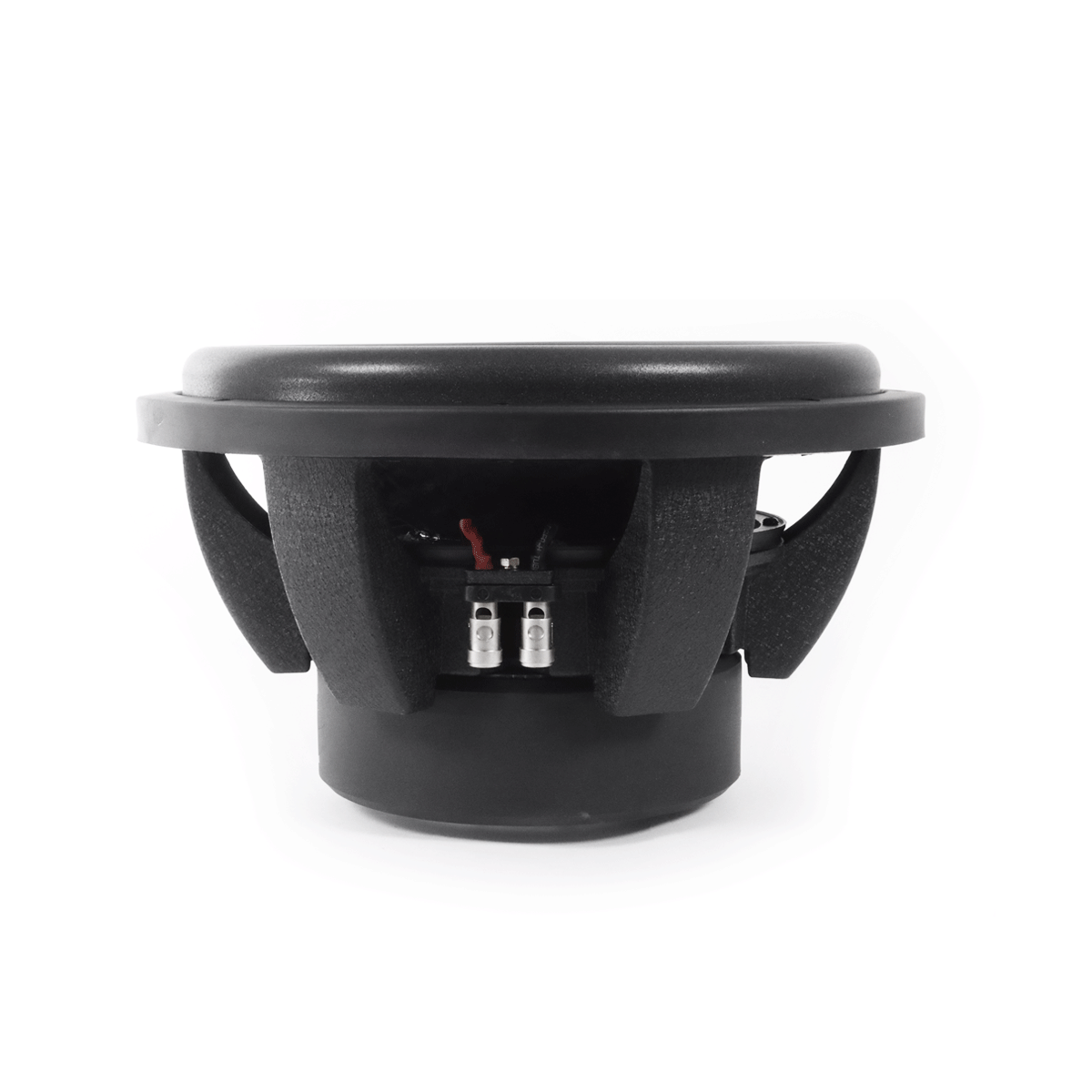

EWXB12D2 : 12" Dual 2-Ohm Subwoofer Black Out Edition
EWXB12D2 : 12" Dual 2-Ohm Subwoofer Black Out Edition
Regular price
$399.95 USD
Regular price
Sale price
$399.95 USD
Unit price
per
people are viewing this right now
SKU:8.12E+11
Couldn't load pickup availability
EWXB12D2 : 12" Dual 2-Ohm Subwoofer Black Out Edition
Regular price
$399.95 USD
Regular price
Sale price
$399.95 USD
Unit price
per
Features
Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double stitched foam surround along with the die-cast aluminum vented basket allows for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.
- High-Temperature Voice Coil
- 120 oz. Ceramic Ferrite Magnet ( EWX8D2/8D4 Only )
- 145 oz. Ceramic Ferrite Magnet
- High-Grade Low Carbon Steel Top & Bottom Plate
- Design to optimize SPL Performance
- 1.5” High Roll Foam Surround
- Large Gauge Push Button Speaker Terminals
- Available in Dual 2Ω or Dual 4Ω Voice Coil
Specifications
| Structure | 12” (322 mm) |
|---|---|
| Max Power | 2500 Watts |
| Nominal Power | 1000 Watts |
| Impedance | Dual 2Ω Voice Coil |
| PARAMETERS | |
| Resonant Frequency (fs) | 36.979 Hz |
| D.C. Voice Coil Resistance (Re) | 3.6Ω + 3.6Ω |
| Mechanical Quality Factor (Qms) | 7.201 |
| Electrical Quality Factor (Qes) | 0.808 |
| Total Quality Factor (Qts) | 0.726 |
| Equivalent Air Volume to Cms (Vas) | 26.505L |
| Force Factor (BL) | 17.018 N/A |
| Mass of Diaphragm/Coil (Mms) | 279.748 g |
| Sound Pressure Level (SPL) | 84.1 dB |
Description
Feel the power of every beat with the EWXB12D2 Subwoofer from Euphoria's Blackout Series!
Get ready to experience bass like never before with the Euphoria EWXB12D2 12-inch Subwoofer Black Out Edition. Engineered to optimize SPL performance, this subwoofer features a high-excursion multi-layer foam surround and high-temperature voice coil to ensure top-notch sound quality and durability. With a sleek blacked-out cosmetic design, it not only sounds amazing but looks incredible too. Push your audio limits with its dual 2Ω voice coil and 2500 watts of max power. The large gauge push button speaker terminals and high-grade low carbon steel top and bottom plates provide unmatched reliability and performance. Whether you’re a car audio enthusiast or a professional, the EWXB12D2 is built to deliver high output bass that will transform your listening experience. Elevate your sound system with the Euphoria EWXB12D2 – where power meets precision.
Get ready to experience bass like never before with the Euphoria EWXB12D2 12-inch Subwoofer Black Out Edition. Engineered to optimize SPL performance, this subwoofer features a high-excursion multi-layer foam surround and high-temperature voice coil to ensure top-notch sound quality and durability. With a sleek blacked-out cosmetic design, it not only sounds amazing but looks incredible too. Push your audio limits with its dual 2Ω voice coil and 2500 watts of max power. The large gauge push button speaker terminals and high-grade low carbon steel top and bottom plates provide unmatched reliability and performance. Whether you’re a car audio enthusiast or a professional, the EWXB12D2 is built to deliver high output bass that will transform your listening experience. Elevate your sound system with the Euphoria EWXB12D2 – where power meets precision.
