EW5 10D4 : 10" Dual 4-Ohm Subwoofer
EW5 10D4 : 10" Dual 4-Ohm Subwoofer
Regular price
$299.95 USD
Regular price
Sale price
$299.95 USD
Unit price
per
people are viewing this right now
SKU:8.10E+11
Couldn't load pickup availability
EW5 10D4 : 10" Dual 4-Ohm Subwoofer
Regular price
$299.95 USD
Regular price
Sale price
$299.95 USD
Unit price
per
Features
- High Temp Voice Coil Wire Around Vented KSV Former
- Radial Basket Vents for Voice Coil Cooling
- Large Gauge Push Button Speaker Wire Terminals
- Proprietary Injection Molded Polypropylene Cone
- High Excursion Butyl Rubber Surround
- Extended Linear Roll Progressive Dampener
- Stealth Gasket for Custom Mounting Applications
- Propriotarty Protective Magnet Band
- Anti- Resonance Heavy Gauge Solid Steal Frame
- Optimized Drive Motor for Acurate Frequency Response
Specifications

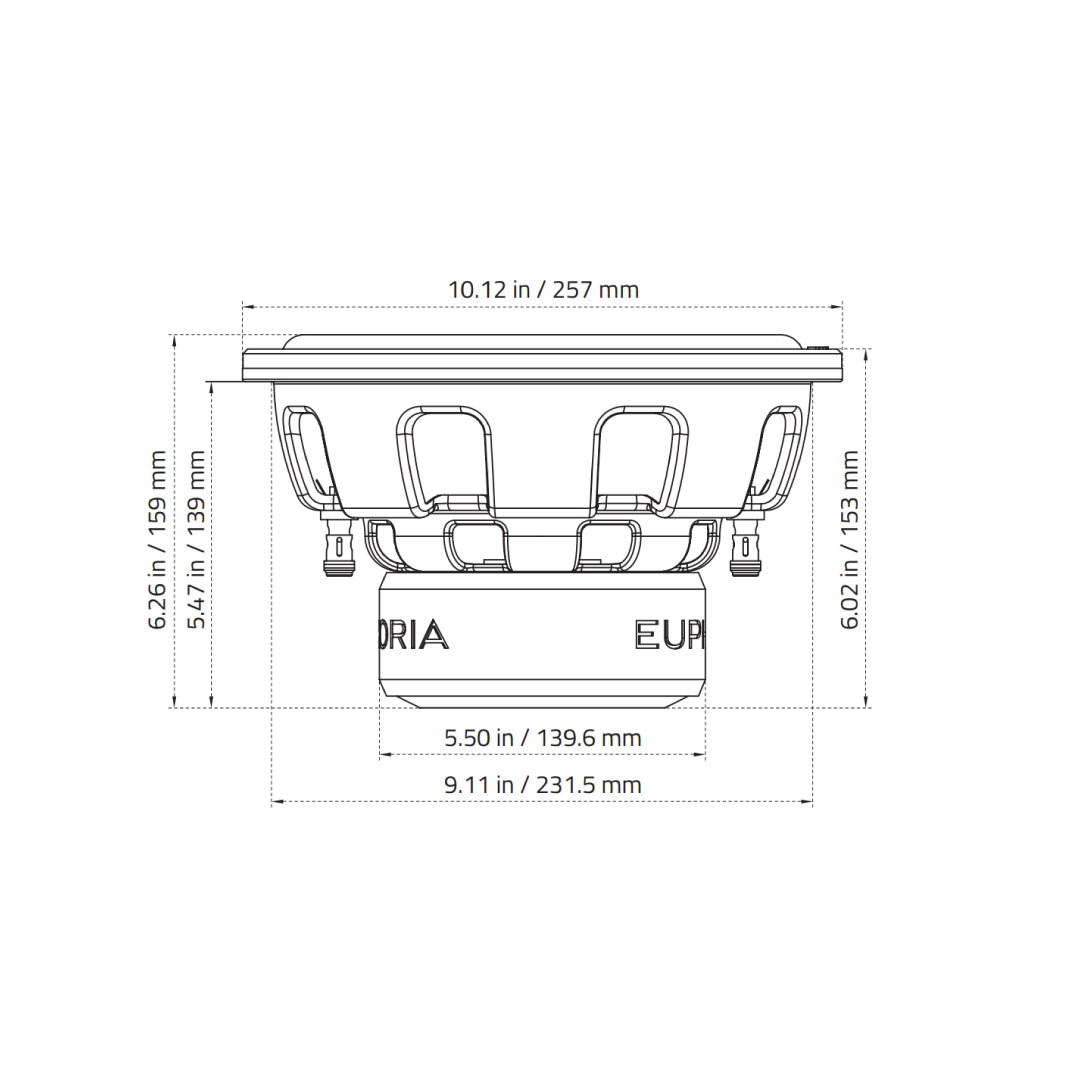

| Structure | 10” (25.4 cm) |
|---|---|
| Max Power | 1000 Watts |
| Nominal Power | 350 Watts |
| Impedance | Dual 4Ω Voice Coil |
| PARAMETERS | |
| Free Air Resonance (Fo) | 34.025 Hz |
| D.C. Voice Coil Resistance (Re) | 3.34Ω x 2 |
| Mechanical Quality Factor (Qms) | 12.235 |
| Electrical Quality Factor (Qes) | 0.388 |
| Total Quality Factor (Qts) | 0.376 |
| Equivalent Air Volume to Cms (Vas) | 39.885 L |
| Force Factor (BL) | 18.546 TM |
| Mass of Diaphragm/Coil (Mms) | 93.450 g |
| Sound Pressure Level (SPL) | 88 dB |
Description
Feel the Beat, Live the Euphoria.
Unleash the true power of your music with the Euphoria EW5 10D4: 10in 4 Ohm DVC Subwoofer. Featuring a powerful motor structure that maximizes bass output while keeping every note tight and accurate, this subwoofer will make you feel like you're hearing your favorite songs for the first time. The Stealth Lock Gasket ensures seamless integration into any setup, while the radial venting for voice coil cooling extends the durability for endless musical performances. Ideal for both vented and sealed applications, the EW5 subwoofers provide versatility and unmatched sound quality. With dual 4Ω voice coils and a maximum power of 1000 watts, the Euphoria EW5 Series Subwoofers are built to elevate your auditory experience. Get ready to feel the beat and live in the moment with Euphoria.
Unleash the true power of your music with the Euphoria EW5 10D4: 10in 4 Ohm DVC Subwoofer. Featuring a powerful motor structure that maximizes bass output while keeping every note tight and accurate, this subwoofer will make you feel like you're hearing your favorite songs for the first time. The Stealth Lock Gasket ensures seamless integration into any setup, while the radial venting for voice coil cooling extends the durability for endless musical performances. Ideal for both vented and sealed applications, the EW5 subwoofers provide versatility and unmatched sound quality. With dual 4Ω voice coils and a maximum power of 1000 watts, the Euphoria EW5 Series Subwoofers are built to elevate your auditory experience. Get ready to feel the beat and live in the moment with Euphoria.
