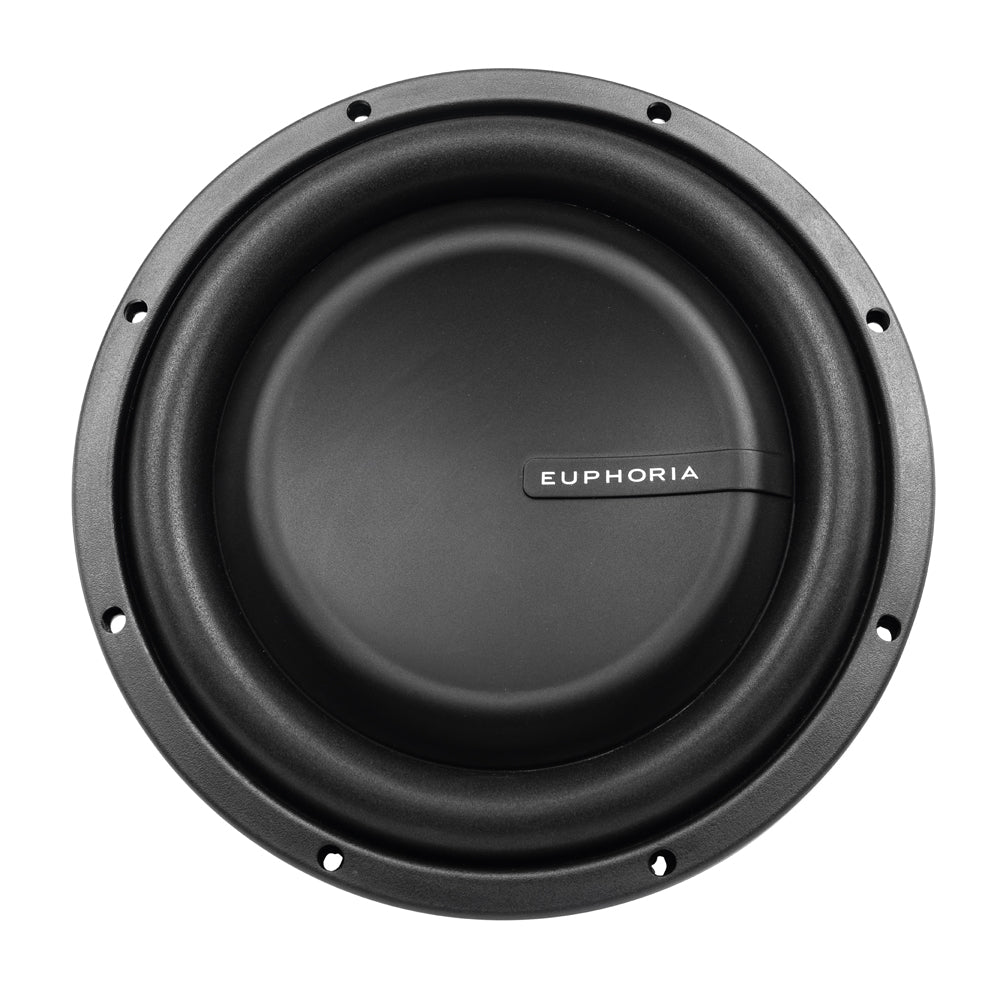

ESW10D4 : 10" DUAL 4 OHM SUBWOOFER

Features

• High Temp Voice Coil Wire Around Vented KSV Former
• Radial Basket Vents for Voice Coil Cooling
• Push Button Speaker Wire Terminals
• Proprietary Injection Molded Polypropylene Cone
• High Excursion Foam Surround
• Extended Linear Roll Progressive Dampener
• Anti- Resonance Stamp-Cast basket
• Optimized Motor for Low Frequency Response

Specifications

• Nominal Power Handling: 500 Watts
• Peak Power Handling: 1000 Watts
• Impedance: Dual 4Ω Voice Coil
• D.C. Voice Coil Resistance (Re): 6.650Ω
• Mechanical Quality Factor (Qms): 5.255
• Electrical Quality Factor (Qes): 0.637
• Total Quality Factor (Qts): 0.568
• Equivalent Air Volume (Vas):27.264m CuM
• Mass of Diaphragm/Coil (Mms): 130.016 g
• Moving Mass of Diaphgram (Mmd): 126.568 g
• Force Factor (BL): 16.845 TM
• Sound Pressure Level (SPL): 83.843 dB
• Free Air Resonance (Fo) 33.248 Hz
• Effective Diaphgram Area (Sd): 33.006m
• Compliance of Mechanical Suspension (Cms): 176.243 mm/N

DIMENSIONS

• Overall Diameter: 10.23"/ 260 mm
• Mounting Depth: 4.90"/ 124.7 mm
• Cutout Diameter: 9.05 "/230 mm
