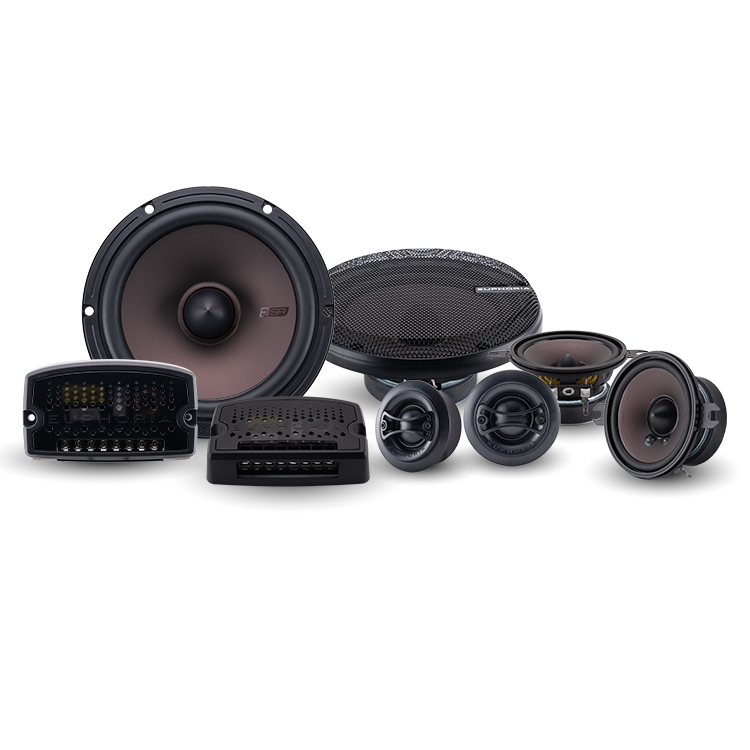

ESR653C : Reference 6.5" 3-way Component Loudspeaker

ESR653C : Reference 6.5" 3-way Component Loudspeaker
$399.98 USD
$0.00 USD $399.98 USD
Sale Sold out
people are viewing this right now
Size chart

SKU:8.10E+11
View Product details
product-img
ESR653C : Reference 6.5" 3-way Component Loudspeaker
$399.98 USD
$0.00 USD $399.98 USD

Features

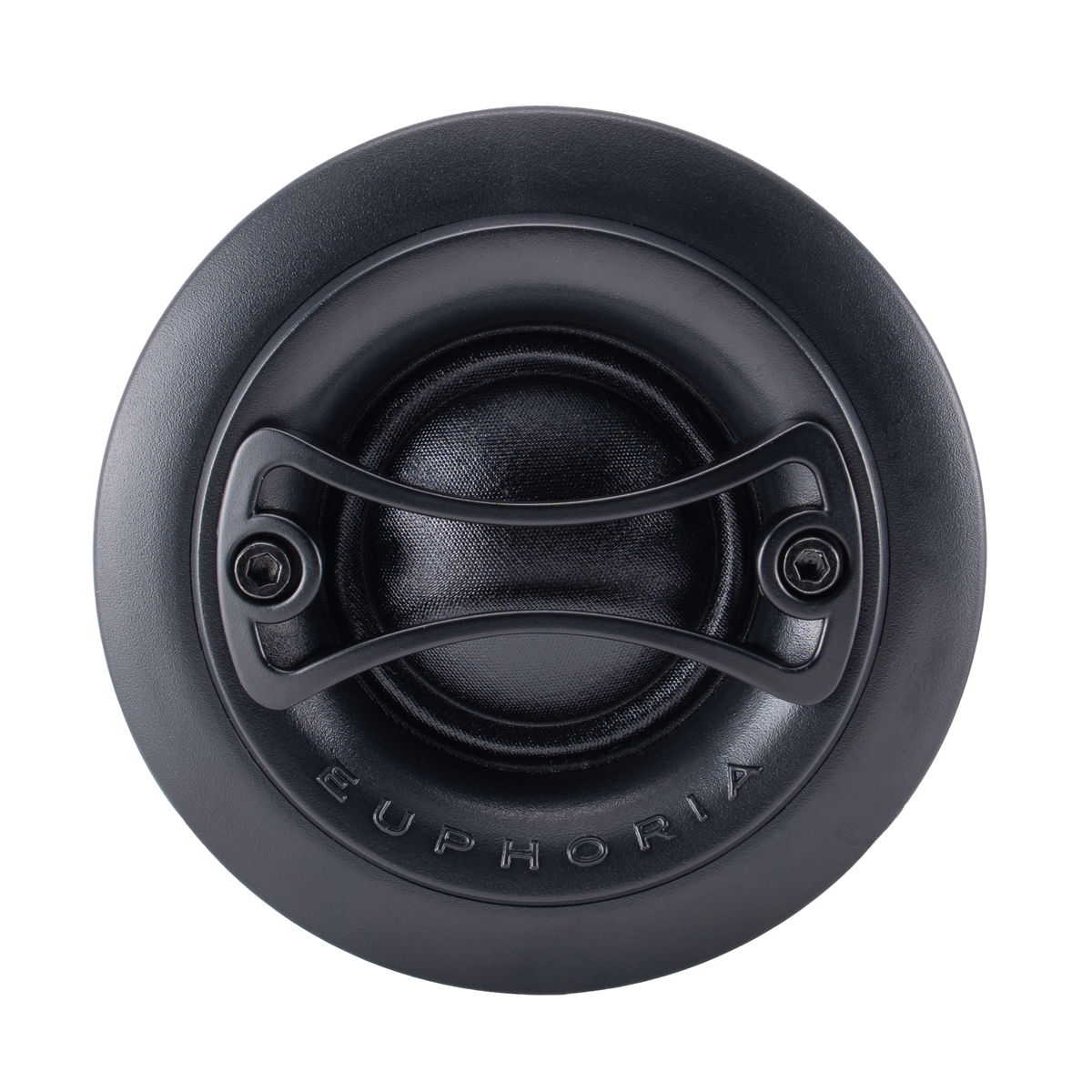

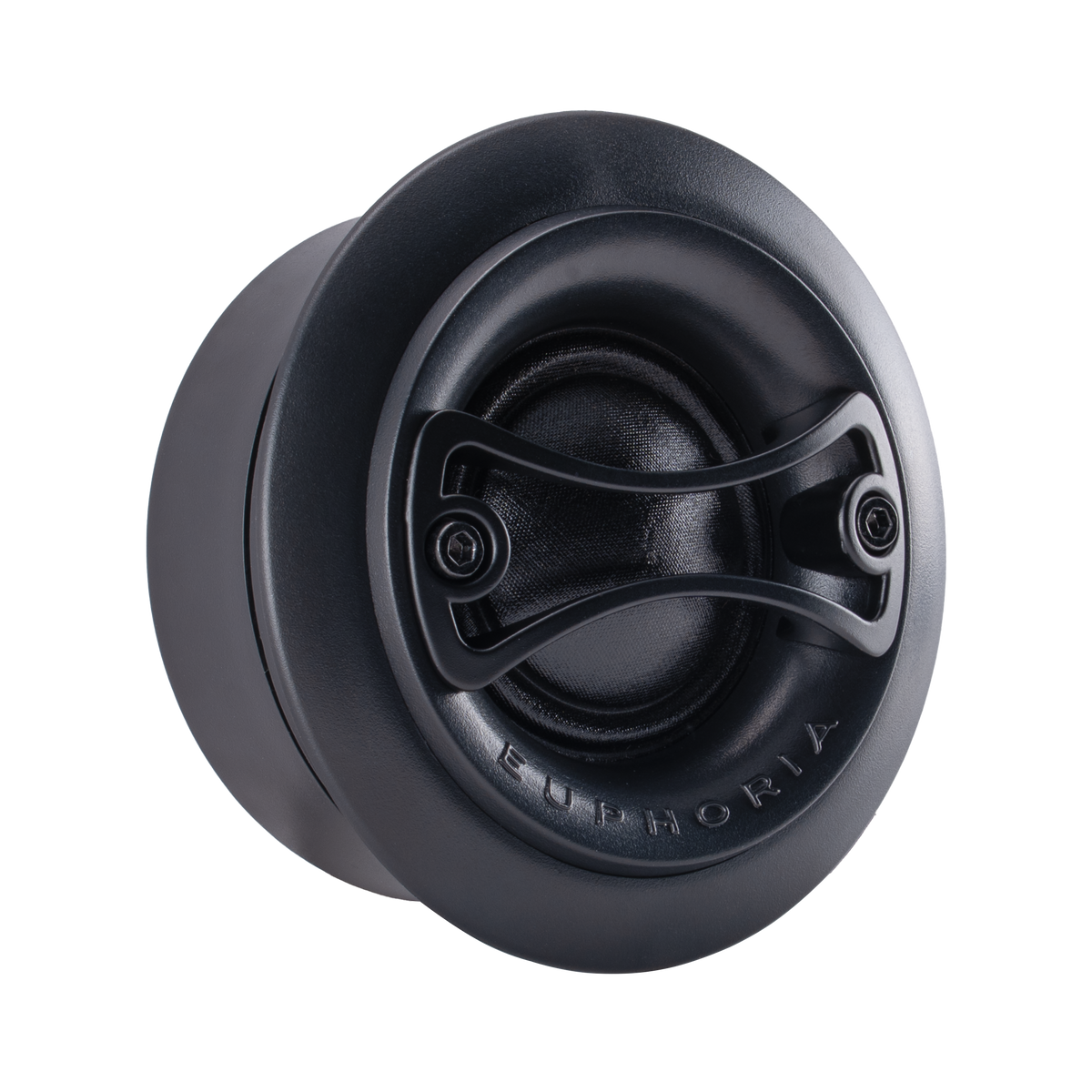

  • 1" Silk Dome Tweeter for smooth, detailed high frequencies
  • Versatile Mounting Options: Includes surface, angle, and flush mount accessories
  • 2.75" component midrange with wide bandwidth optimization
  • Injection-Molded PP Composite Cone with durable rubber surround for enhanced performance
  • 1.4" Oversized Midrange Voice Coil with improved thermal capacity for greater efficiency
  • Ferrite Oxide Magnet with an optimized motor structure for superior power handling
  • Stamp-Cast Steel Basket for enhanced durability and reduced resonance
  • Precision-Tuned 12dB Premium 2-Way External Crossover for seamless frequency distribution

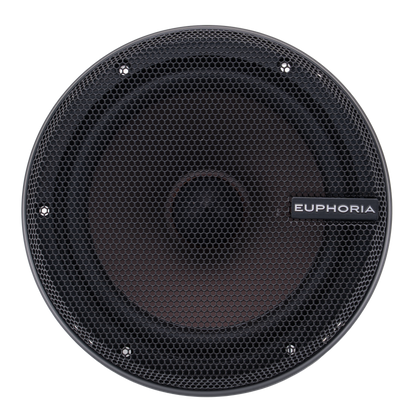

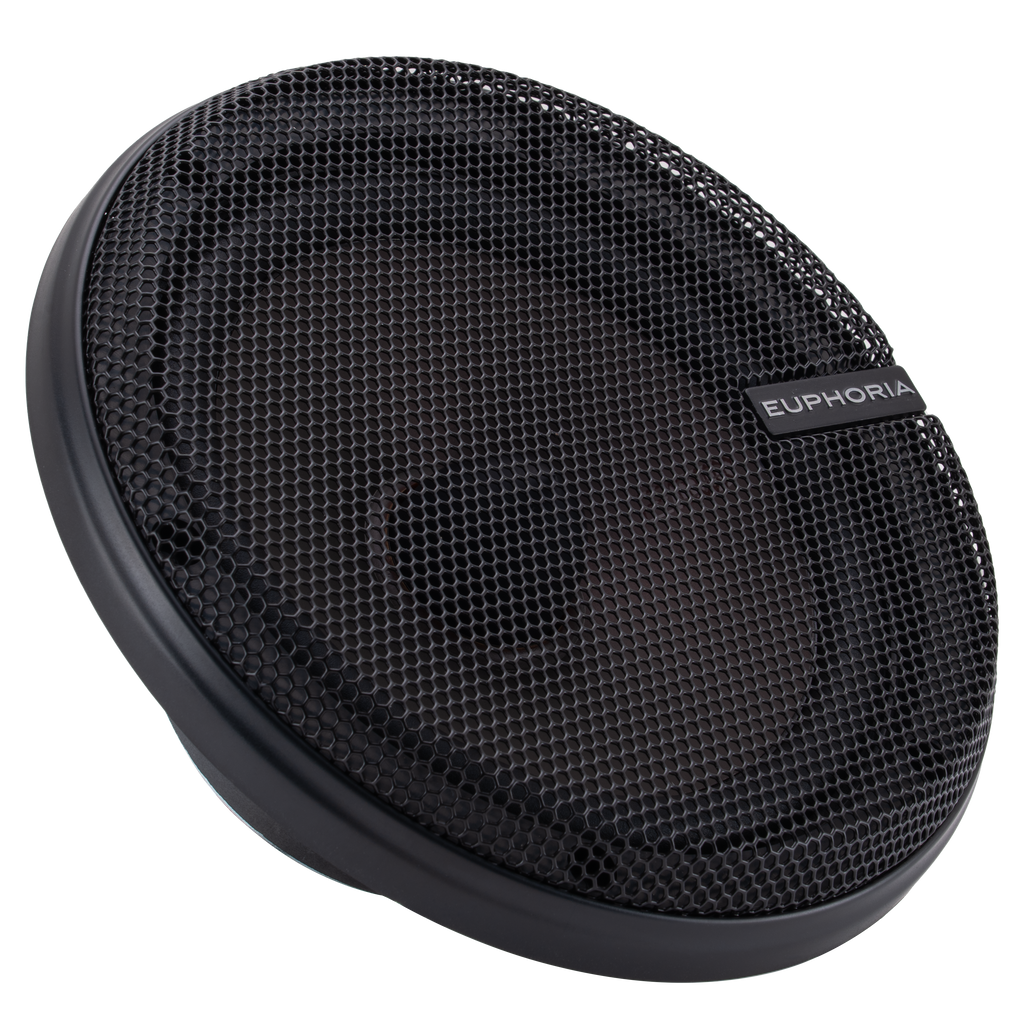

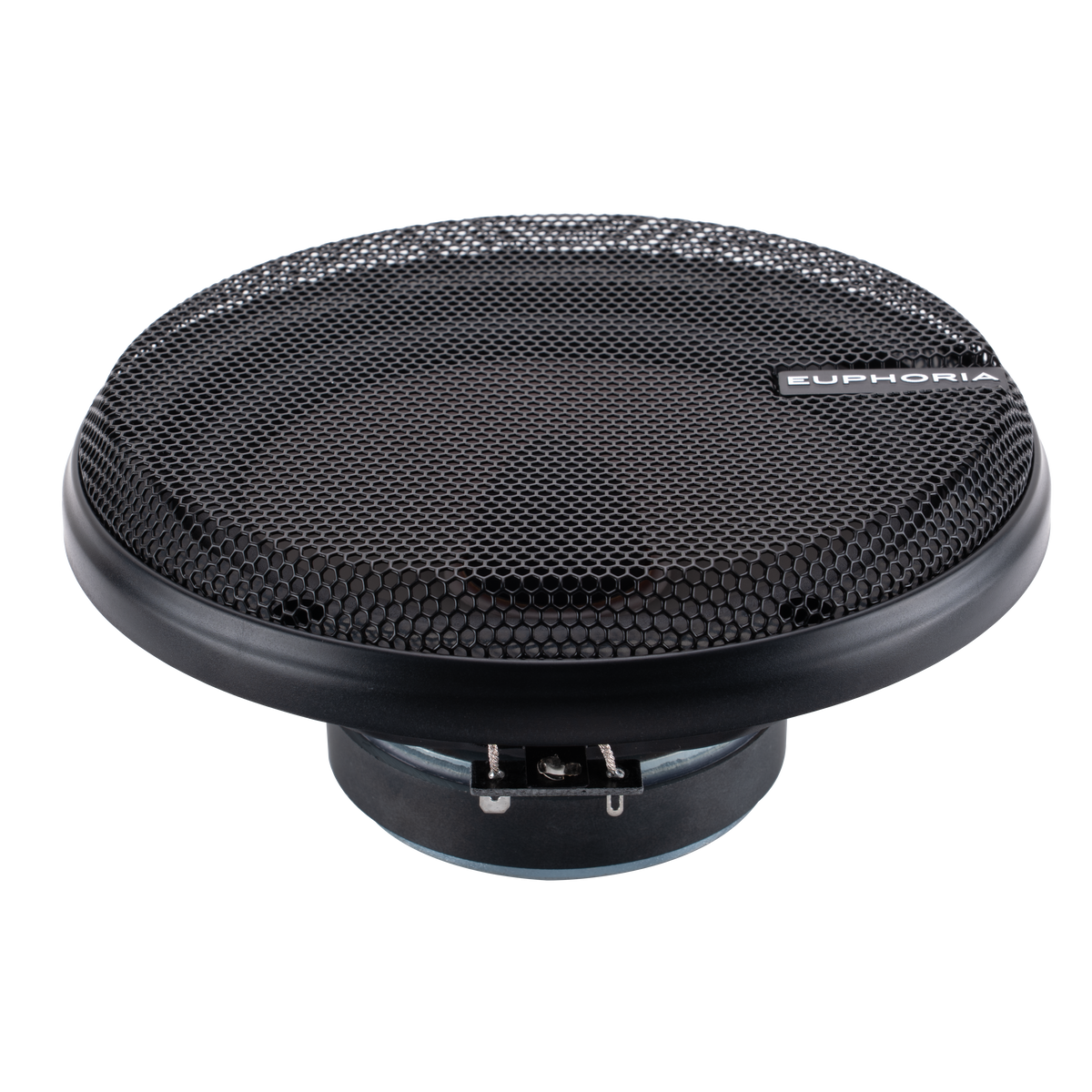

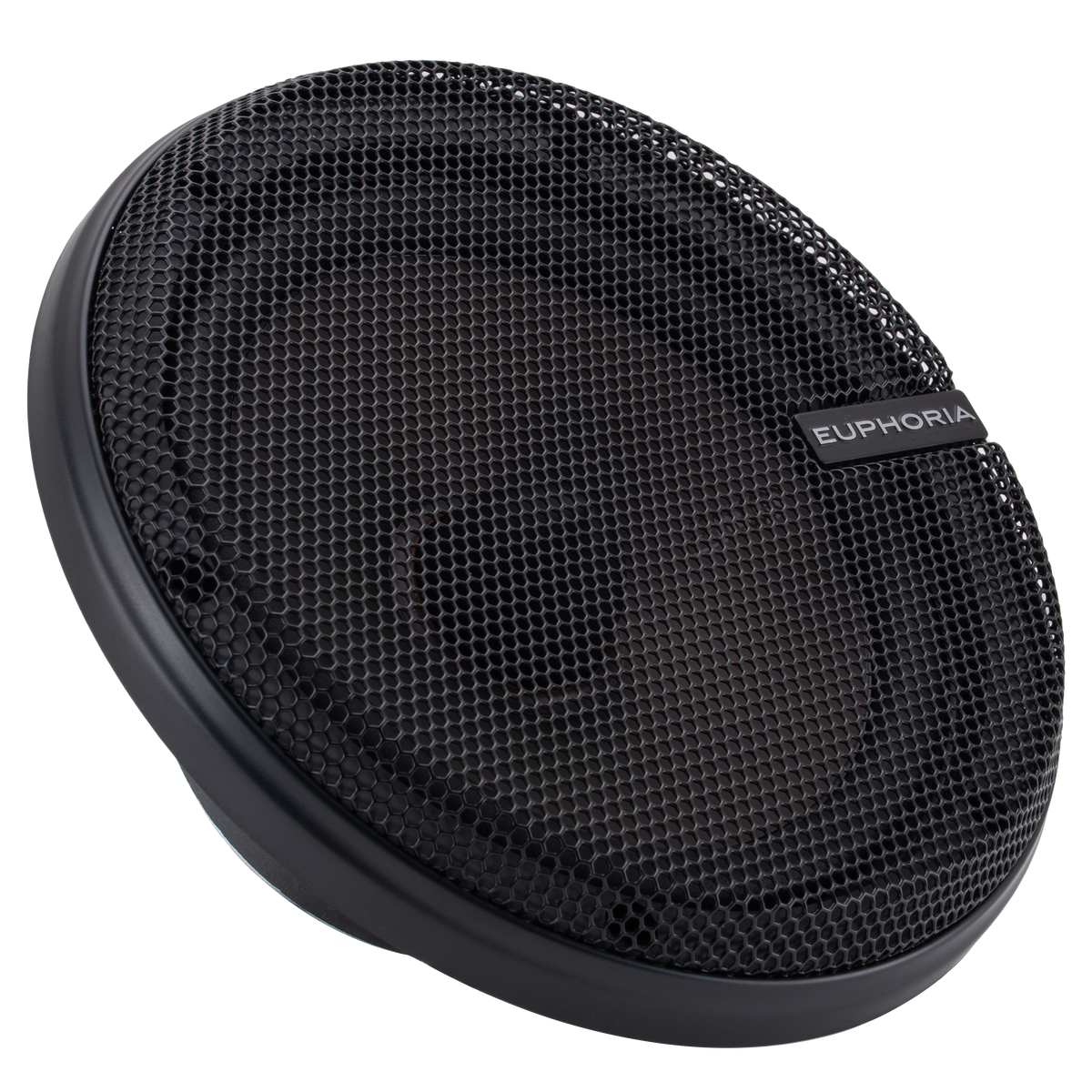

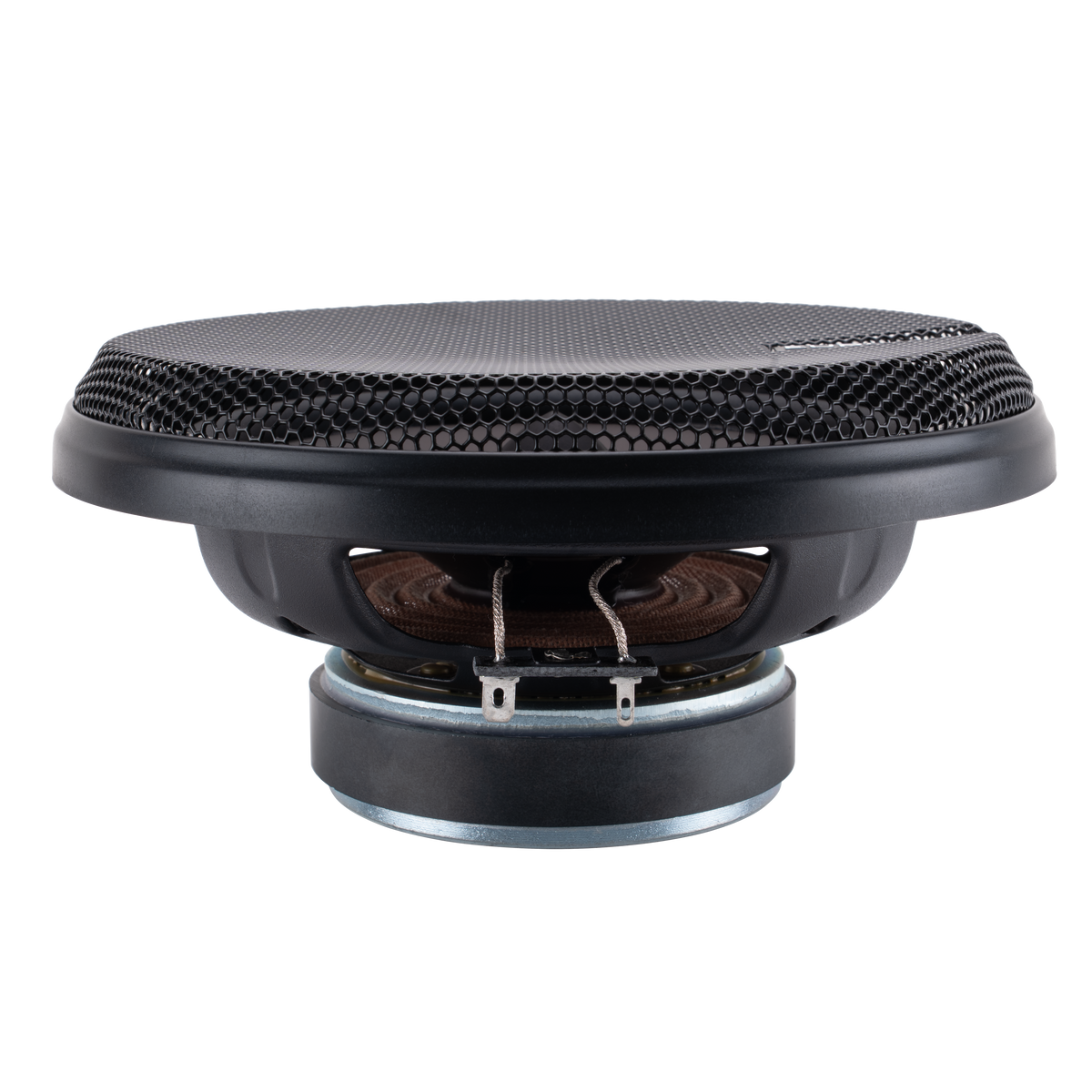

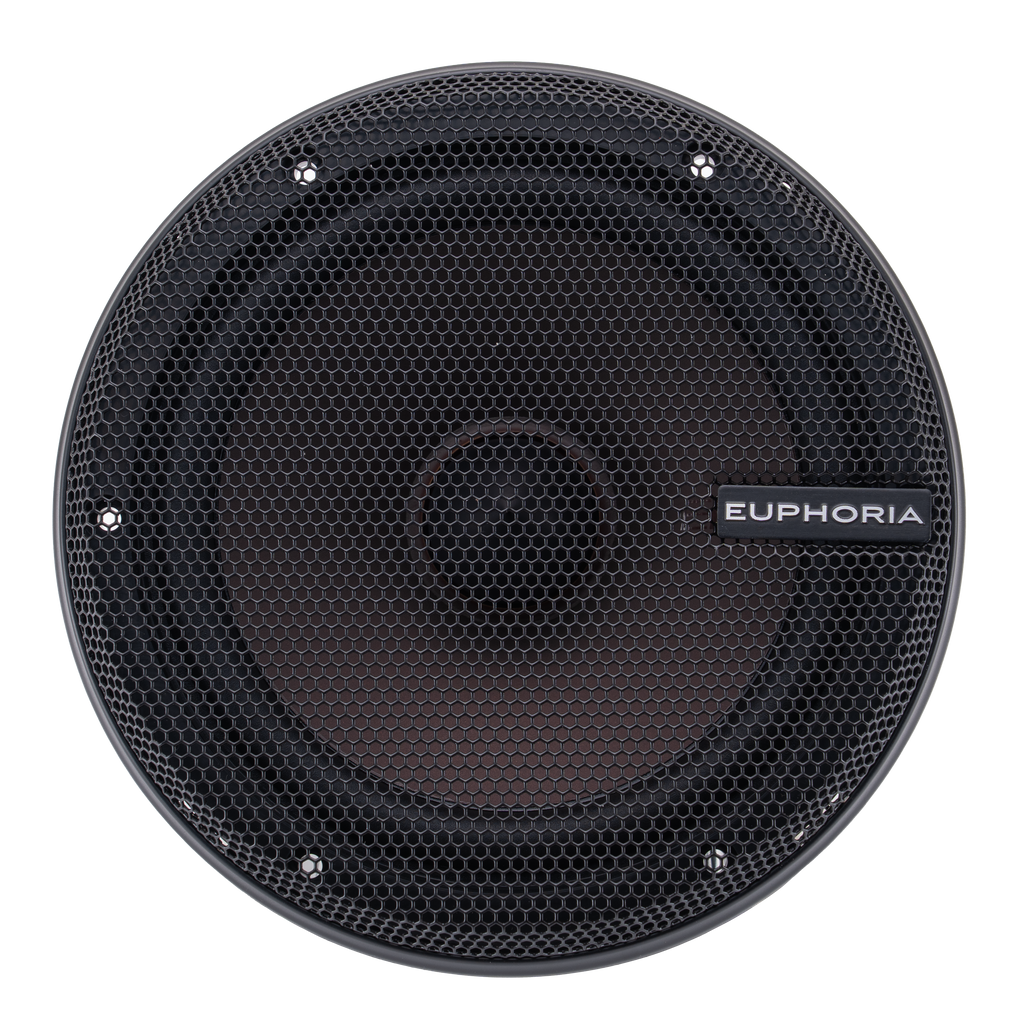

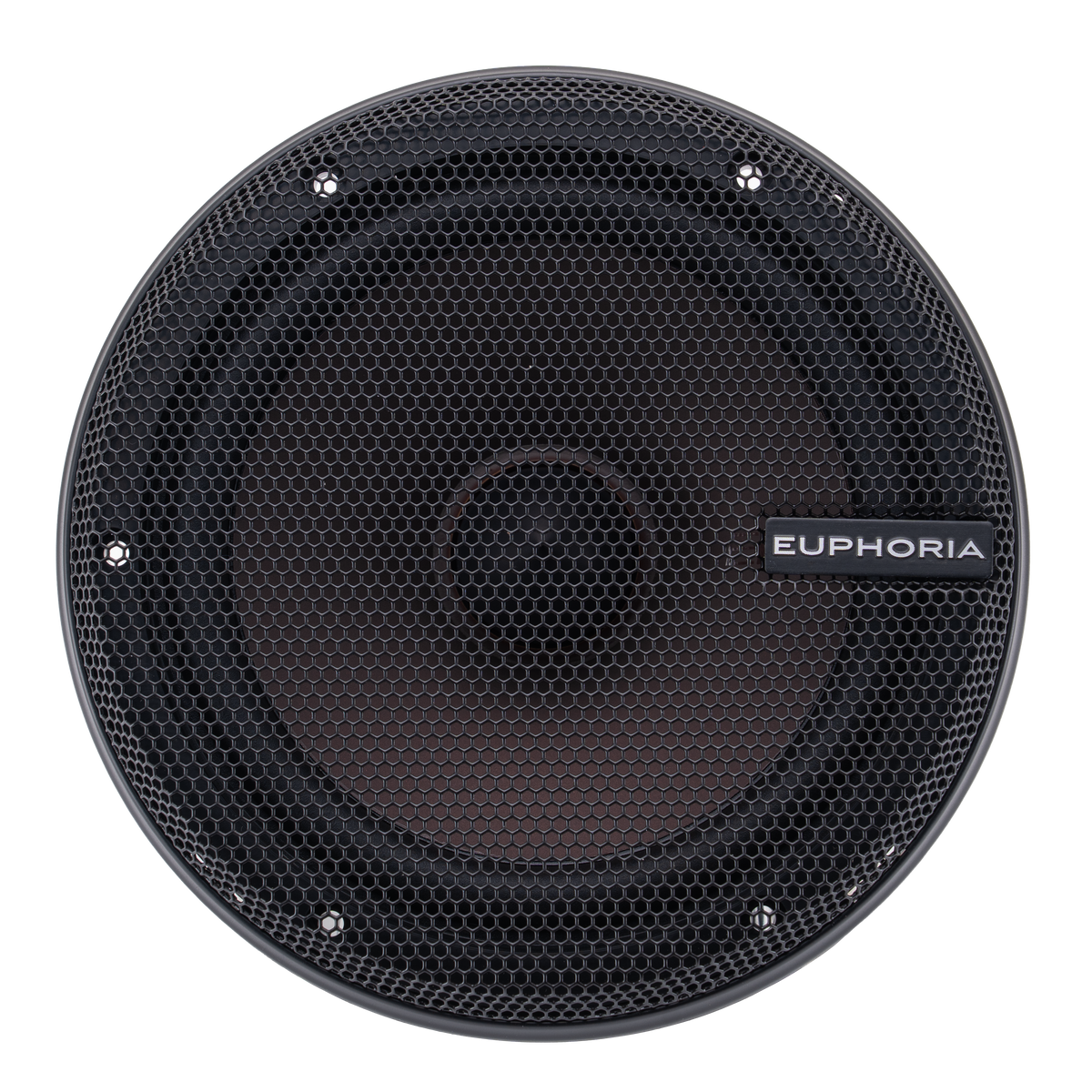

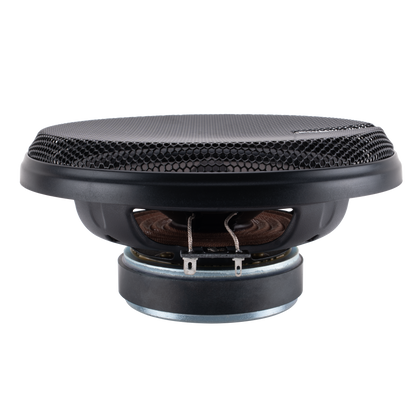

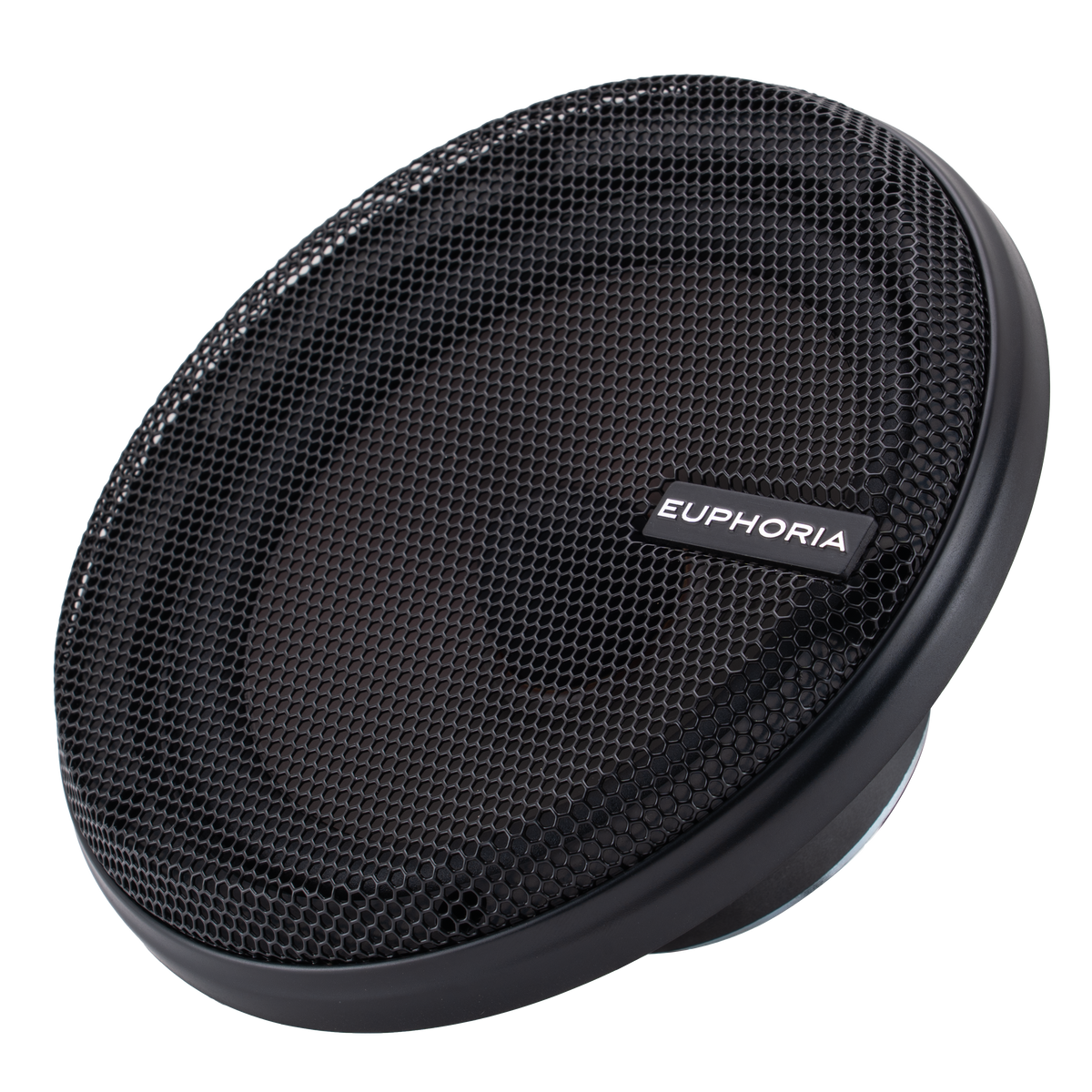

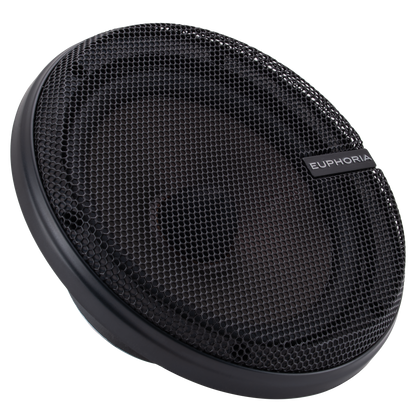

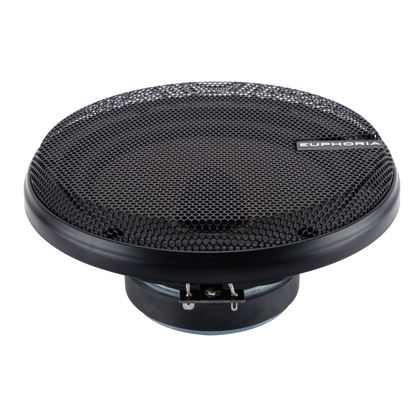

  • Protective Grill Included

 Hi-Fi Audio speakers are designed for high-resolution audio, delivering exceptional clarity and accuracy that closely matches the original studio recording

Specifications

Peak Power Handling: 350 Watts
Nominal Power Handling : 125 Watts
Frequency Response: 55Hz - 20KHz
Impedance:  4Ω
Sensitivity: 87.8 dB

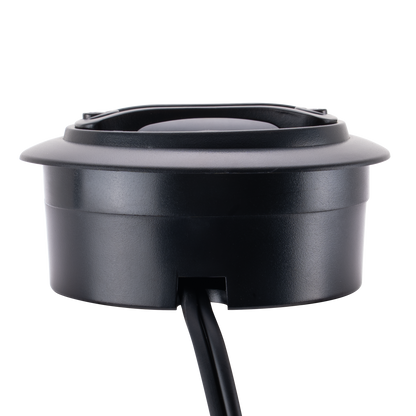

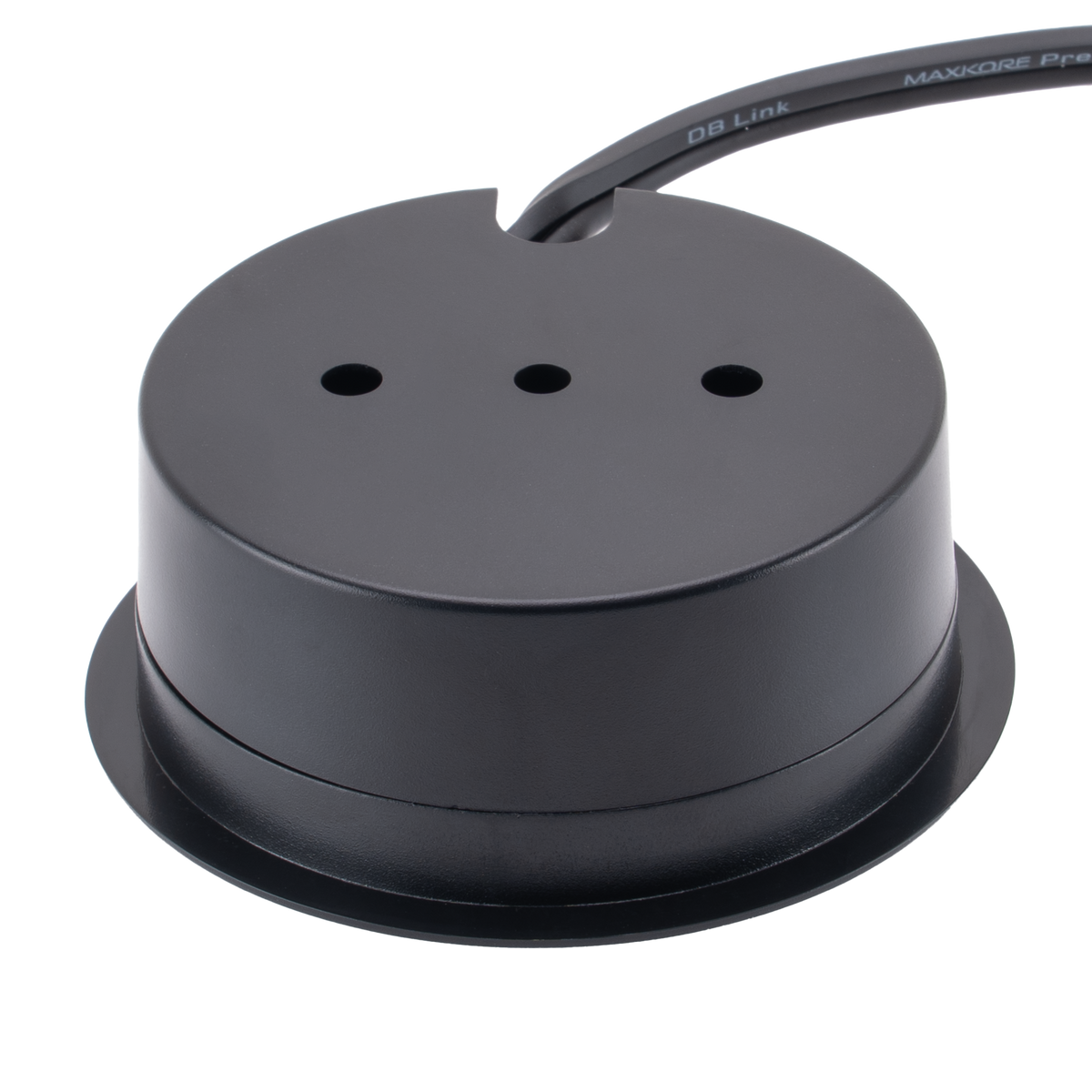

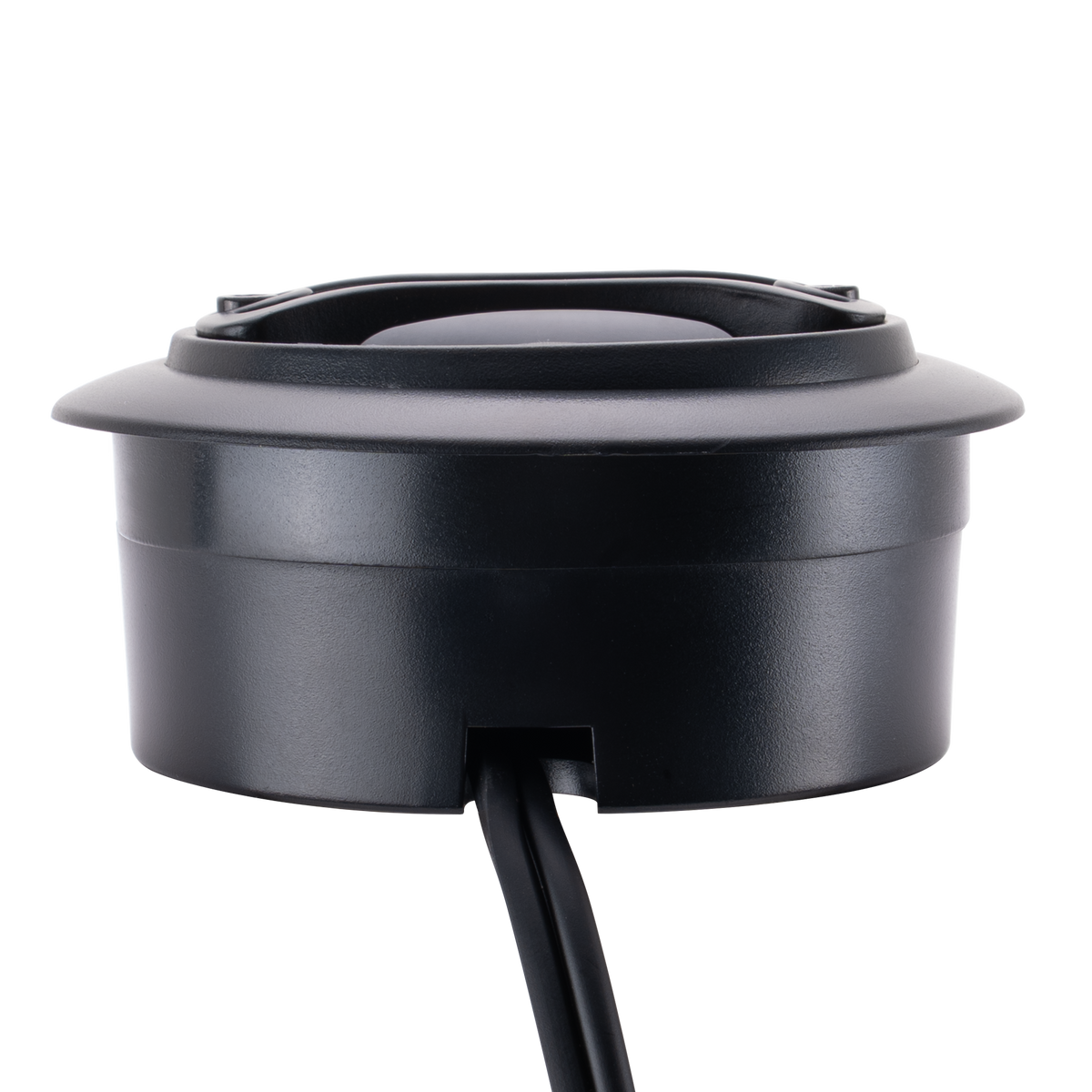

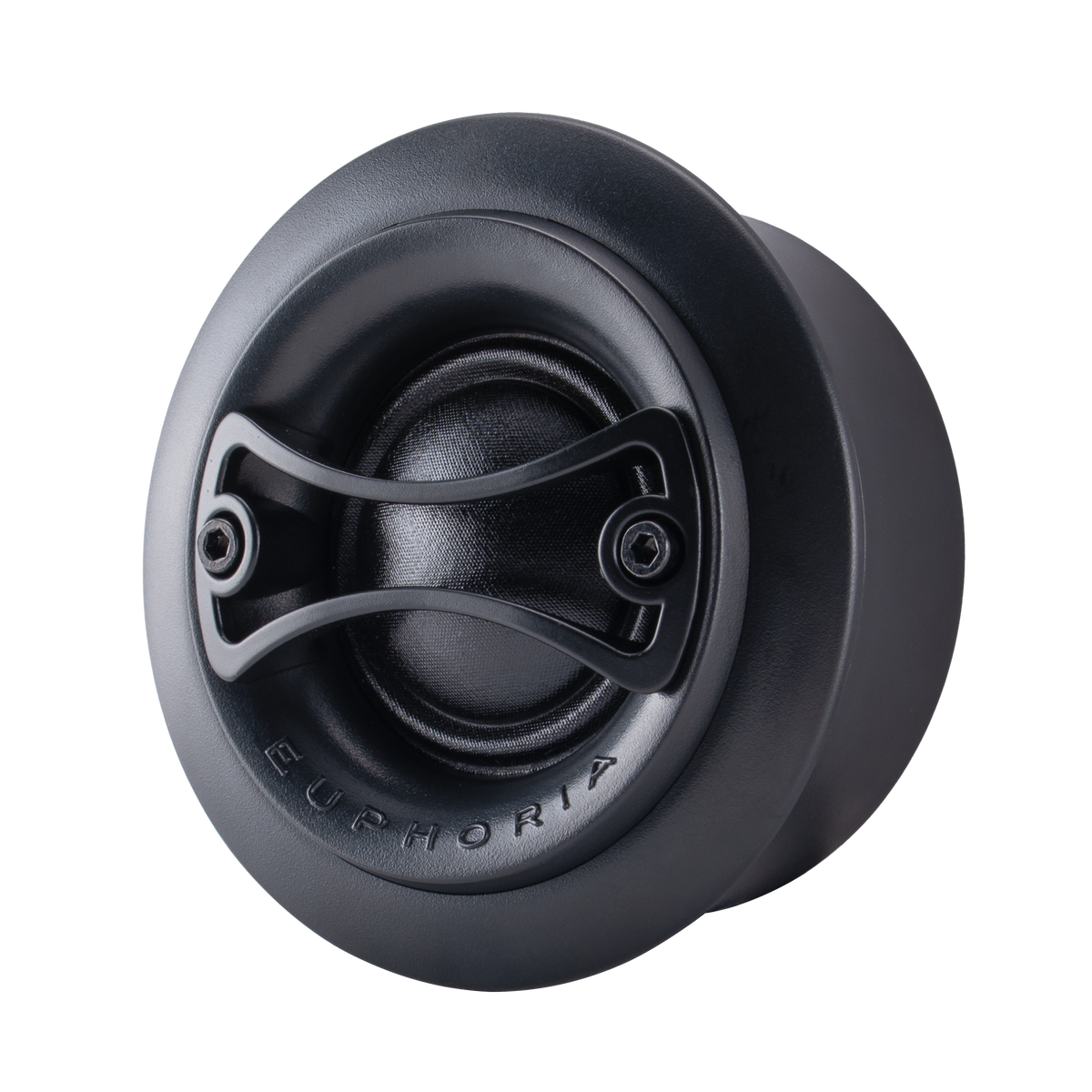

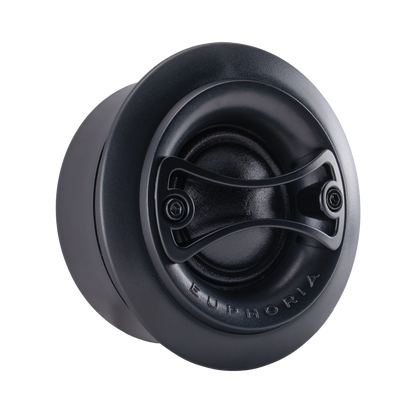

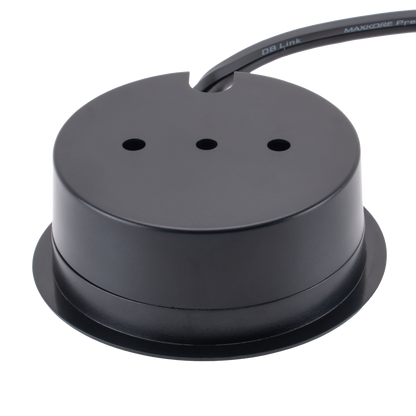

1" Tweeter Dimensions
Overall Diameter: 2.65"/  67.3 mm
Mounting Depth: 0.93"/ 23.6 mm
Cutout Diameter: 2.33"/ 59.3 mm

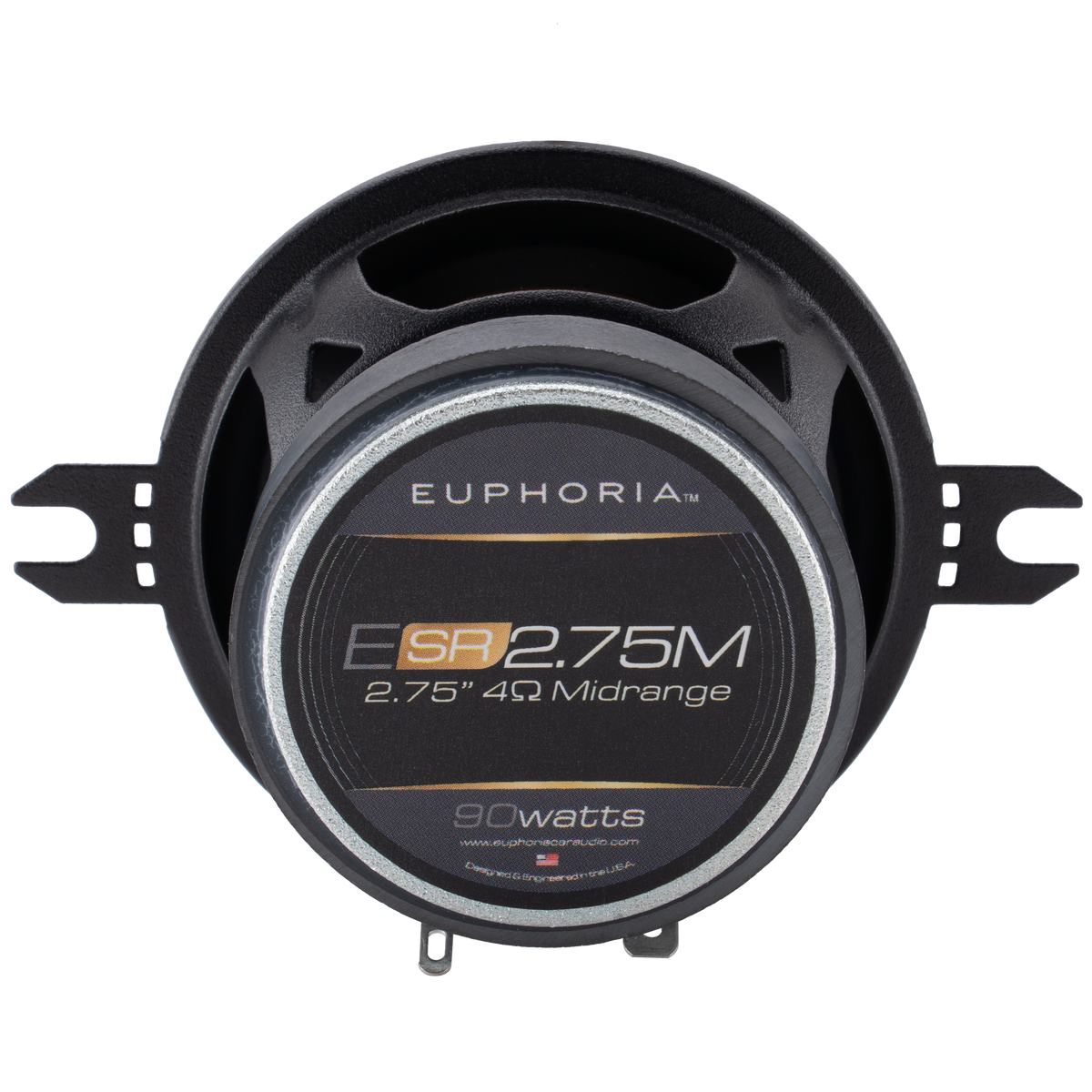

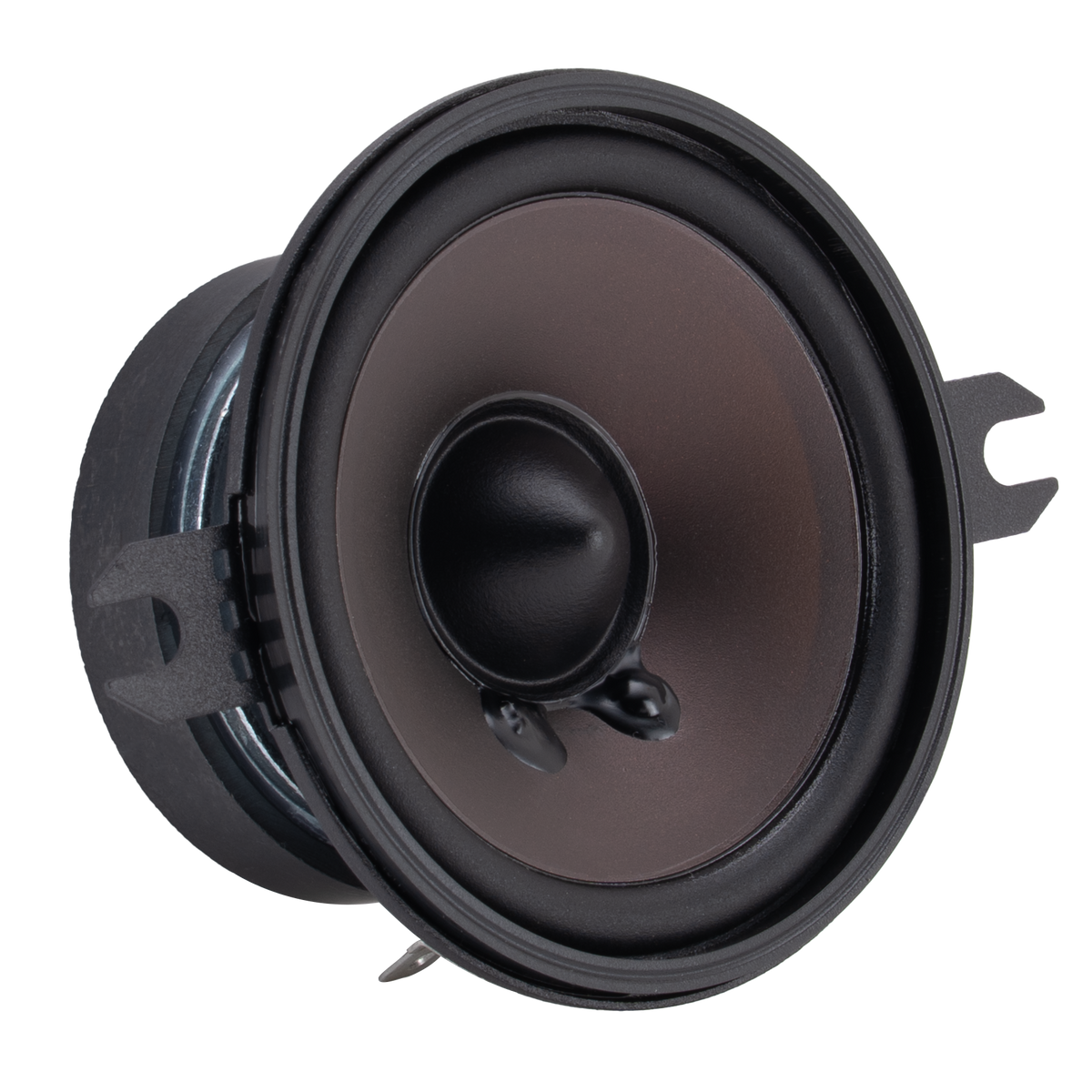

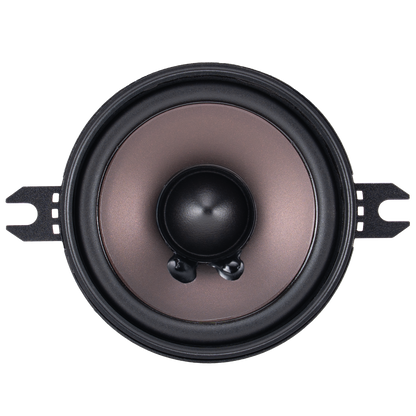

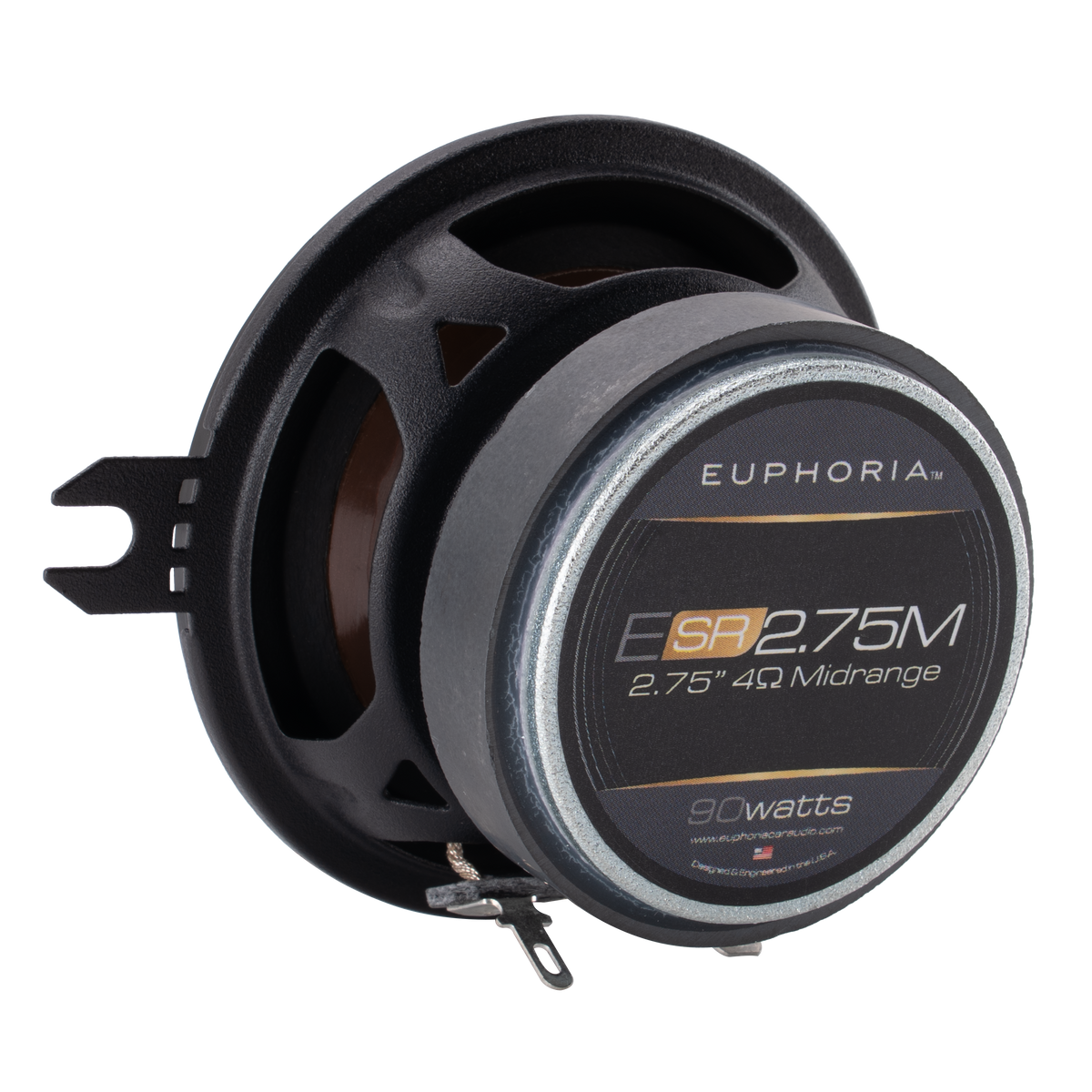

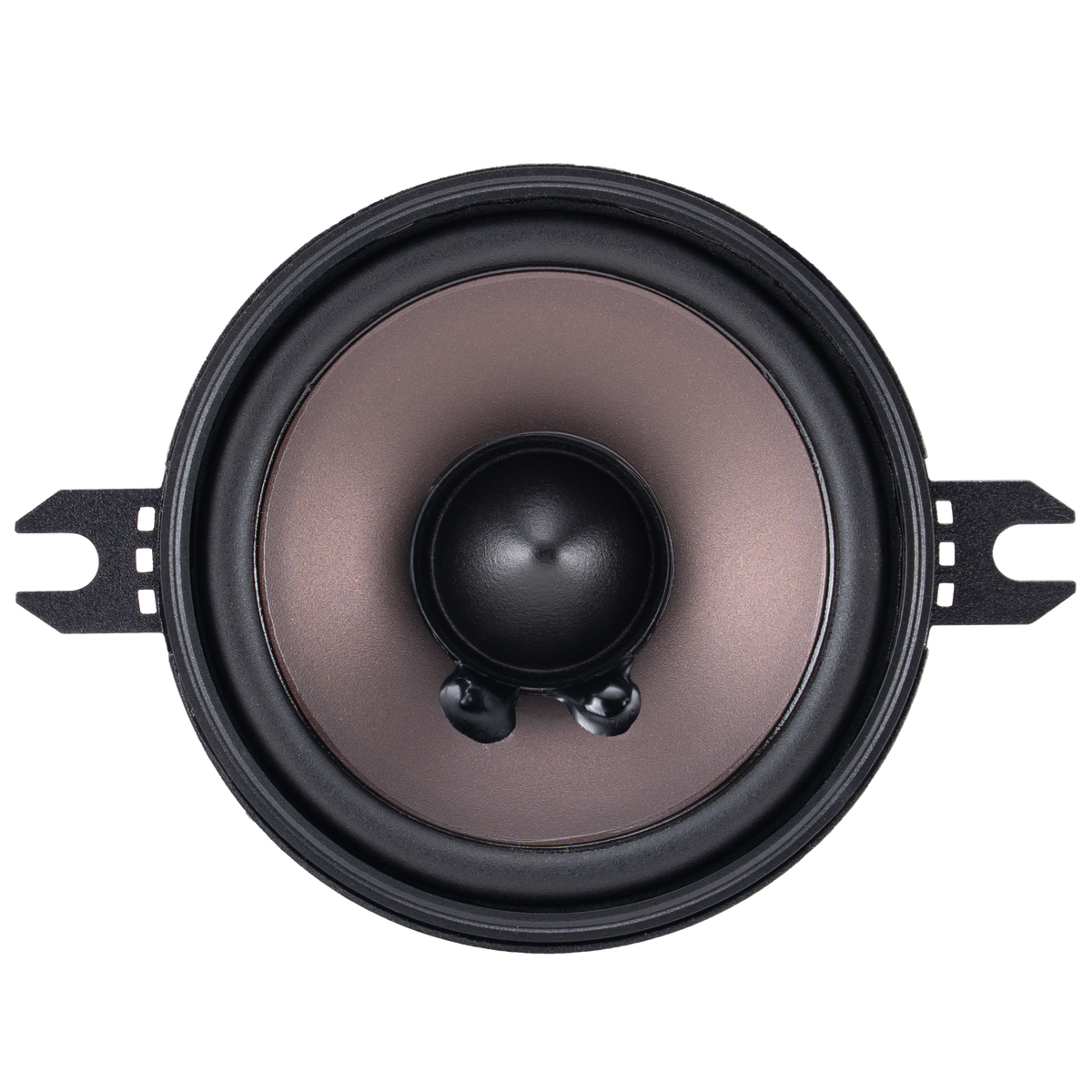

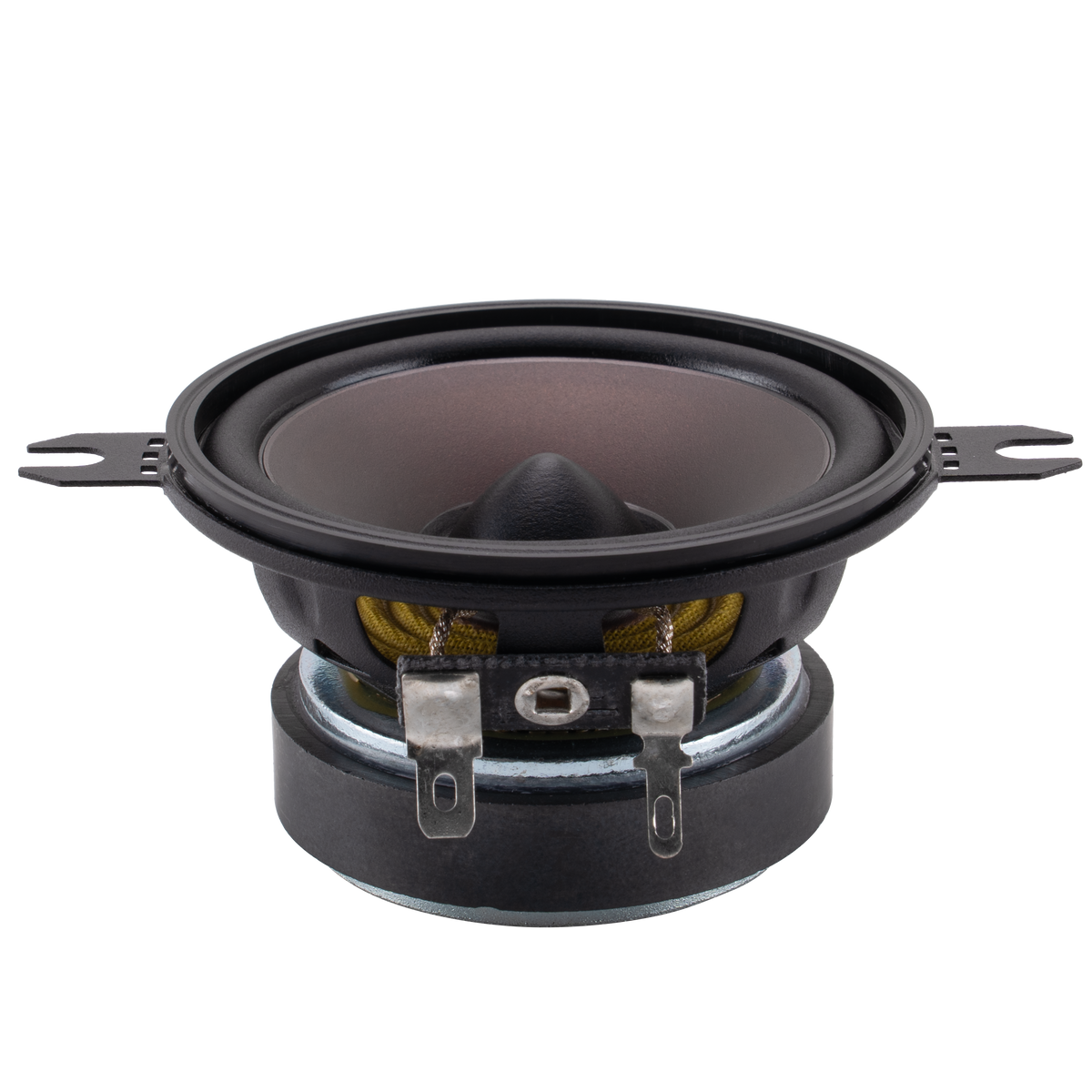

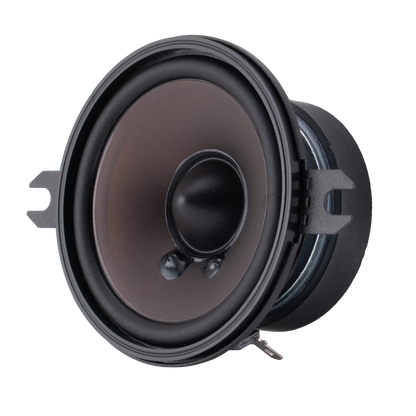

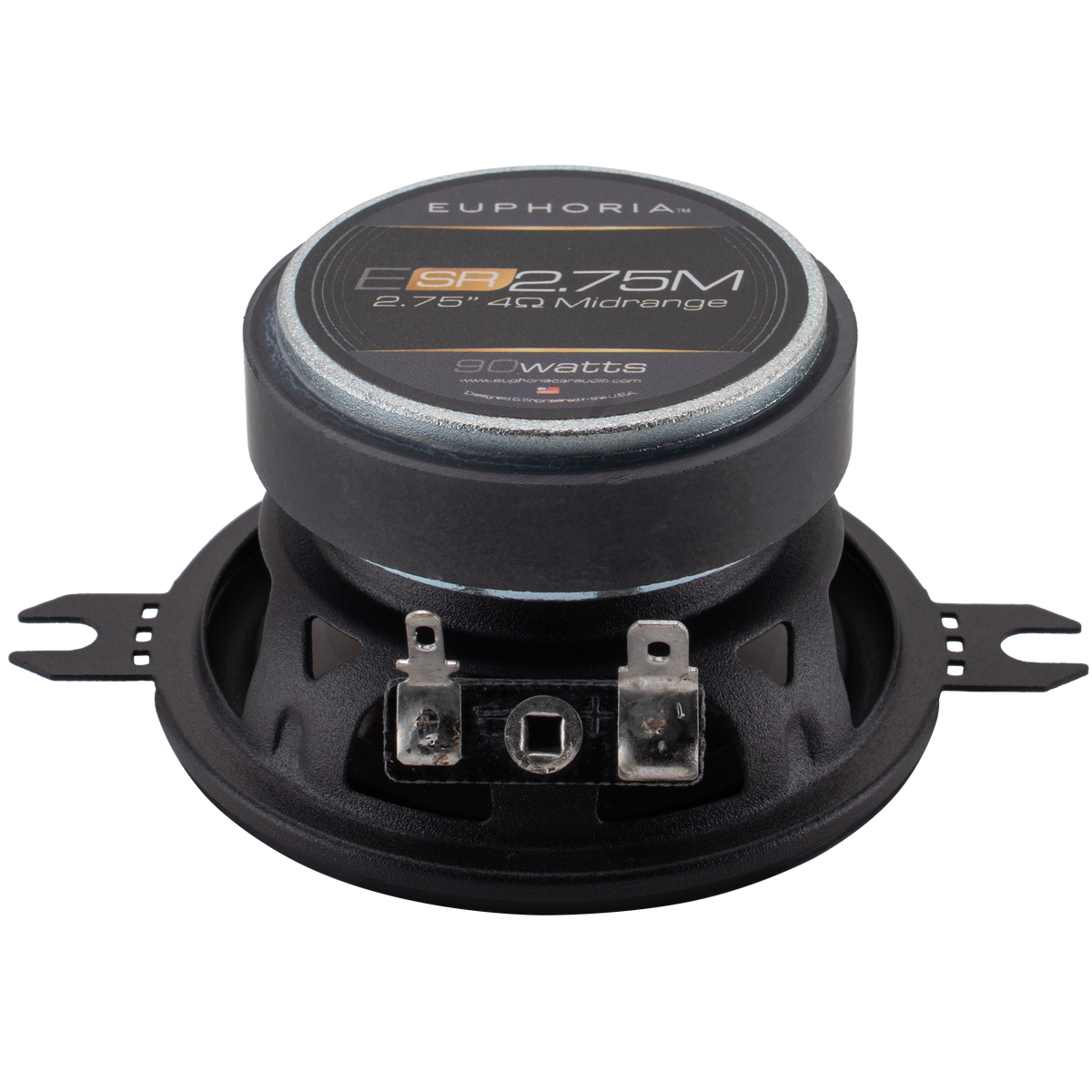

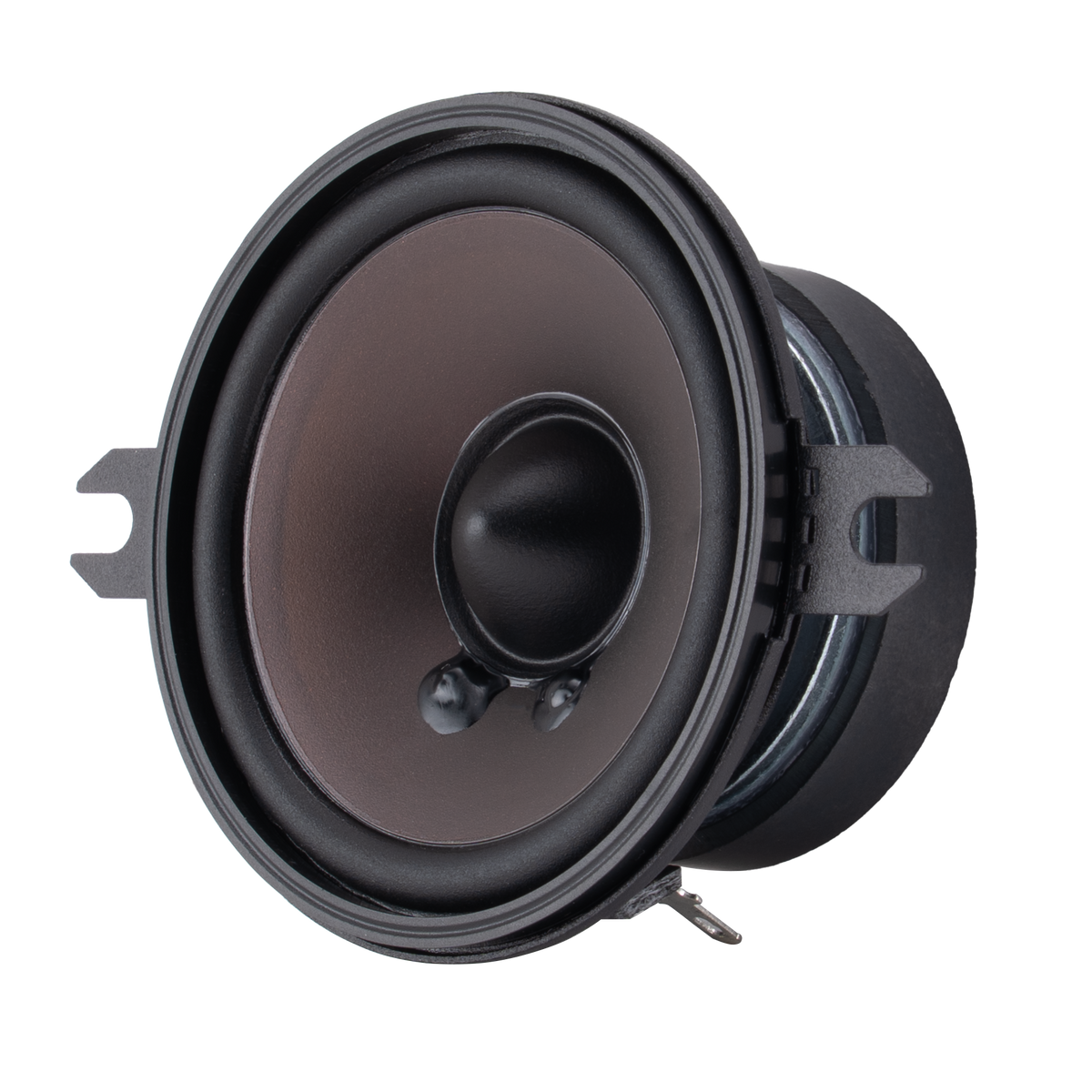

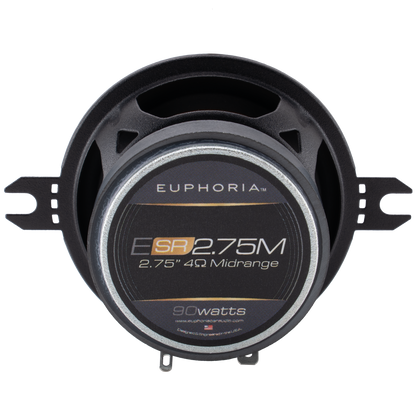

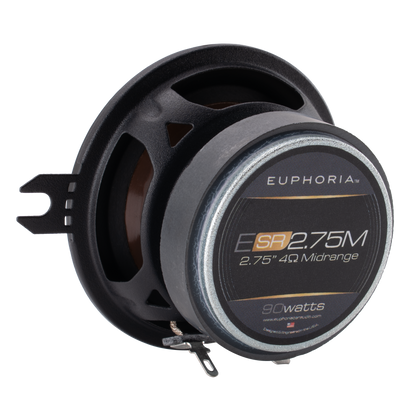

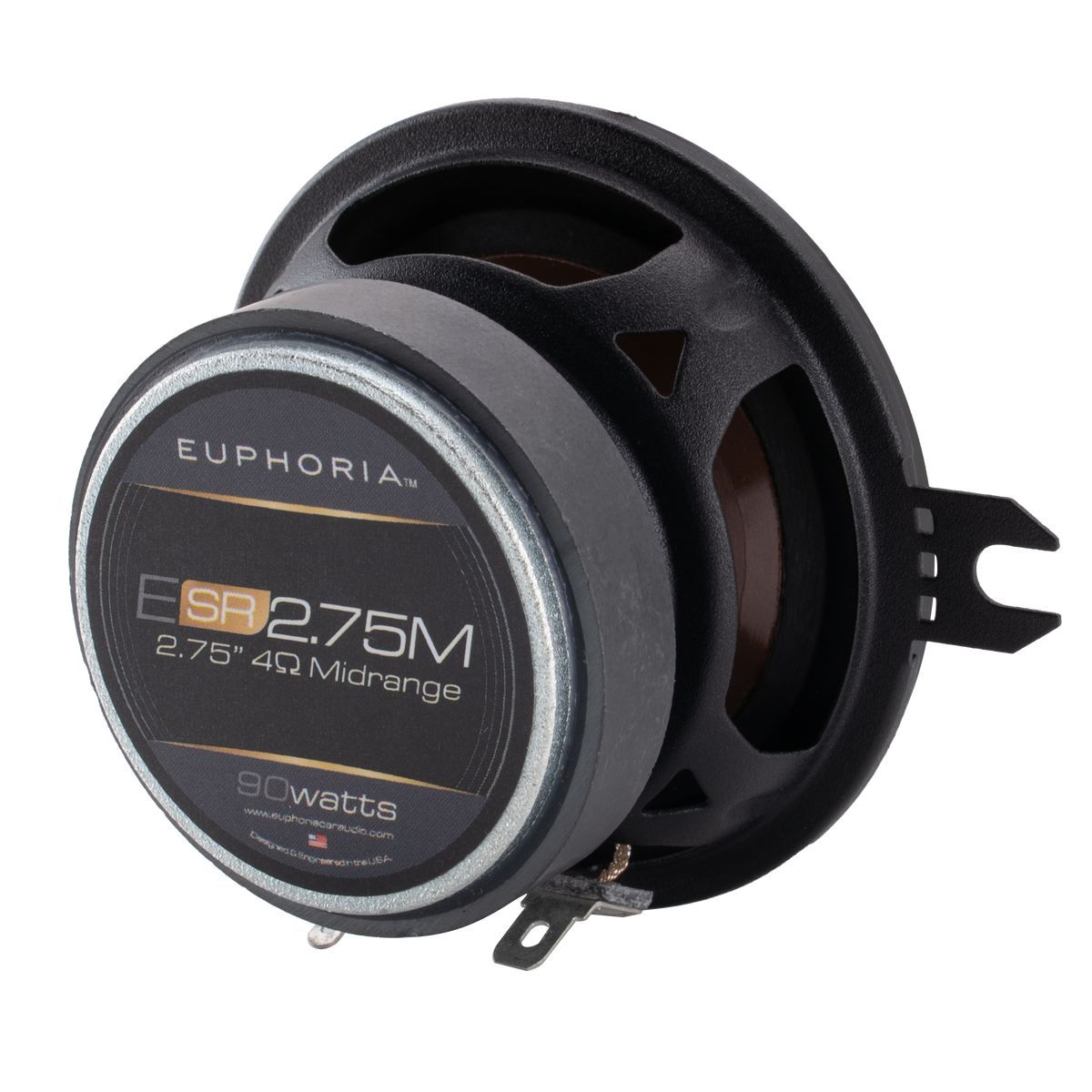

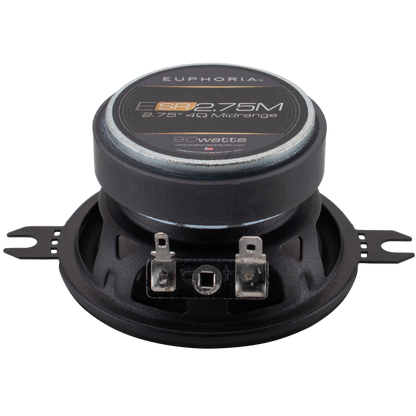

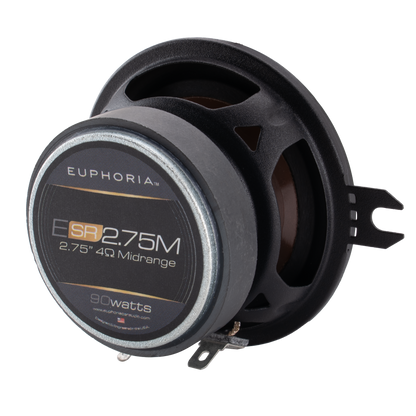

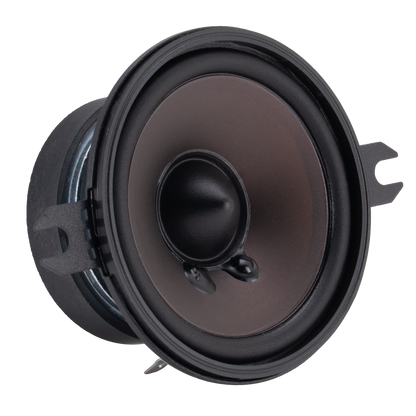

2.75" Midrange Dimensions
Overall Diameter: 2.70"/ 68.6 mm
Mounting Depth: 1.33"/ 34 mm
Cutout Diameter: 2.39"/  60.8 mm

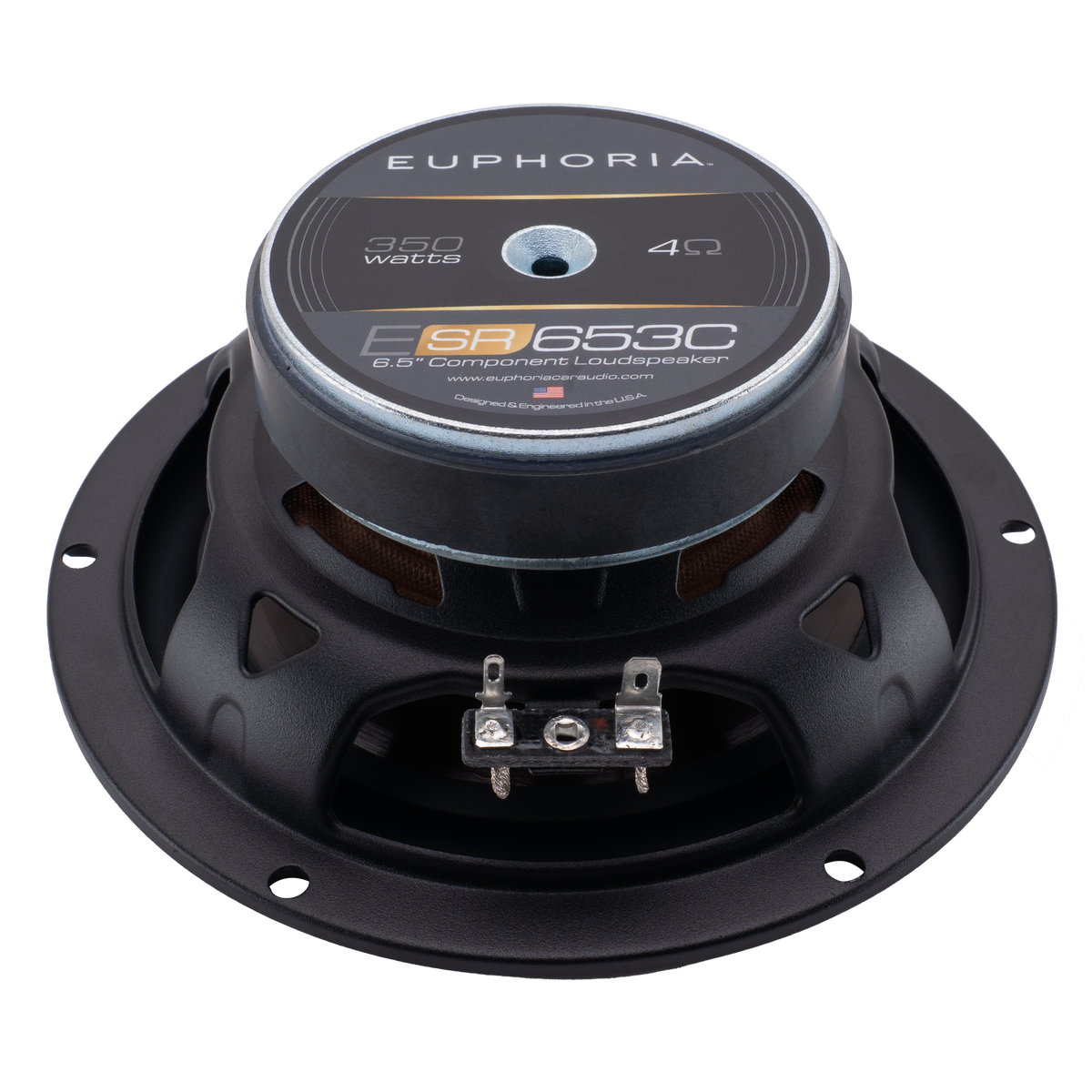

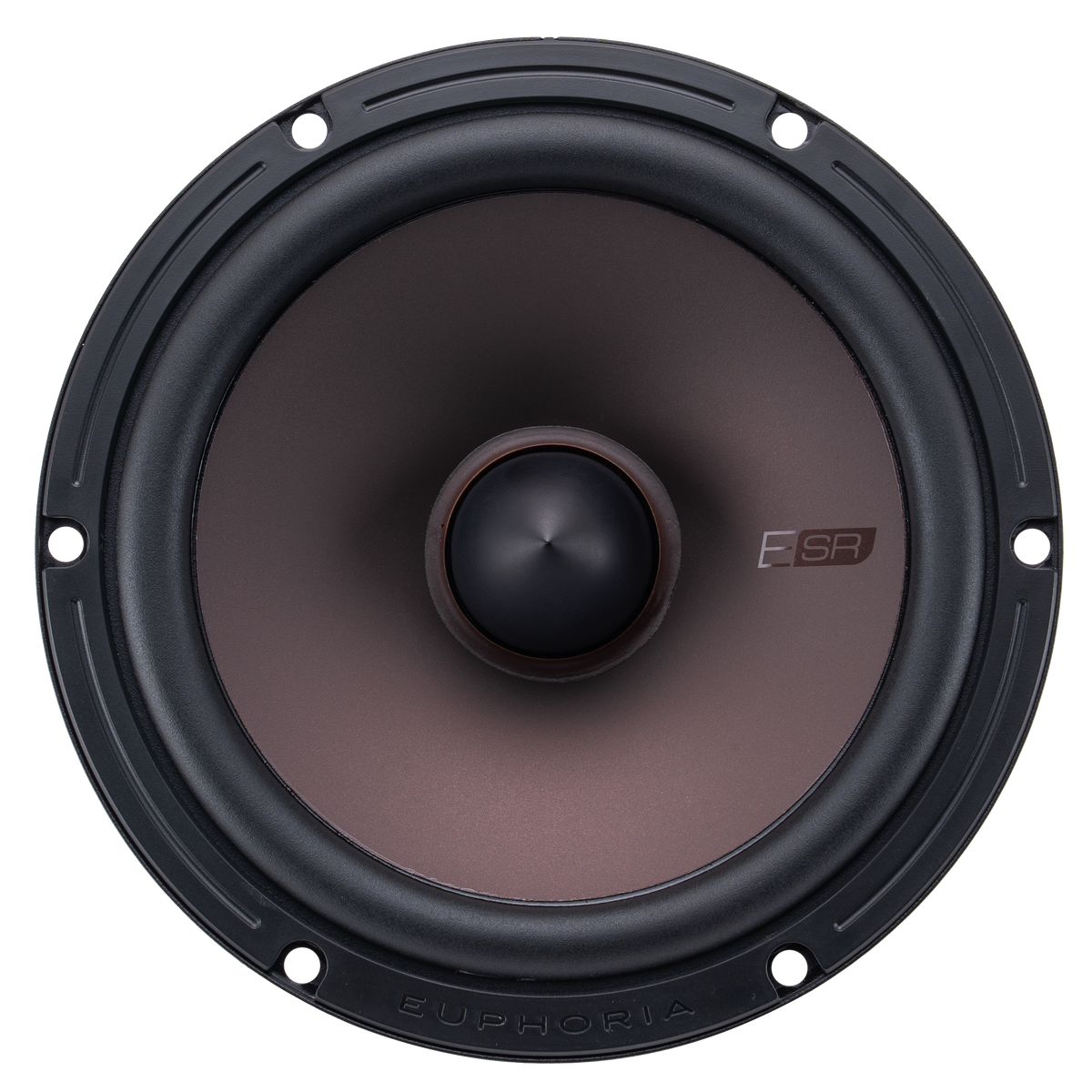

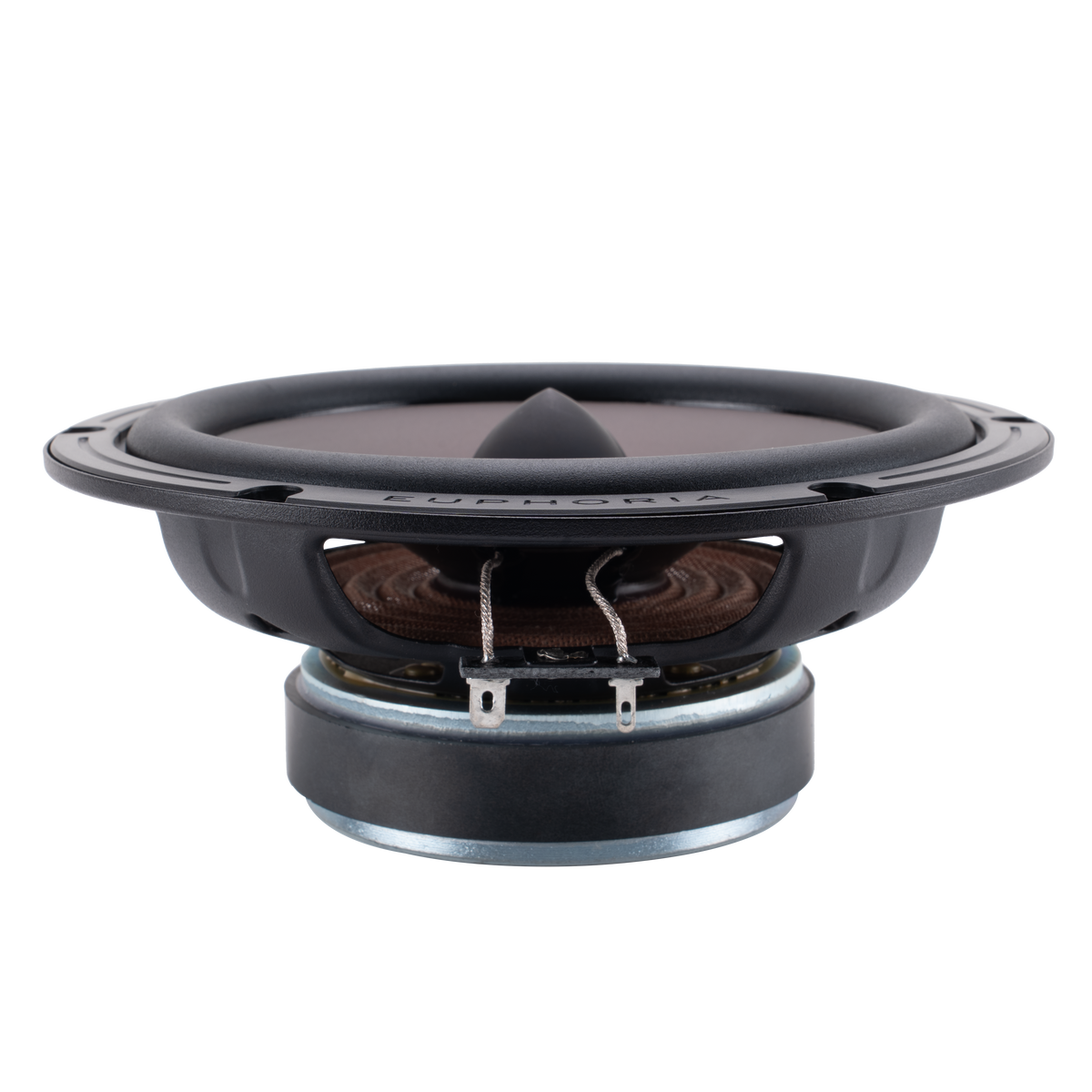

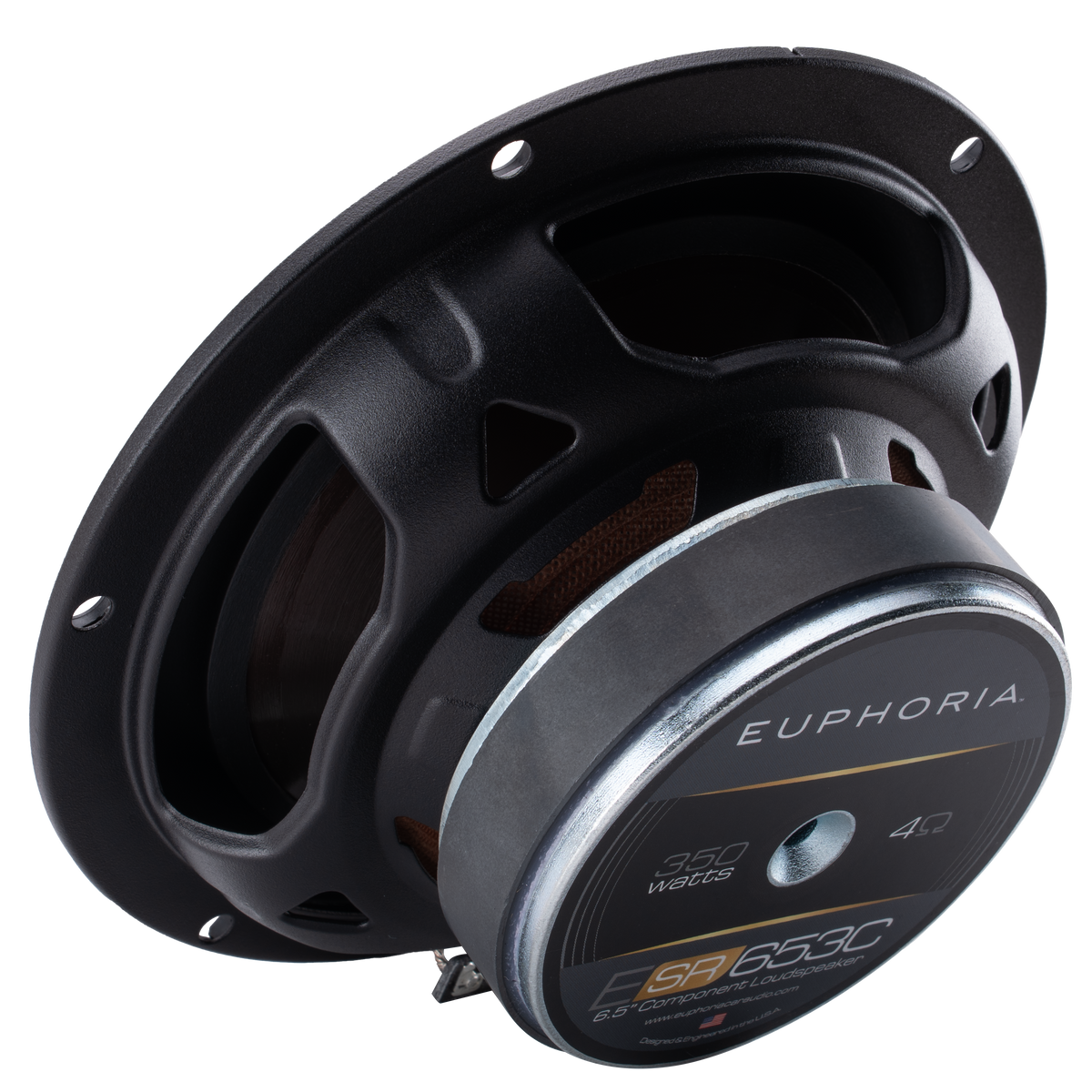

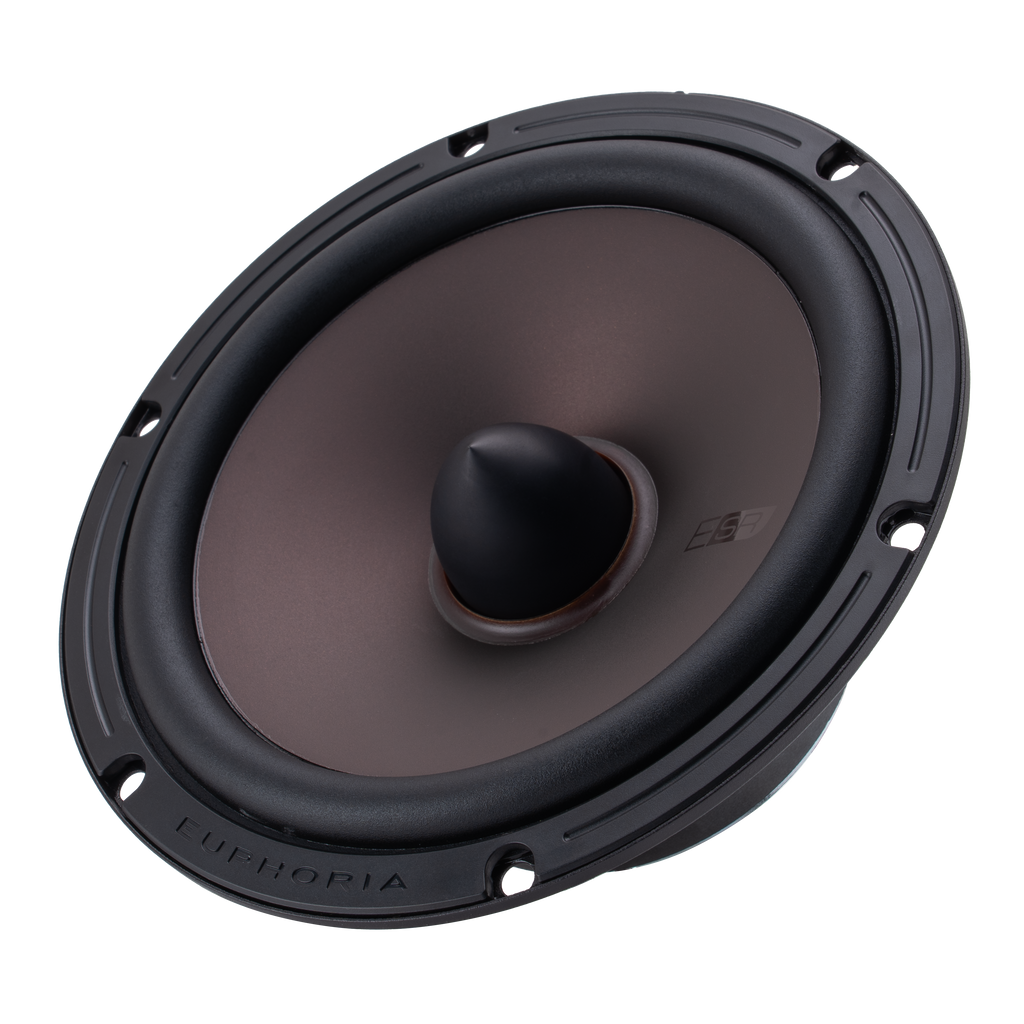

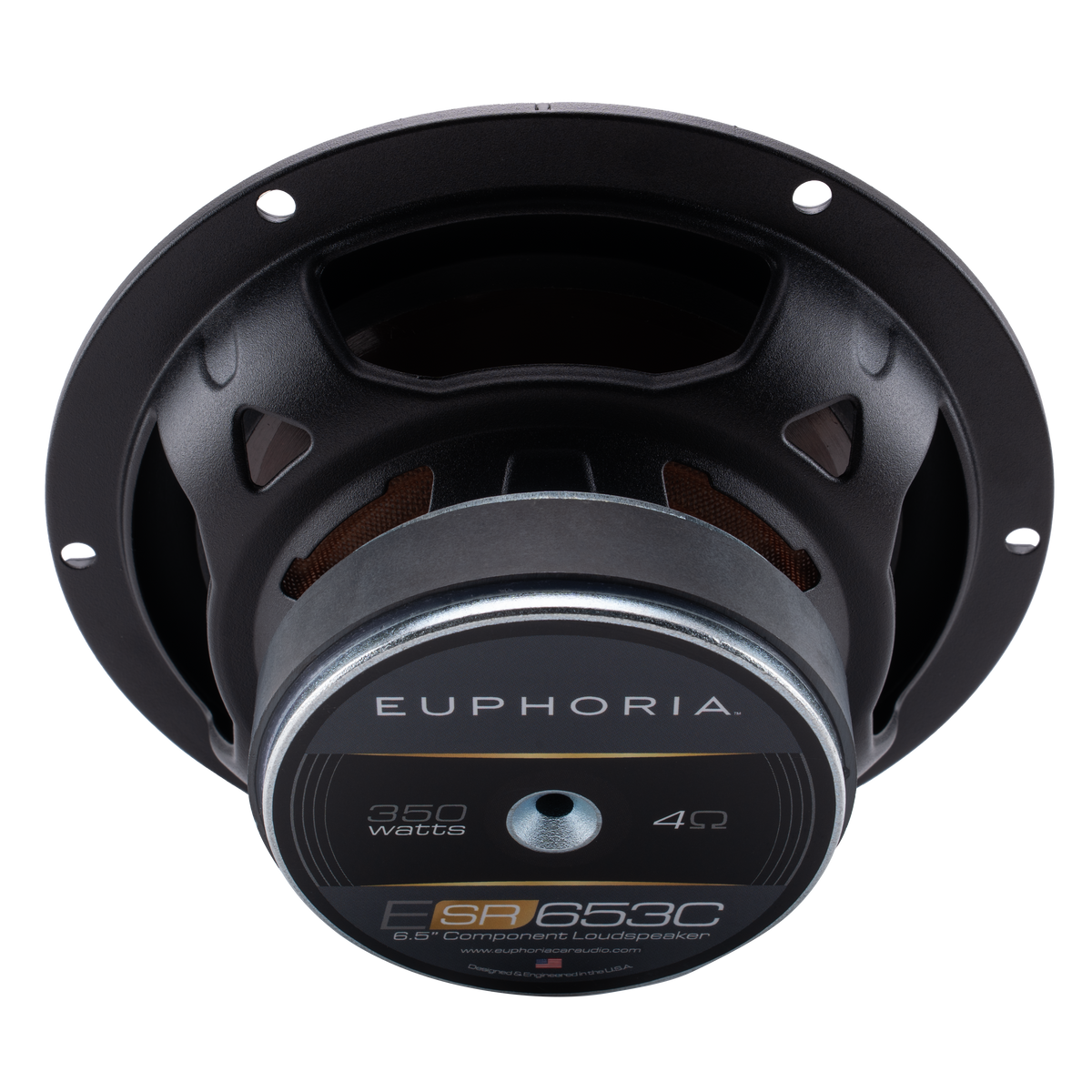

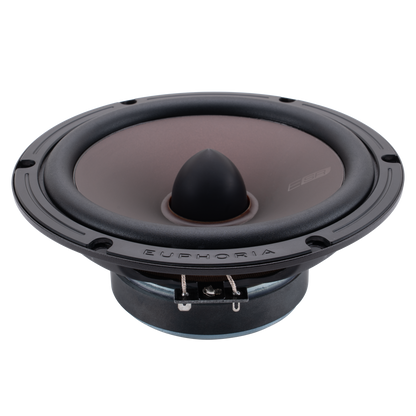

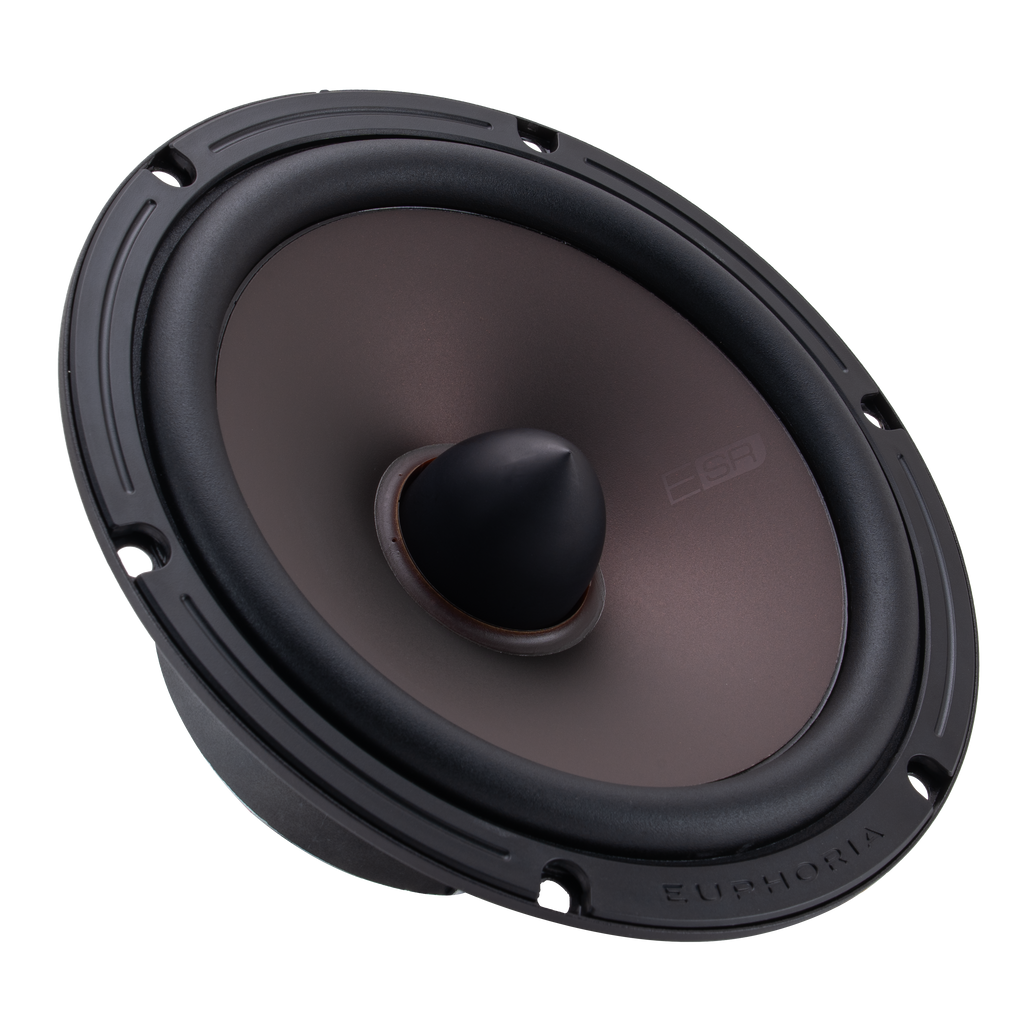

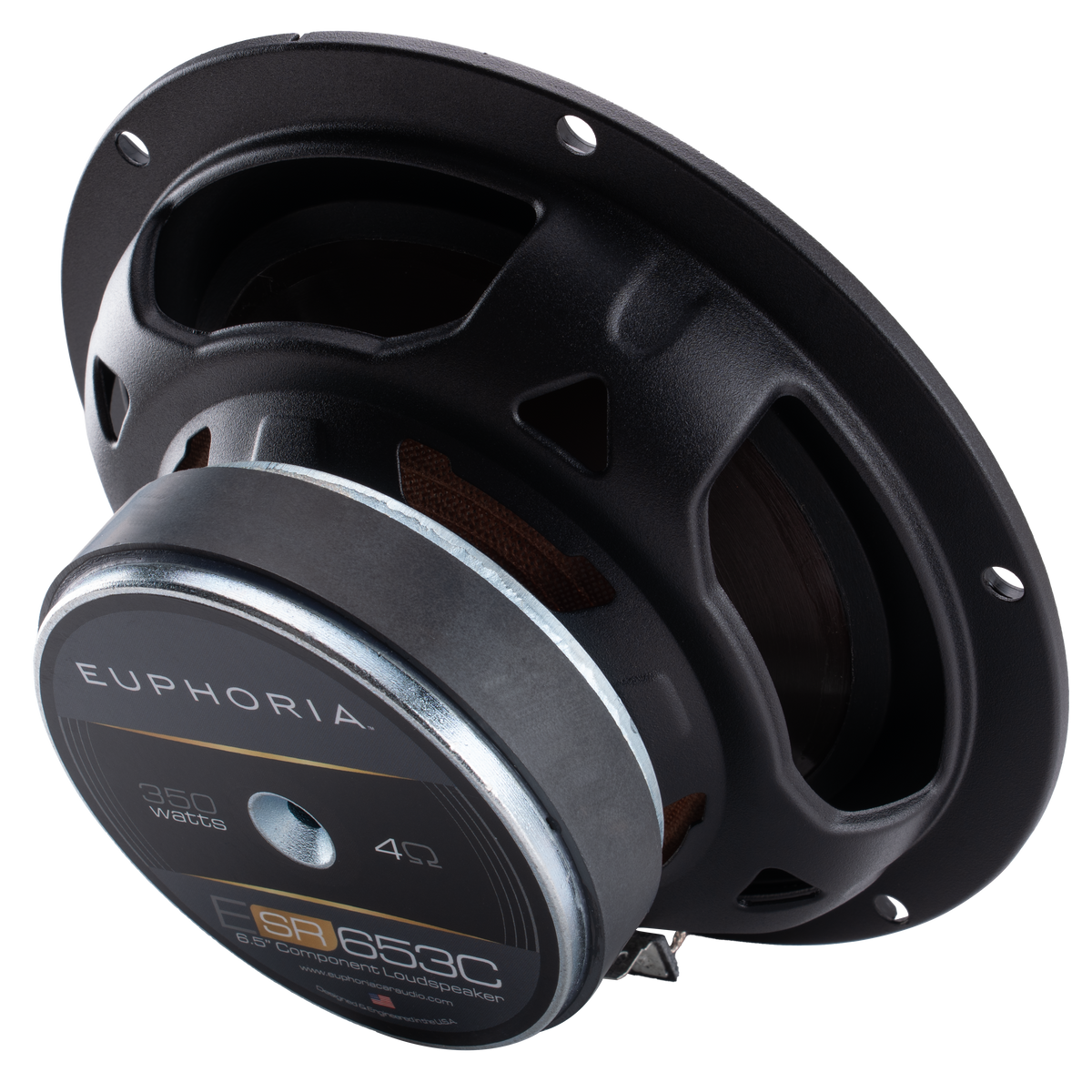

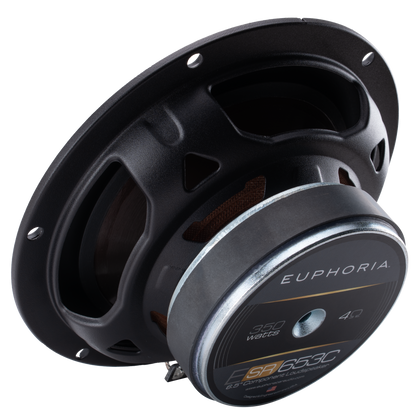

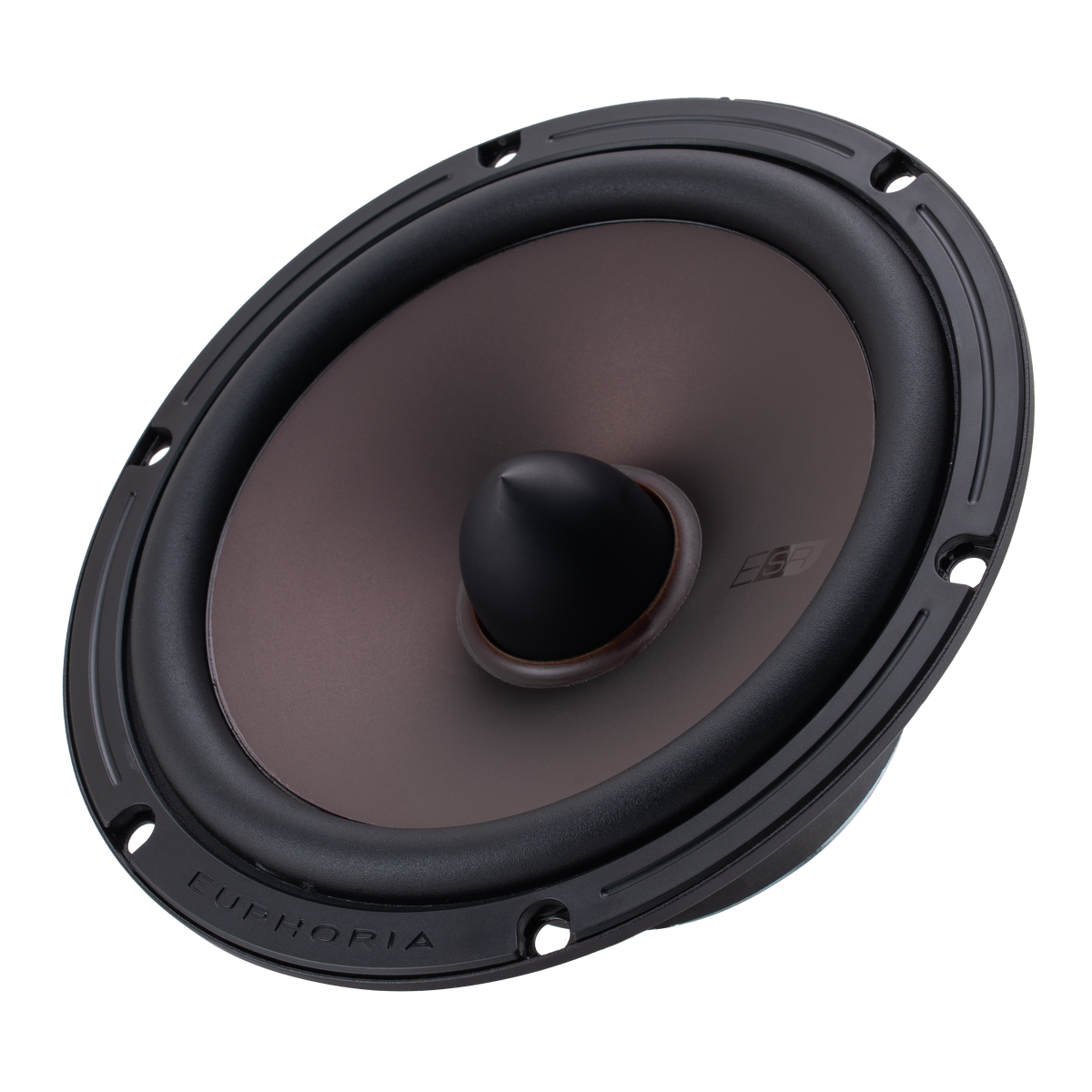

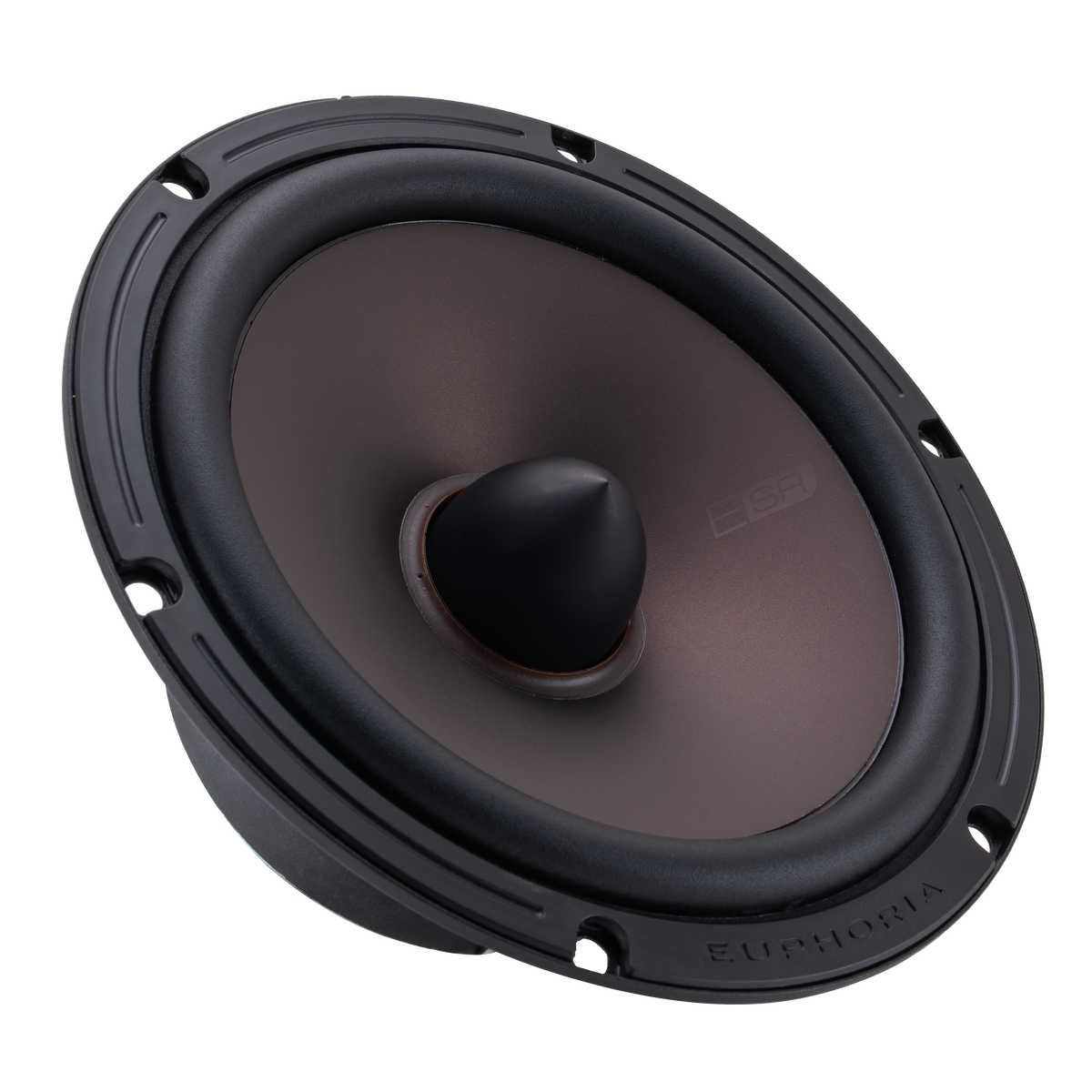

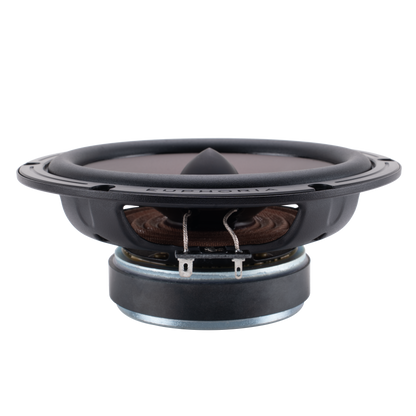

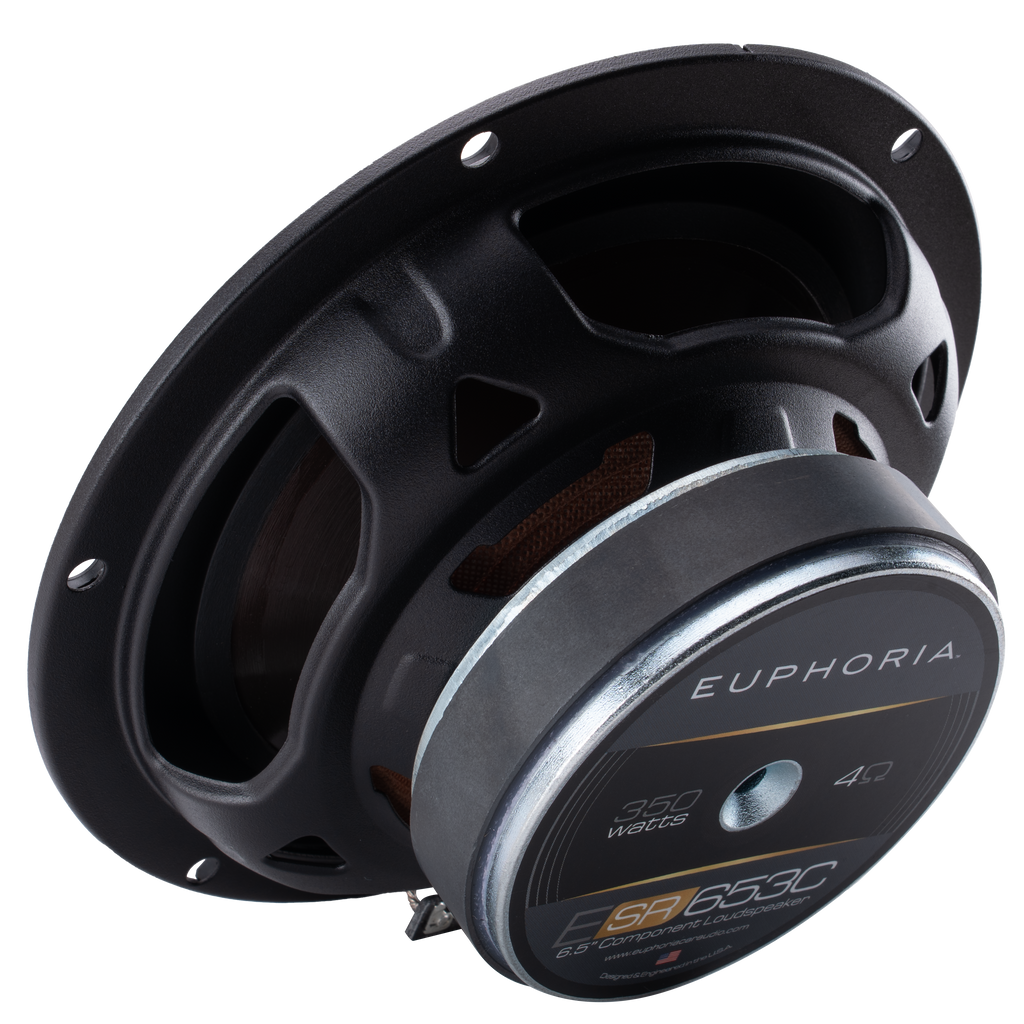

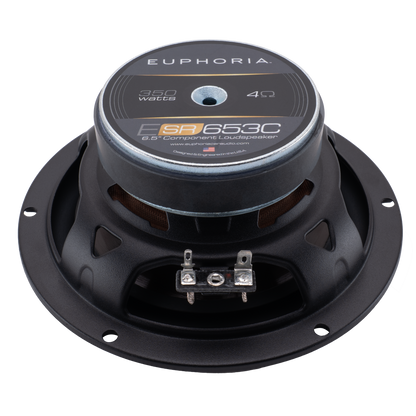

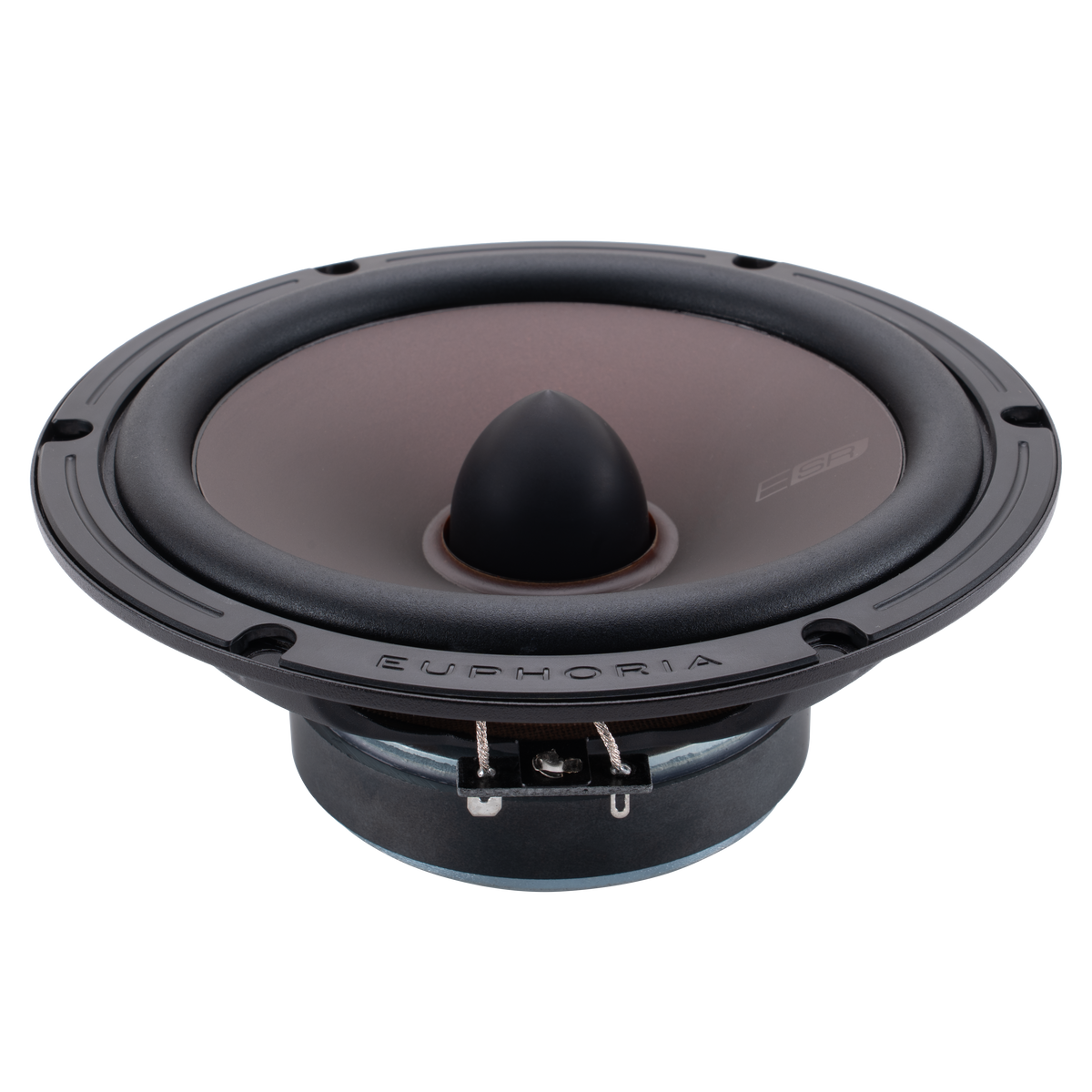

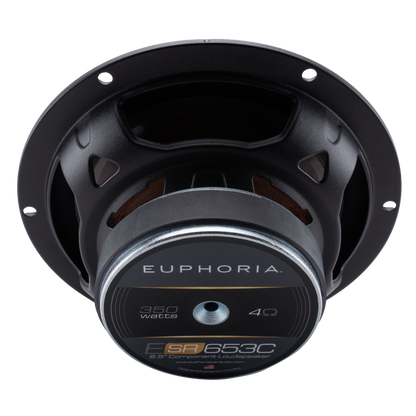

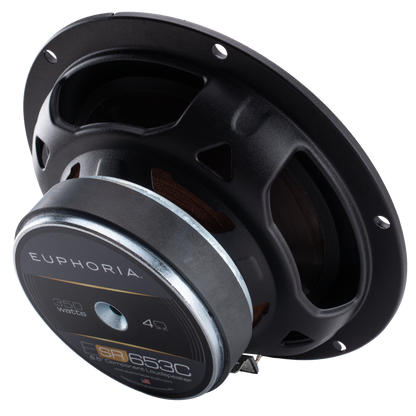

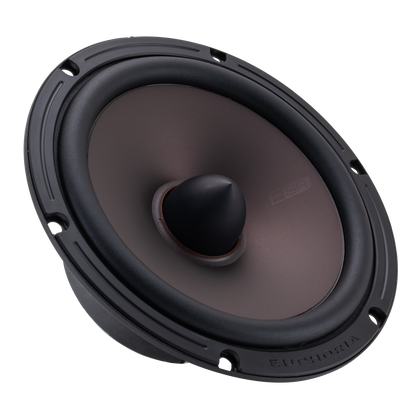

6.5" Loudspeaker Dimensions
Overall Diameter: 6.13"/ 155.6 mm
Mounting Depth: 2.34"/ 59.4 mm
Cutout Diameter: 5.53"/ 140.4 mm

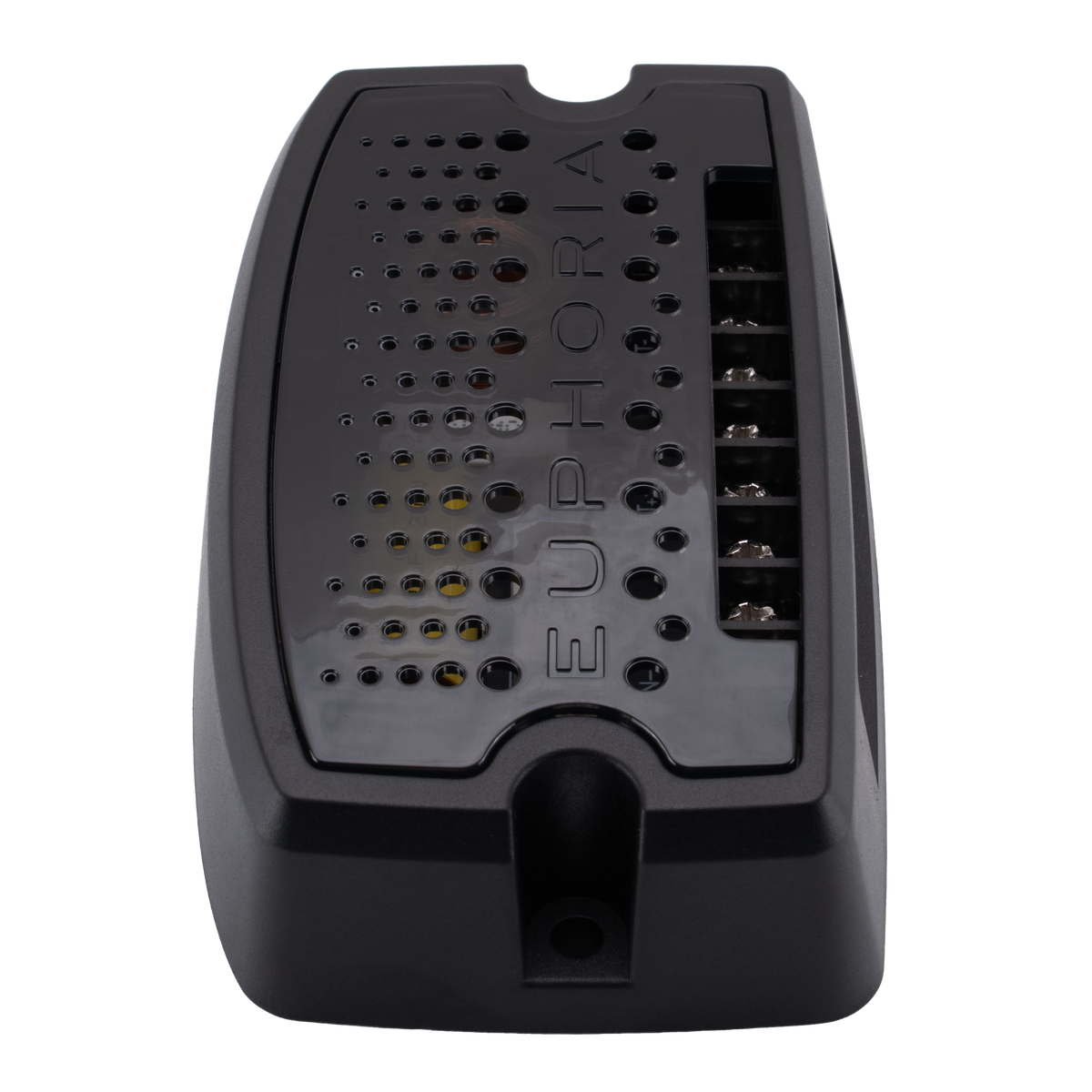

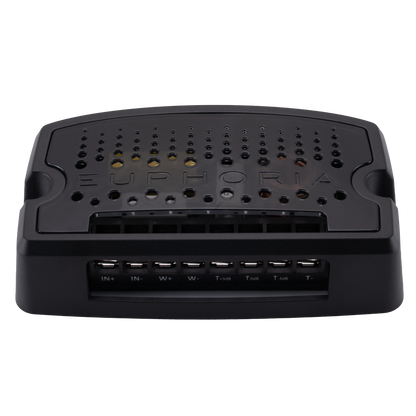

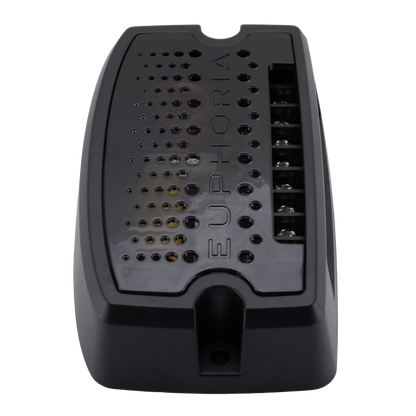

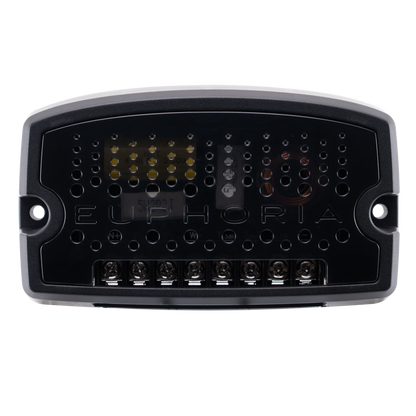

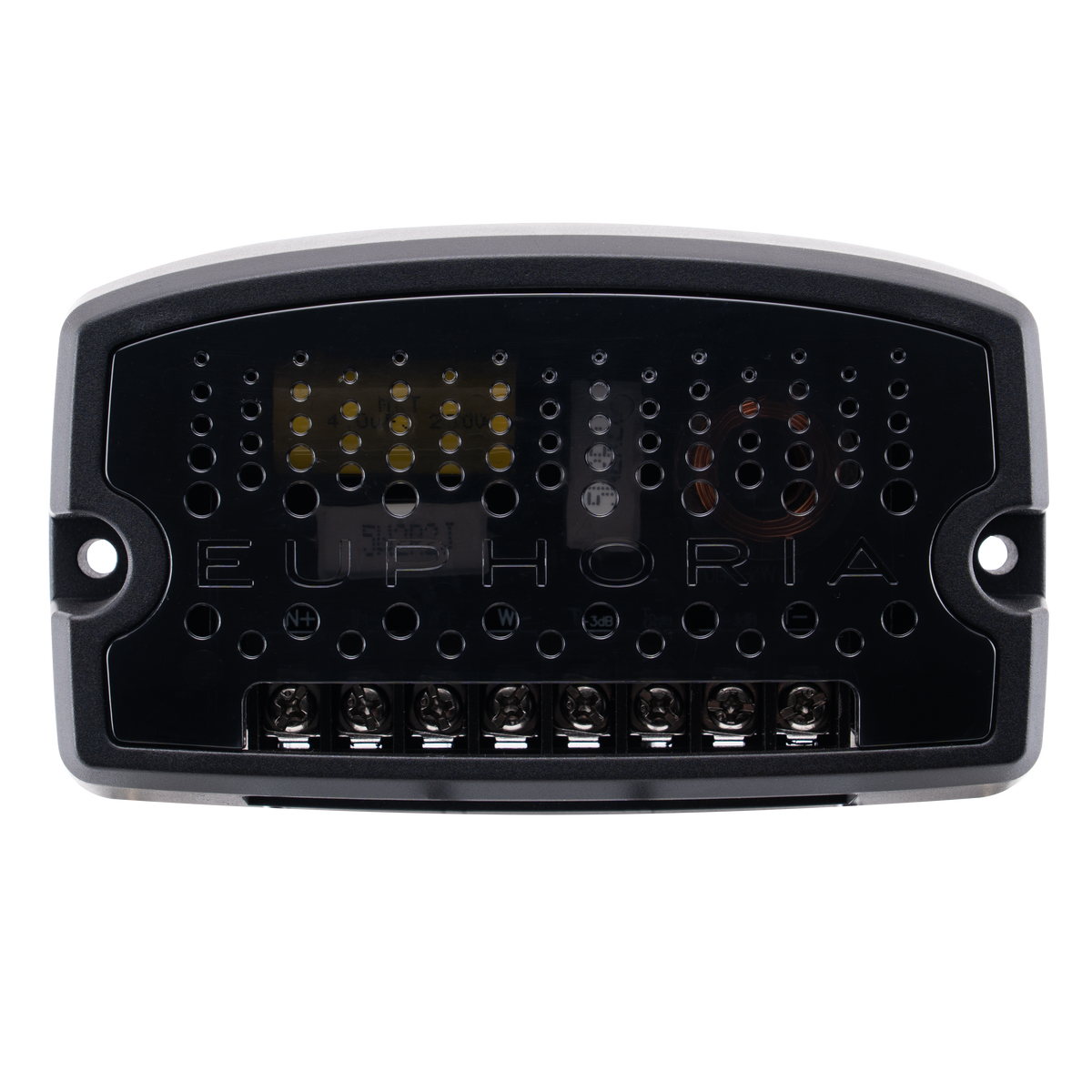

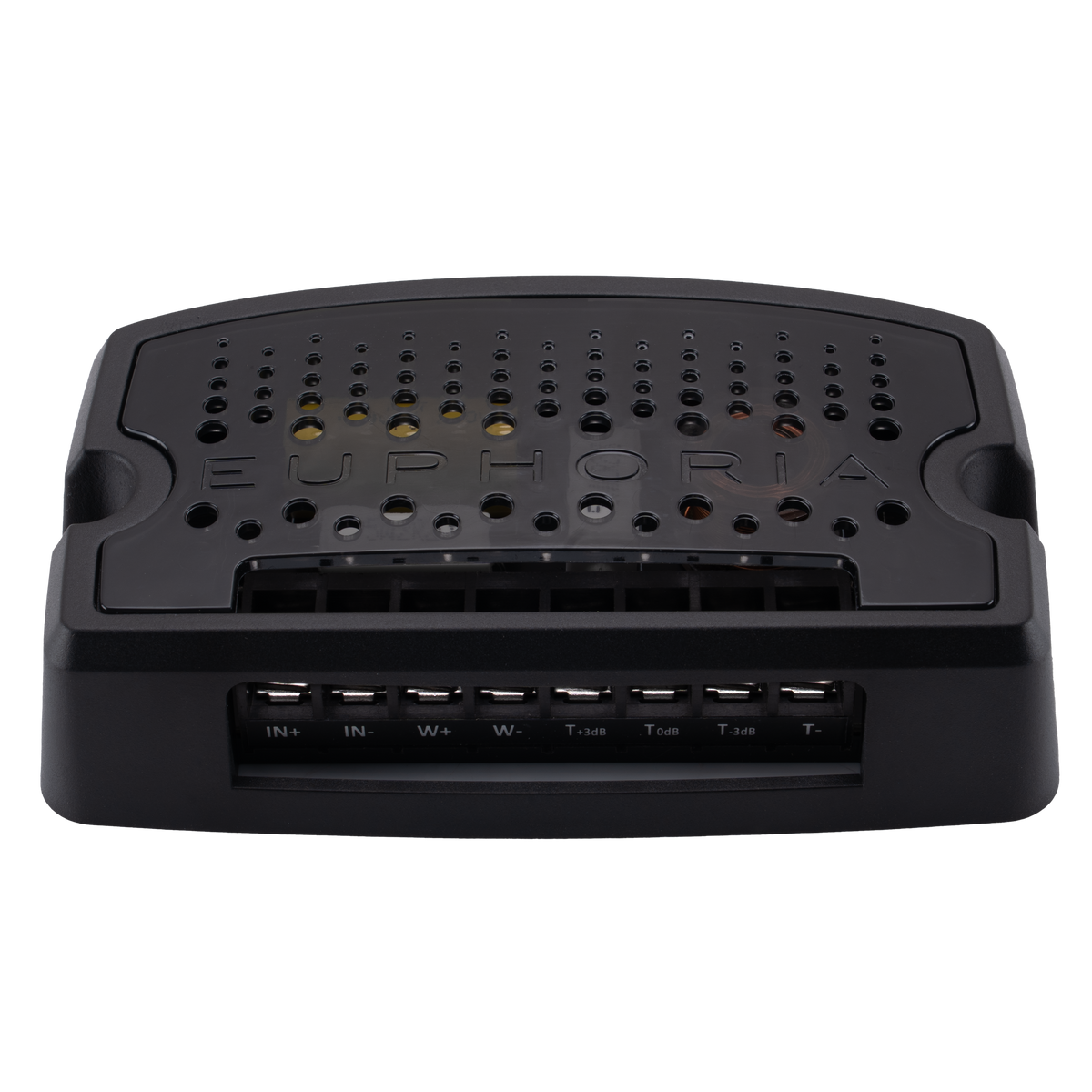

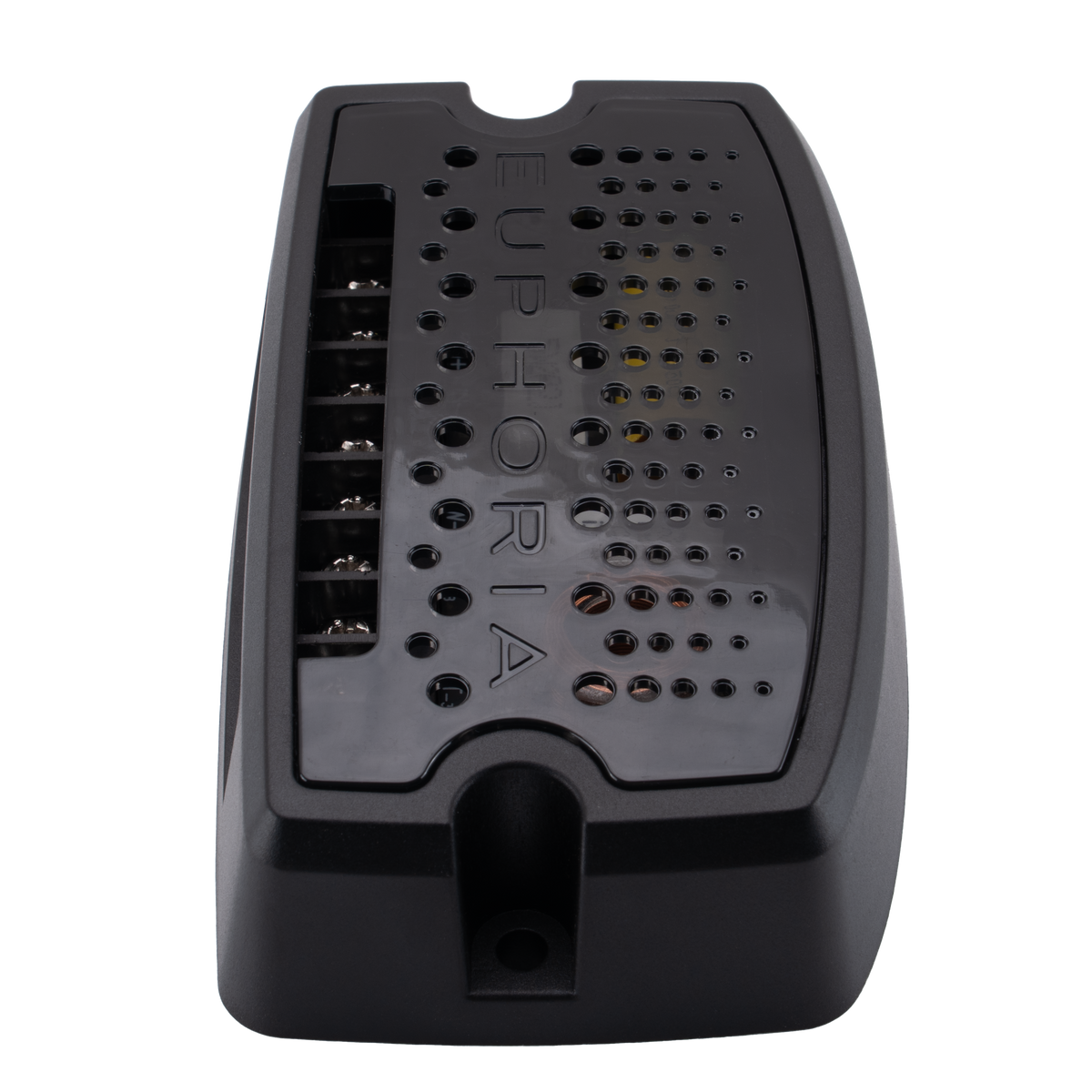

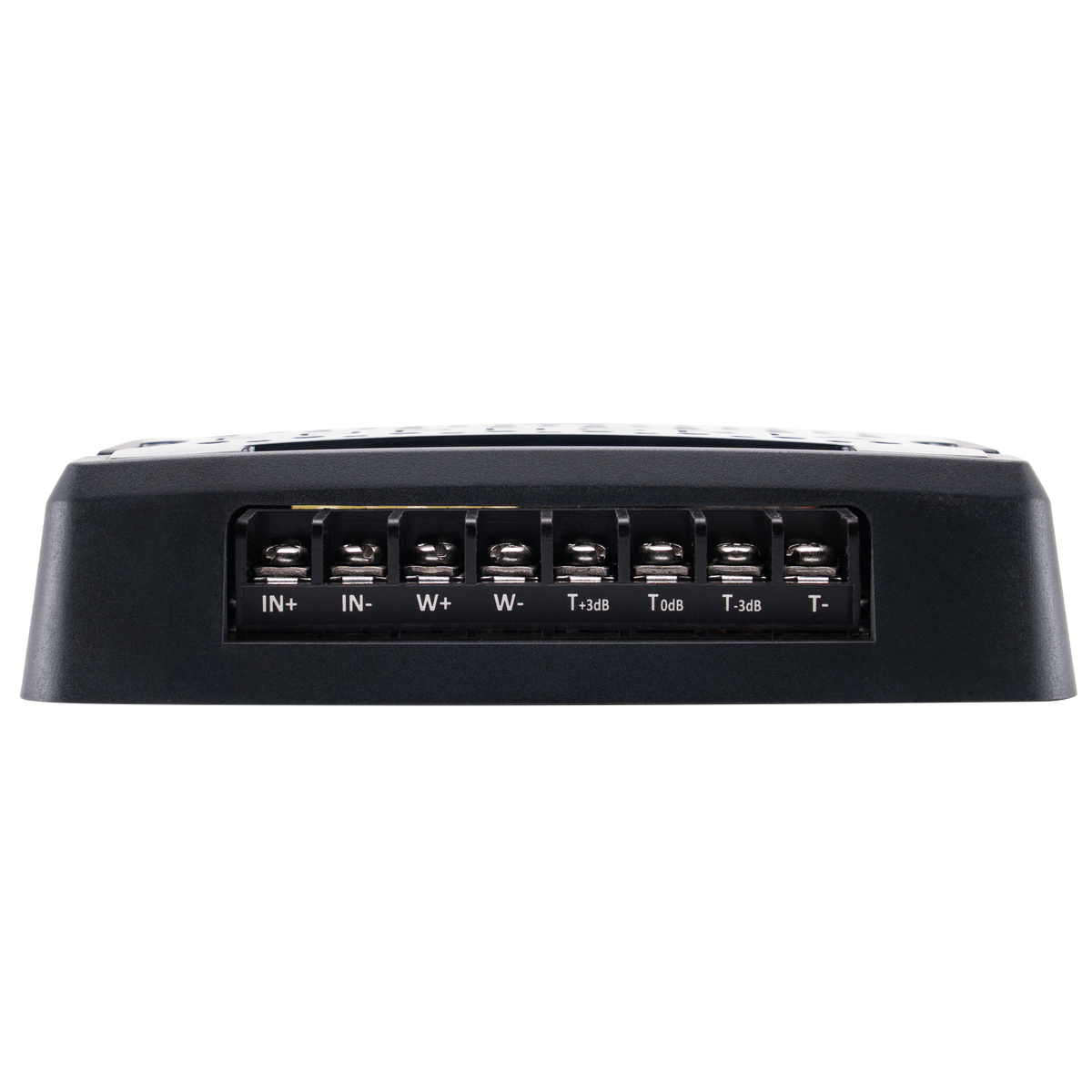

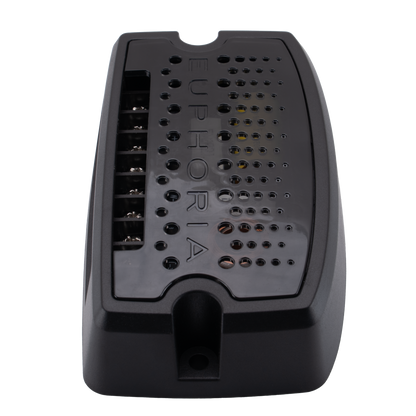

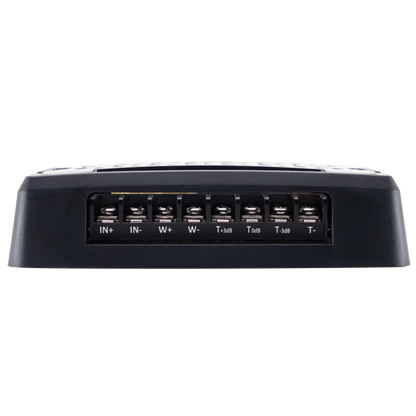

Crossover Dimensions
Length: 5.06"/ 128.6 mm
Width: 3.04"/ 77.1 mm
Height: 1.17"/ 29.6 mm
