Euphoria

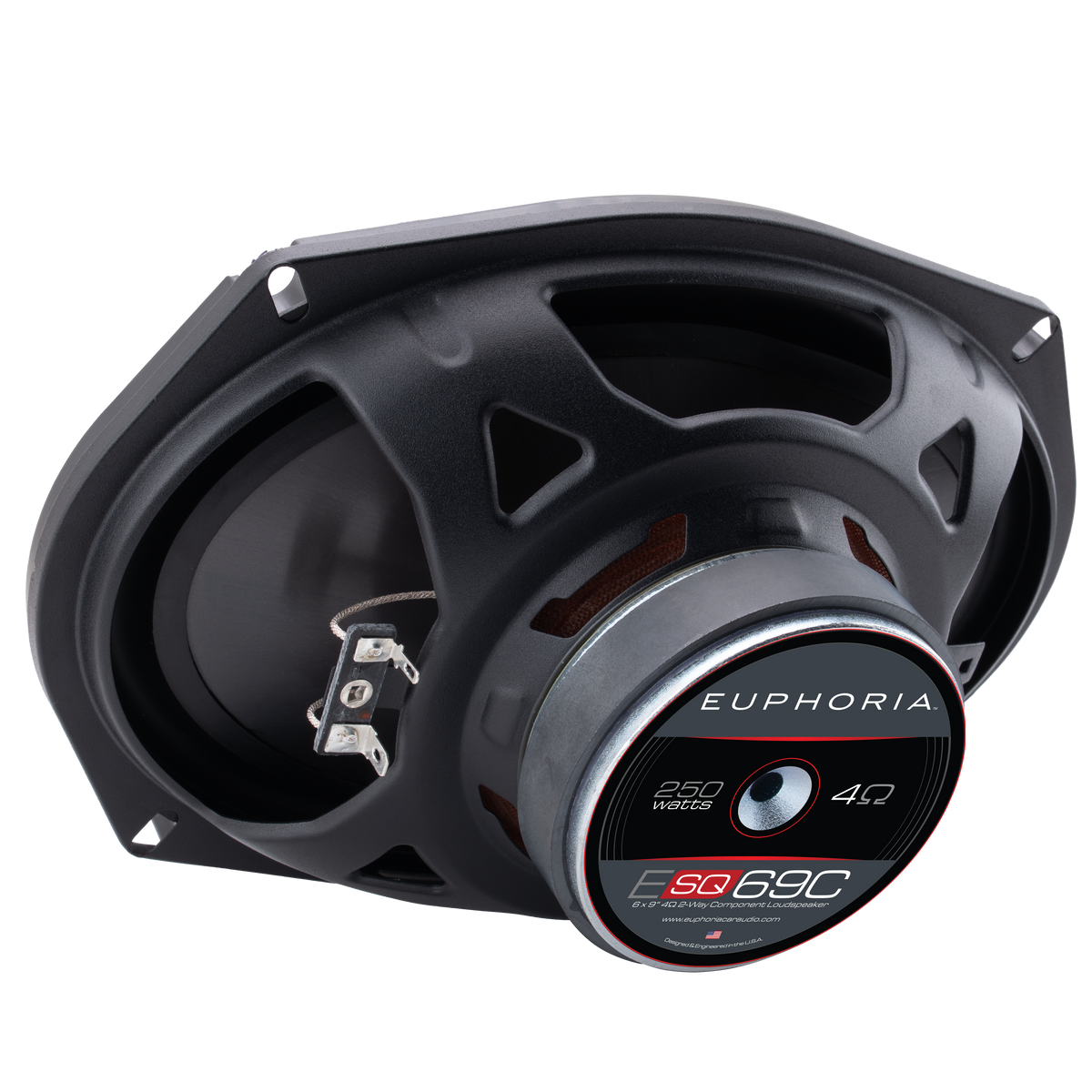

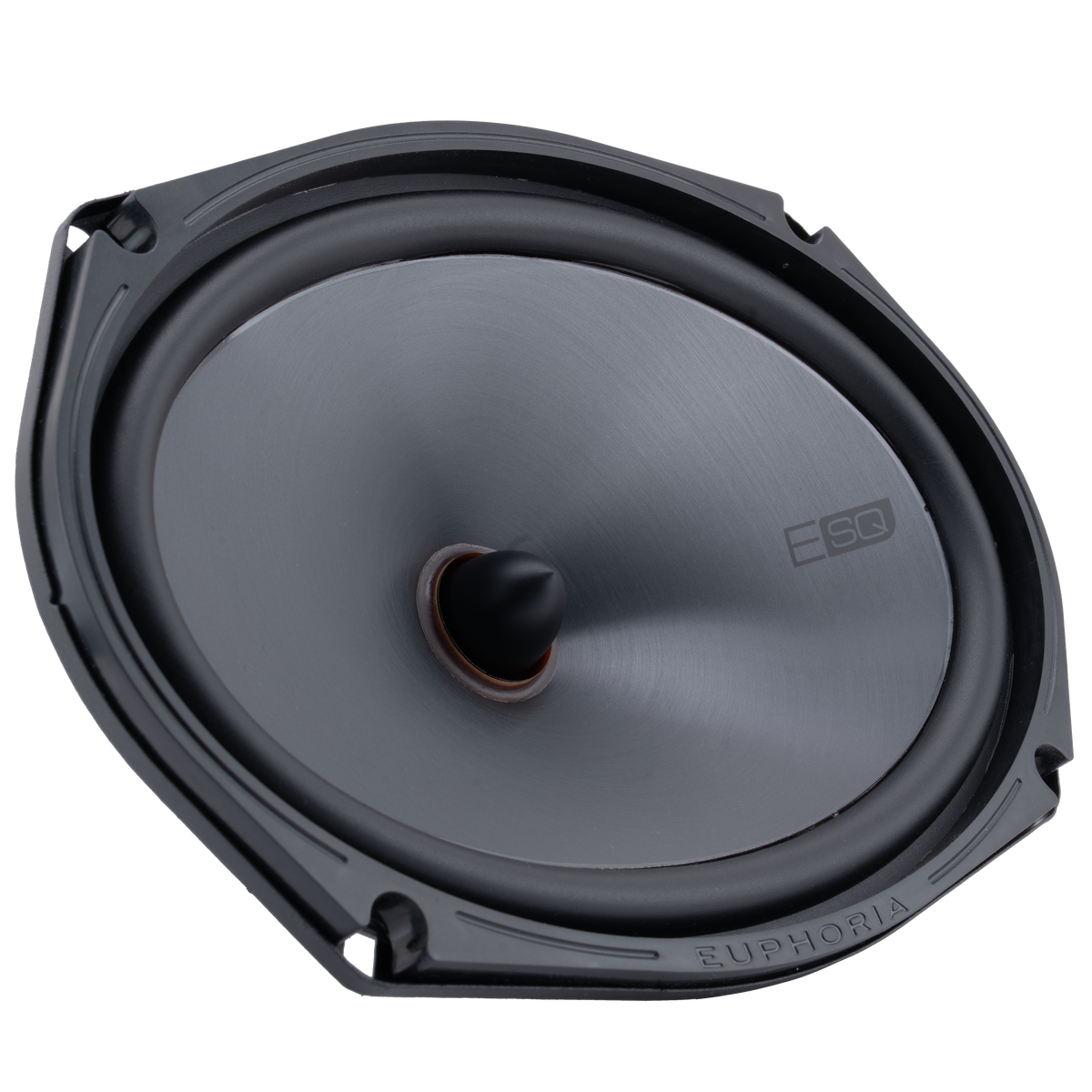

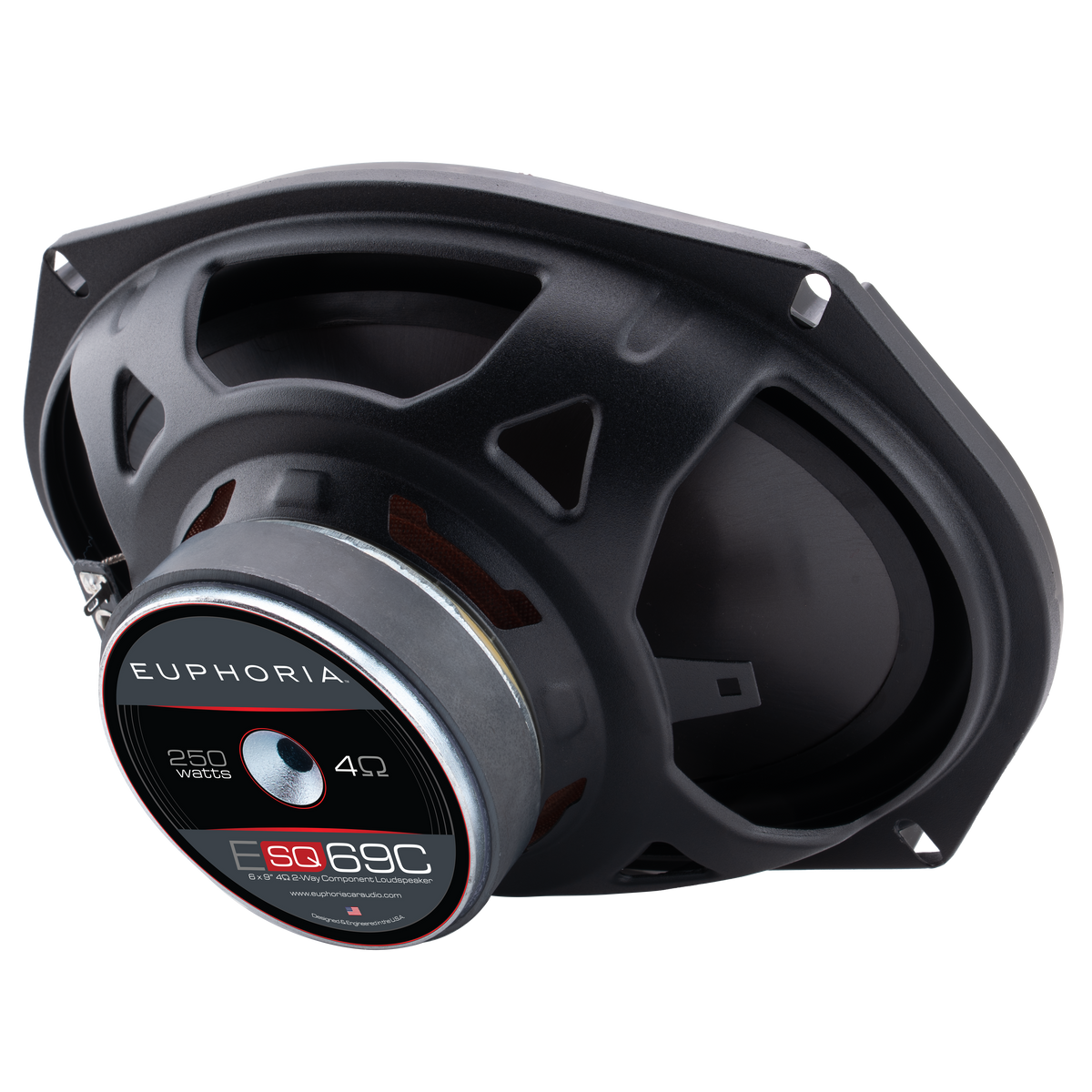

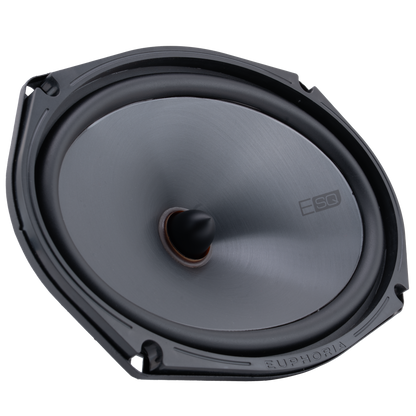

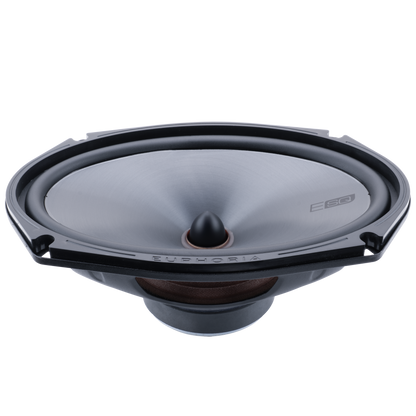

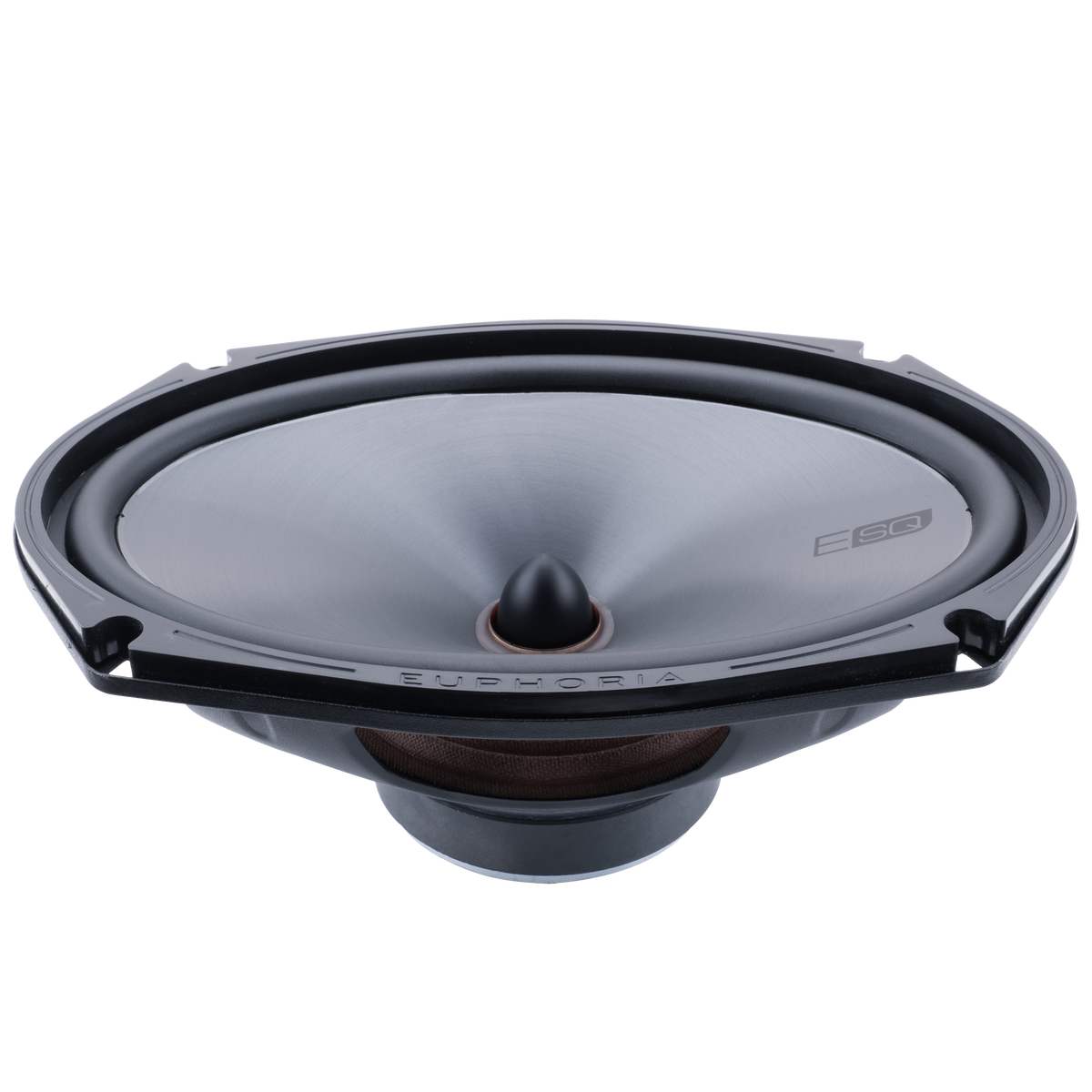

ESQ69C : SQ 6"×9" 2-Way Component Loudspeaker
SKU:8.10E+11
Couldn't load pickup availability
Features
-

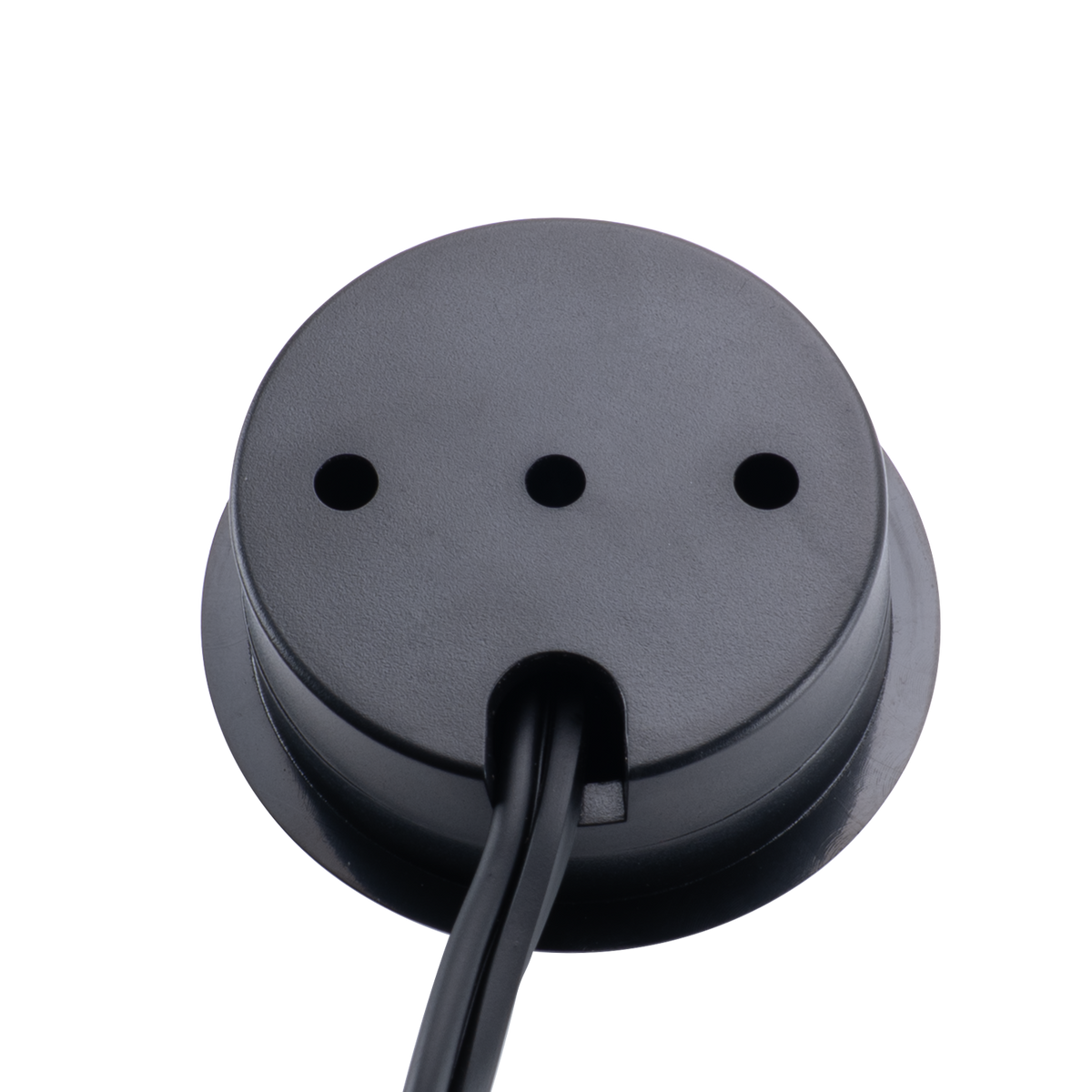

1" Silk Dome Tweeter delivers smooth, detailed high frequencies.
-
Versatile Mounting Options: Includes surface, angle, and flush mount accessories for flexible installation.
-
Injection-Molded PP Composite Cone with a durable rubber surround for enhanced performance
-
1" Voice coil with enhanced thermal capacity for improved efficiency
-
Ferrite Oxide Magnet with an optimized motor structure for greater power handling
-
Stamp-Cast Steel Basket for increased durability and reduced resonance
-
Precision-Tuned 12dB Premium 2-Way External Crossover for seamless frequency distribution
-

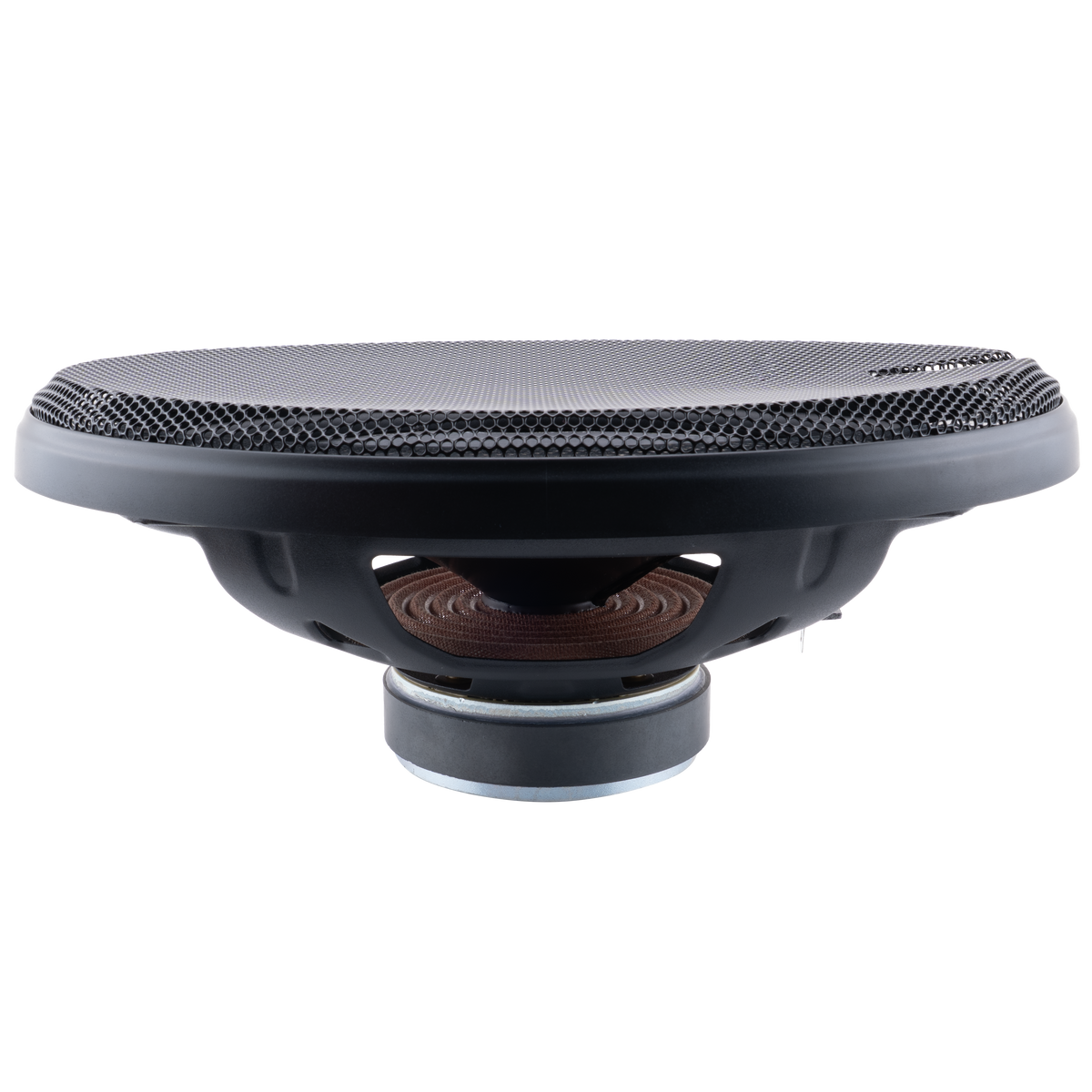

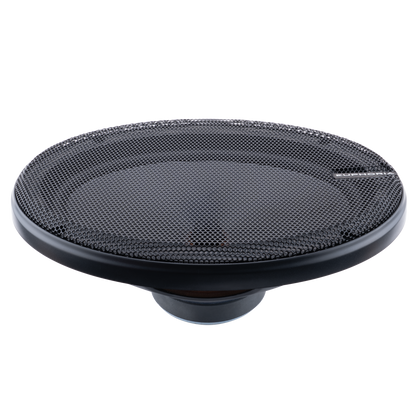

Protective Grill Included
Hi-Fi Audio speakers are designed for high-resolution audio, delivering exceptional clarity and accuracy that closely matches the original studio recording
Specifications
| Max power : 250 Watts |
| Nominal Power Handling : 100 Watts |
| Frequency Response: 42Hz - 20KHz |
| Impedance: 4Ω |
| Sensitivity: 90.1 dB |
| 1" Tweeter Dimensions |
| Overall Diameter: 2.07"/ 52.5 mm |
| Mounting Depth: 0.68"/ 17.2 mm |
| Cutout Diameter: 1.78"/ 45.3 mm |
| 6x9" Loudspeaker Dimensions |
| Overall Diameter: 6.41 x 9.25"/ 163 x 235 mm |
| Mounting Depth: 2.91"/ 74 mm |
| Cutout Diameter: 5.91 x 8.67"/ 150.2 x 220.2 mm |
| Crossover Dimensions |
| Length: 5.06"/ 128.6 mm |
| Width: 3.04"/ 77.1 mm |
| Height: 1.17"/ 29.6 mm |
