Euphoria
EA1.600 : Mono Class D Amplifier
SKU:
Couldn't load pickup availability
Features
- High efficiency full range Class D Technology
- Audiophile Grade tiffany RCA connectors
- ACT- adaptive Low-Pass filter
- ACT- adaptive Subsonic filter
- SESI- Operation status indicator
- Bass optimization EQ
- Direct Connect Speaker Outputs
- Large Gauge Power Wire Inputs
- APC - Audio Circuit Protection
- Remote gain control (Included)
Specifications
| 1 x 600 Watts @ 1ohm |
| 1 x 300 Watts @ 2 ohms |
| 1 x 150 Watts @ 4 ohms |
| Low Pass Filter : 40 Hz - 250 Hz |
| Sub Sonic Filter: 10 Hz - 50 Hz |
| BassEQ @ 45Hz : 0dB -12 dB |
| Working Voltage: 9-16 Volts |
| Frequency Response: 20Hz - 250 Hz |
| Signal to Noise Ratio: <87dB |
| Damping Factor @ 100Hz - 4volts/4-ohms <400 |
| Low Level Input: 350MV - 7V |

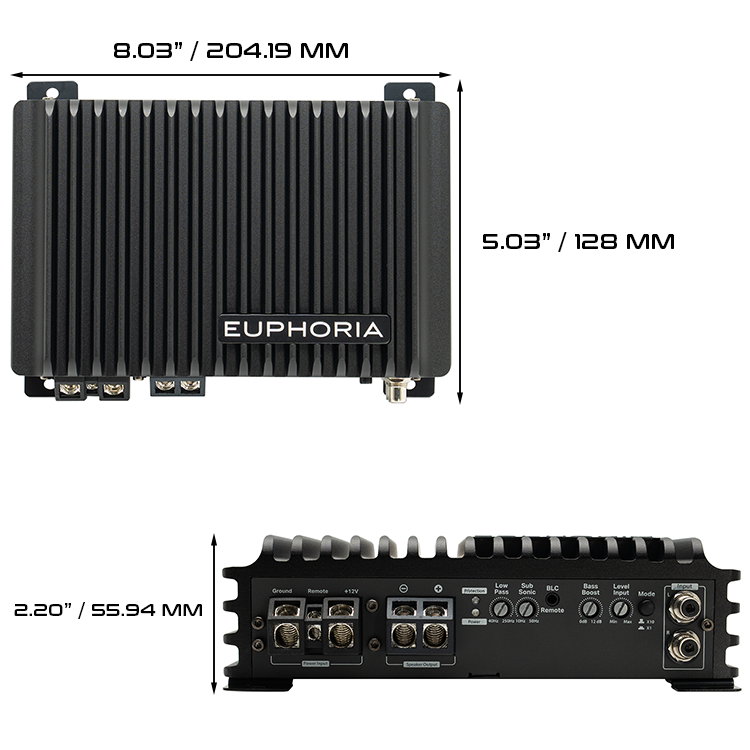

| DIMENSIONS |
| L - 8.03"/ 204.19 mm |
| W - 5.03"/ 128 mm |
| H - 2.20"/ 55.94 mm |
Description
For those who demand premium sound, the Euphoria EA1.600 Monoblock Subwoofer Amplifier delivers powerful, dynamic bass performance for audiophiles and casual listeners alike. Key Features: • Power Output: 600W x 1 at 1 ohm for deep and precise bass. • Flexible Compatibility: Supports 1, 2, or 4-ohm loads for versatile setups. • High-Efficiency Class D Design: Ideal for modern electrical systems. • Adaptive Crossover: Customize your subwoofer for optimal performance. • Remote Dash Control: Adjust bass levels effortlessly. • Precision Tuning: Durable metal potentiometers ensure stable settings. • 4-Layer PCB: Provides cleaner, more accurate audio. • Compact Design: Fits easily into tight spaces. Elevate your car audio experience with the Euphoria EA1.600 and enjoy bass like never before.
Product Manual
