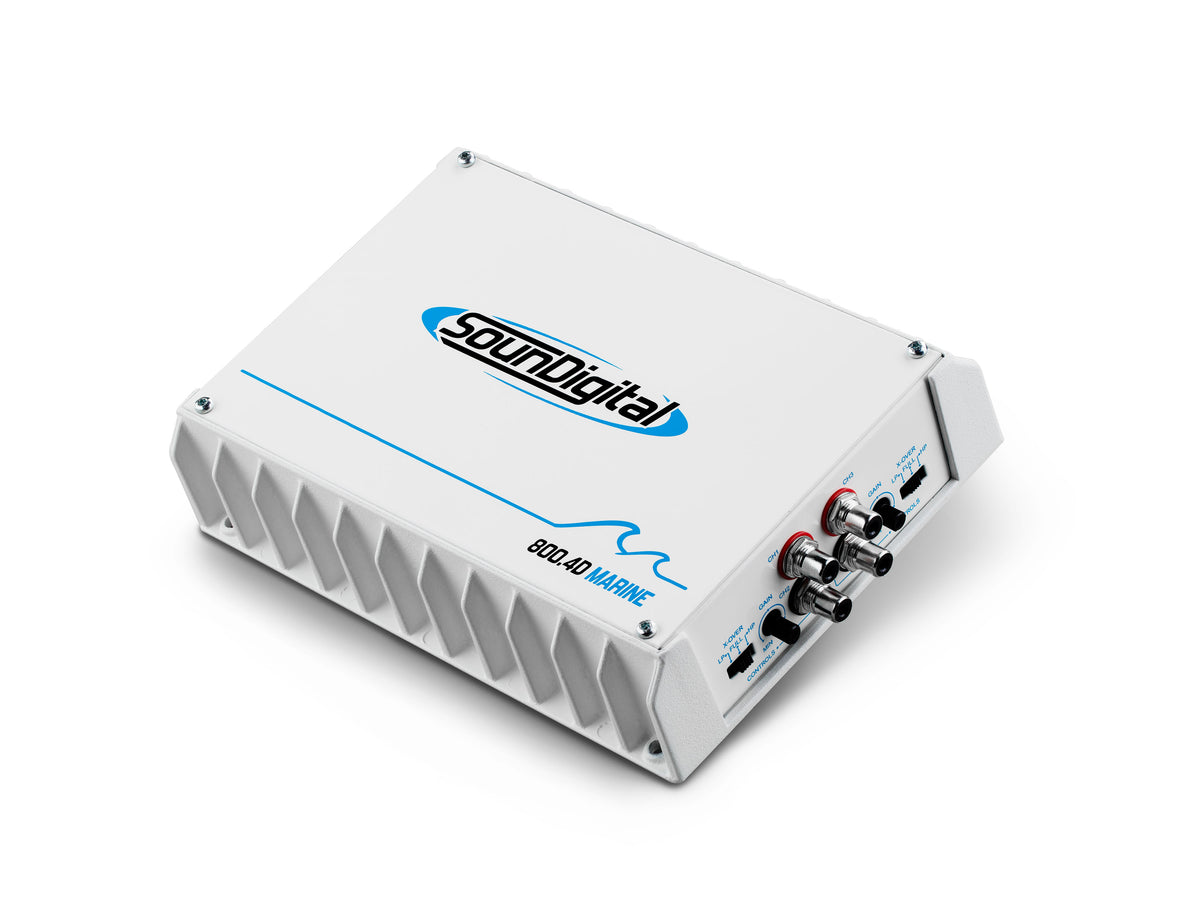

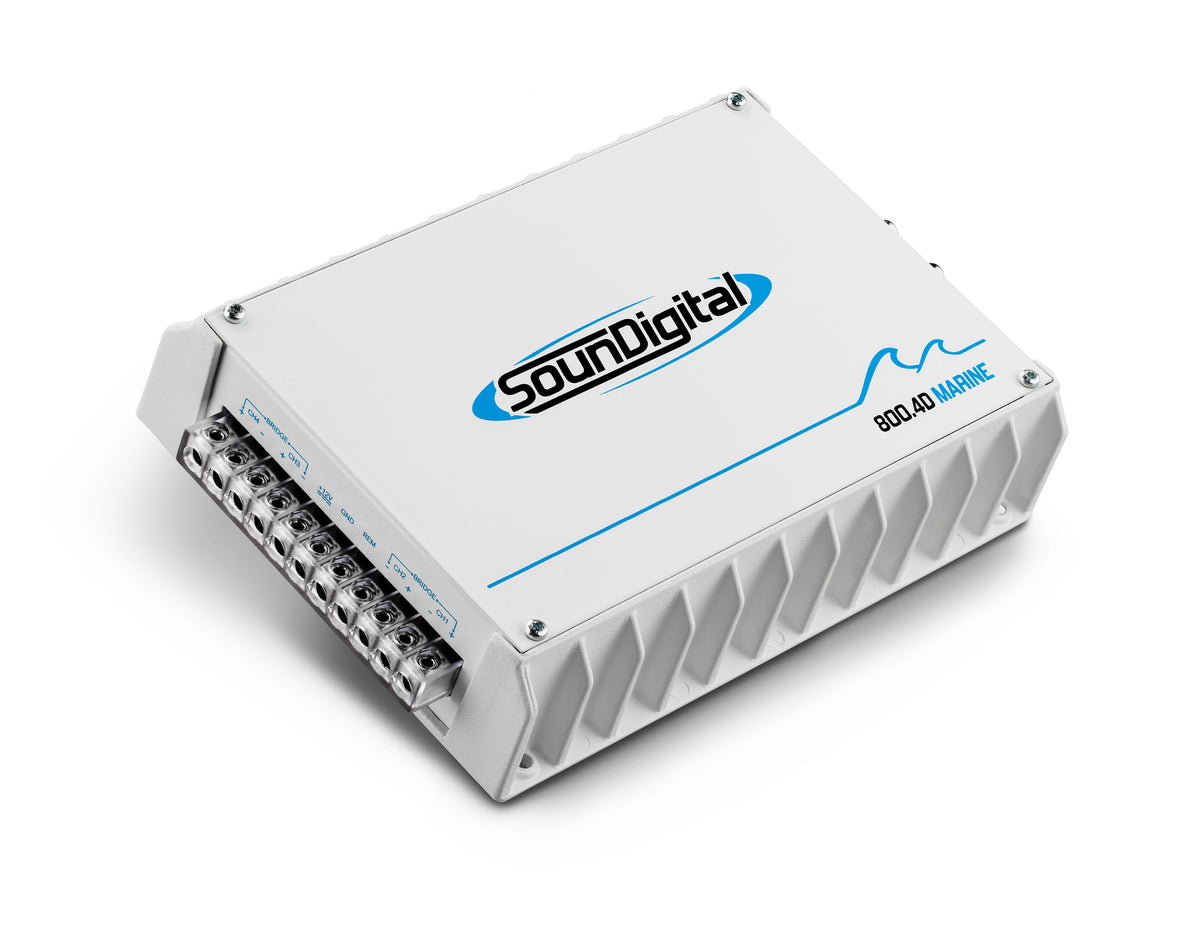

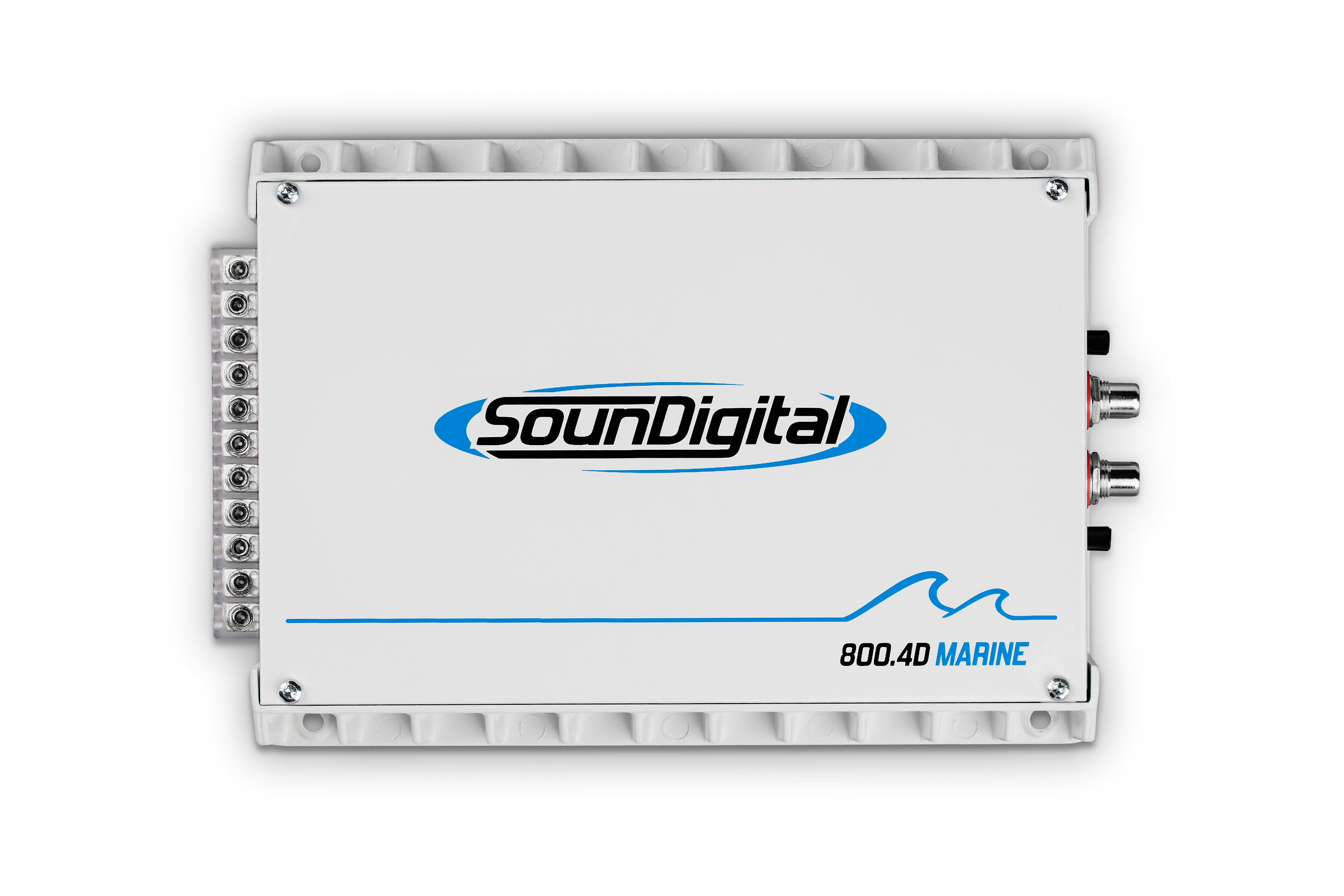

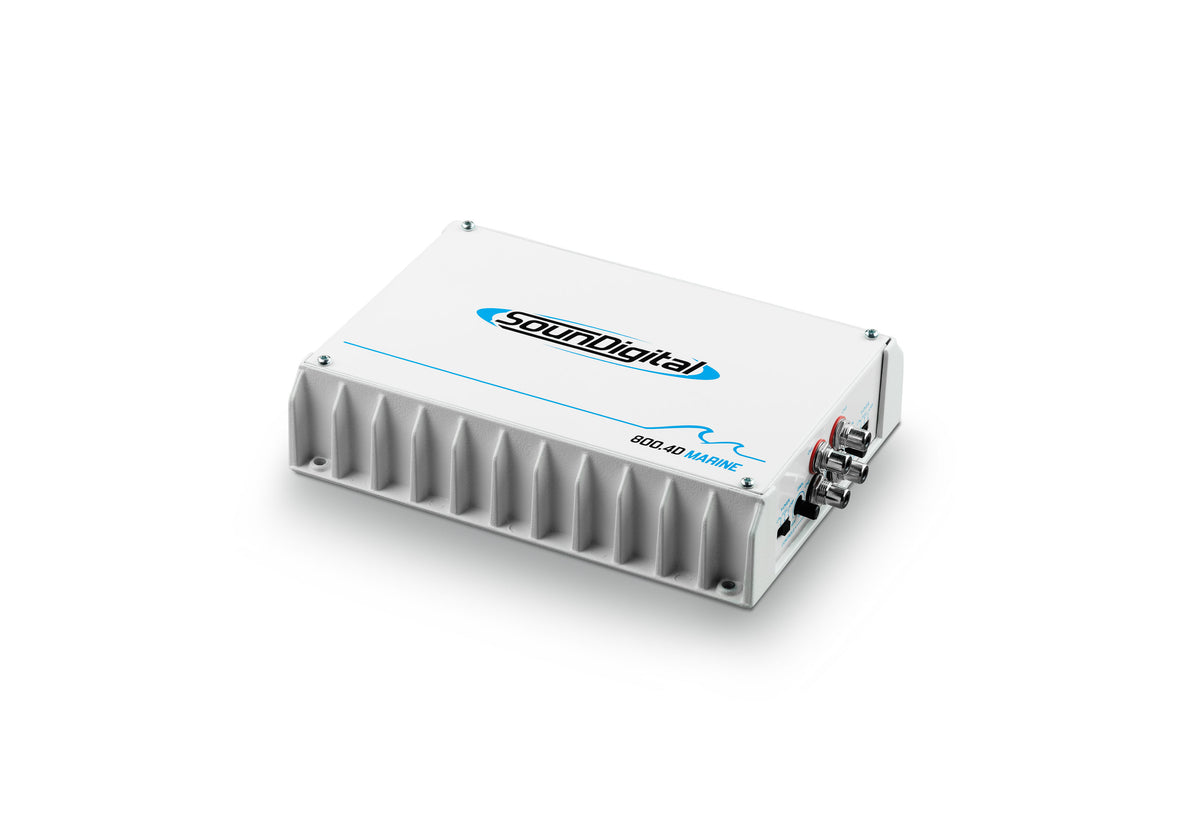

800.4D MARINE



The Marine Line offers to same incredible performance of the EVO Line, but with all the necessary characteristics for the marine environment.



800.4D MARINE 2Ω
Power @ 12.6V @ 1Ω: 4 x 200 W RMS
Power @ 12.6V @ 2Ω: 4 x 110 W RMS
Power @ 12.6V @ 4Ω: 4 x 61 W RMS
Bridge Power @ 12.6V @ 2Ω: 2 x 400 W RMS
Bridge Power @ 12.6V @ 4Ω: 2 x 220 W RMS
800.4D MARINE 4Ω
Power @ 12.6V @ 2Ω: 4 x 200 W RMS
Power @ 12.6V @ 4Ω: 4 x 110 W RMS
Power @ 12.6V @ 8Ω: 4 x 61 W RMS
Bridge Power @ 12.6V @ 4Ω: 2 x 400 W RMS
Bridge Power @ 12.6V @ 8Ω: 2 x 220 W RMS
Working Voltage: 9V – 16V
Current Draw (Music): 39A
Current Draw (Max): 78A
Recommended Fuse: 40A
THD + N – (rated power): 0.22%
THD + N – (50% of rated power): 0.022%
THD + N – (10% of rated power): 0.031%
Damping Factor: <200
SNR: 88dB
Frequency Response: 5Hz – 20kHz
Input Sensitivity: 0.5V to 6V
HPF: 80Hz
LPF: 80Hz
Dimensions (L x W x H): 8.66 x 5.79 x 1.81 in
Dimensions (L x W x H): 21.3 x 17.4 x 4.6 cm
Weight: 2.42 lbs (1.1 kg)
