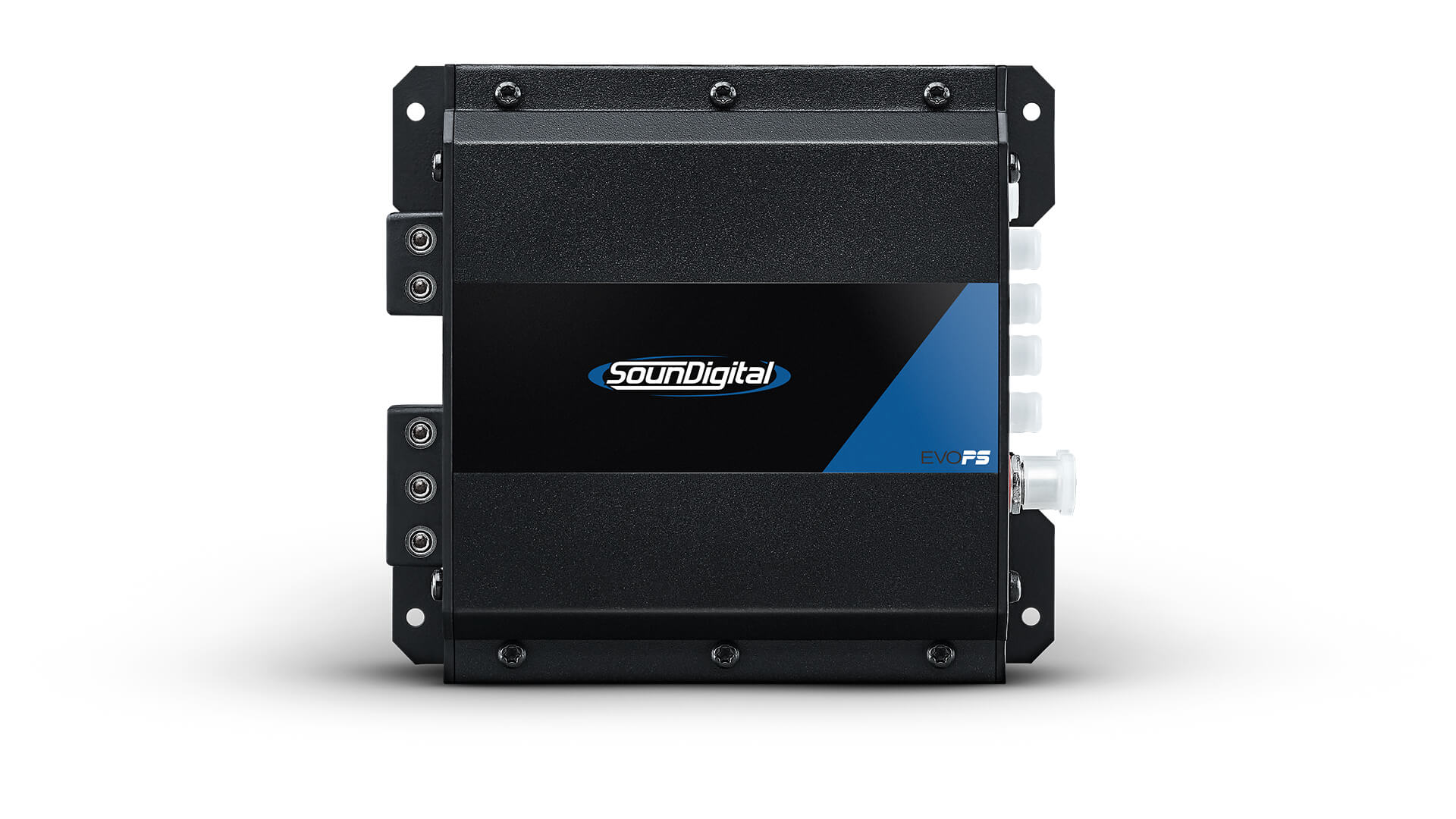

800.1 EVOPS



For use in PowerSports application, the 800.1 EVOPS is an ultra compact, modern design amplifier that delivers 800W RMS of power.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more precise, in addition to ensuring better performance and efficiency for projects in all kinds of rough environment.

800.1 EVOPS – 2Ω
Power @ 4Ω: 1 X 528 WRMS
Power @ 2Ω: 1 X 800 WRMS
Power @ 1Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 32 A
Current Draw (Max): 65 A
Recommended Fuse (Music): 40 A
Total Efficiency: 85%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 500 Hz
SNR: 90dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.1%
Bass Boost: 0-12 dB @ 50Hz
Product Dimensions: 5.7 x 5.1 x 2.2 in
Product Dimensions: 14.4 x 13 x 5.6 cm
