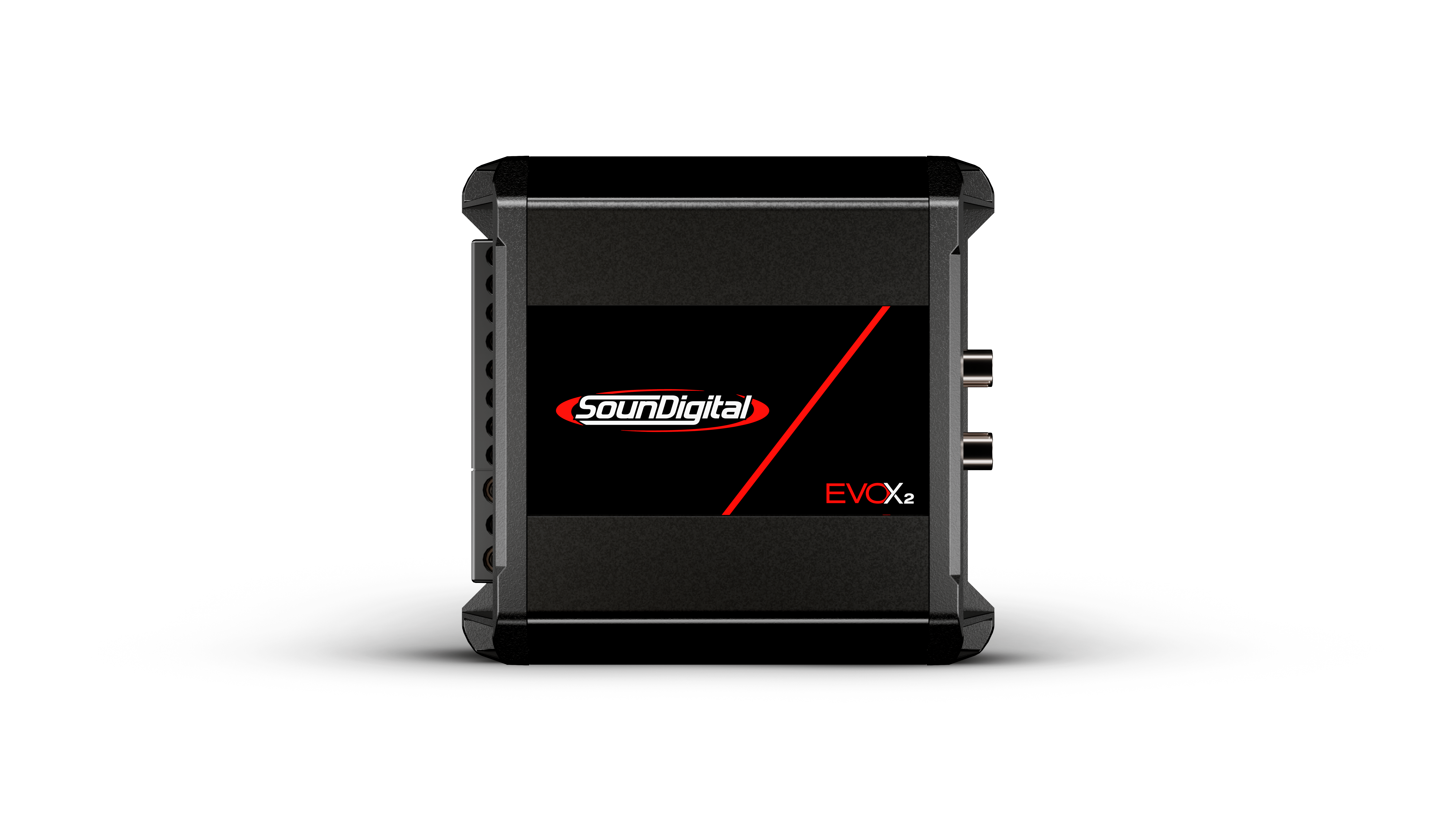

400.4 EVOX2



The 400.4 EVOX2 is a compact, modern amplifier that delivers 400W RMS of power distributed over 4 channels.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more precise, in addition to ensuring better performance and efficiency for all types of project.

400.4 EVOX2 – 4Ω
Power @ 4Ω: 4 X 66 WRMS
Power @ 2Ω: 4 X 100 WRMS
Power @ 1Ω: N/A
Bridge Power @ 4Ω: 2 X 200 WRMS
Bridge Power @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 17 A
Current Draw (Max): 34 A
Recommended Fuse (Music): 20 A
Total Efficiency: 83%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 96dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 4.8 x 4.4 x 2.0 in
Product Dimensions: 12.2 x 11.3 x 5.1 cm
