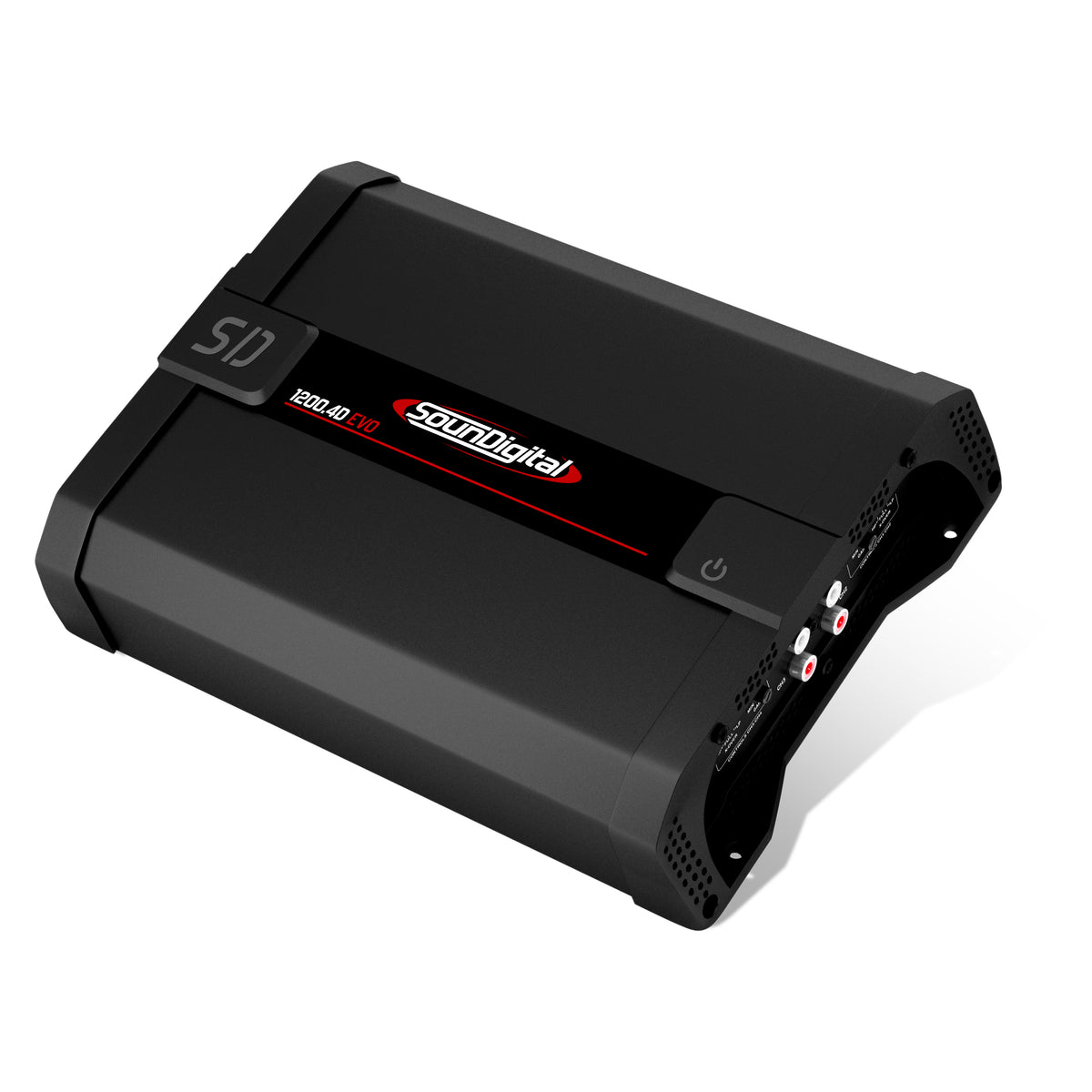

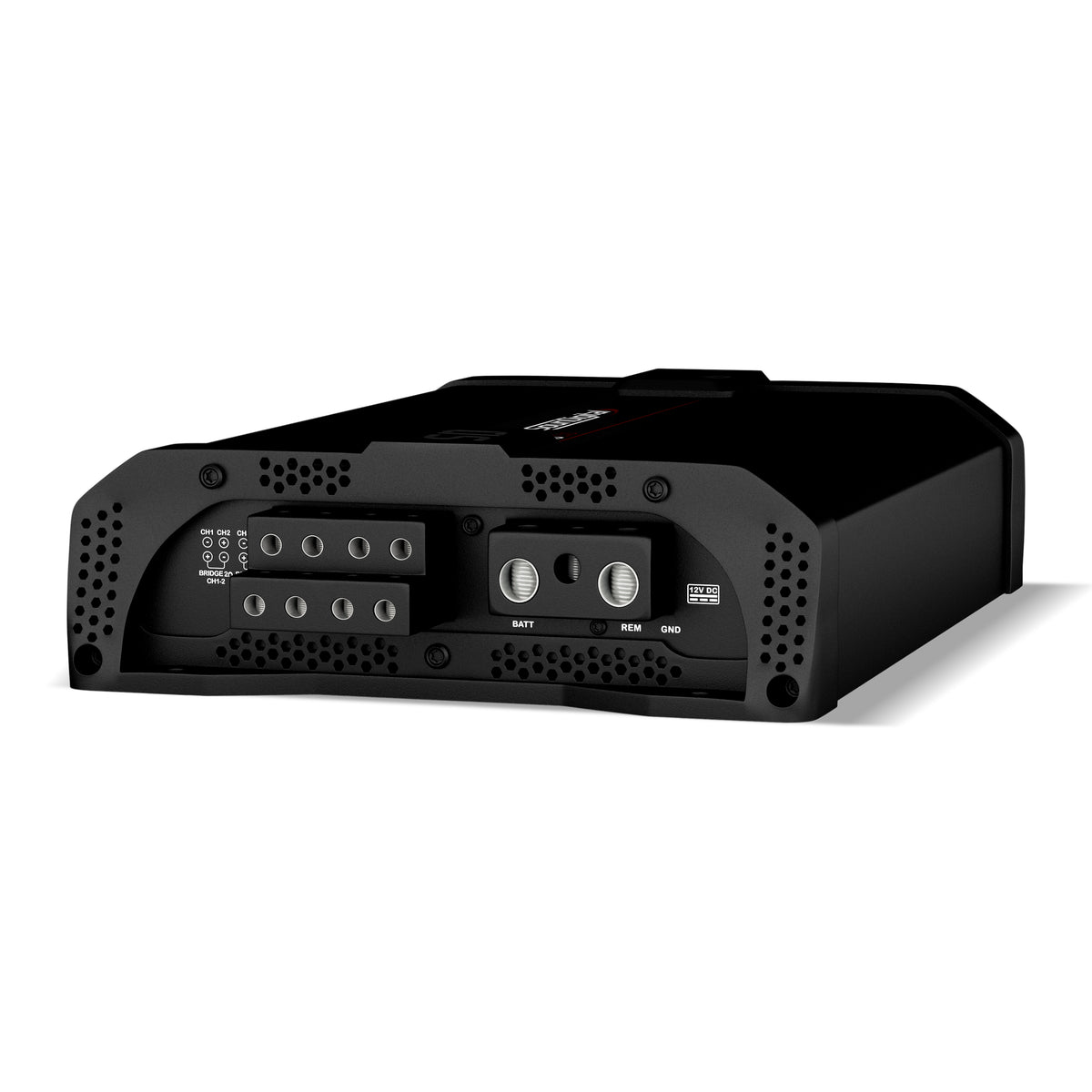

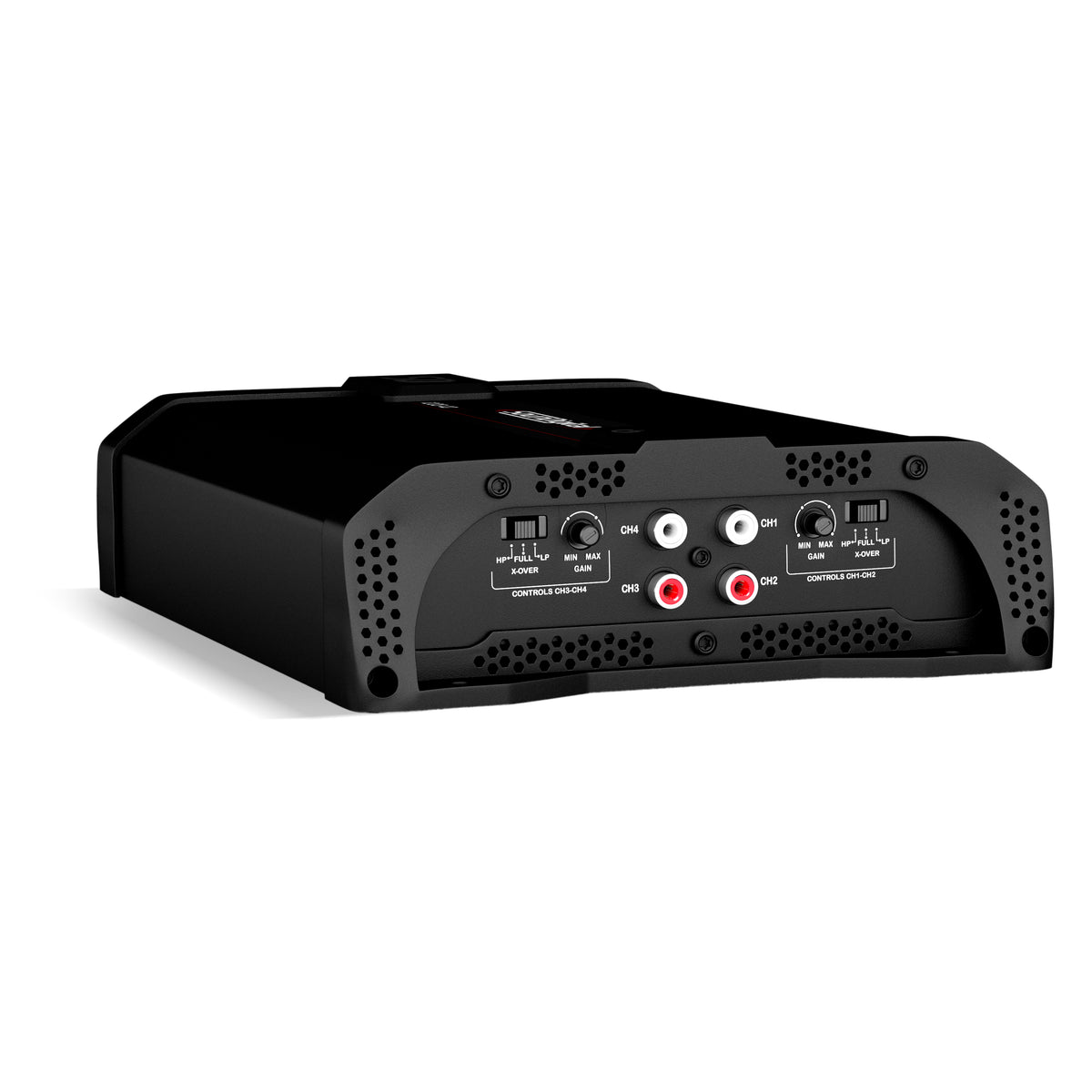

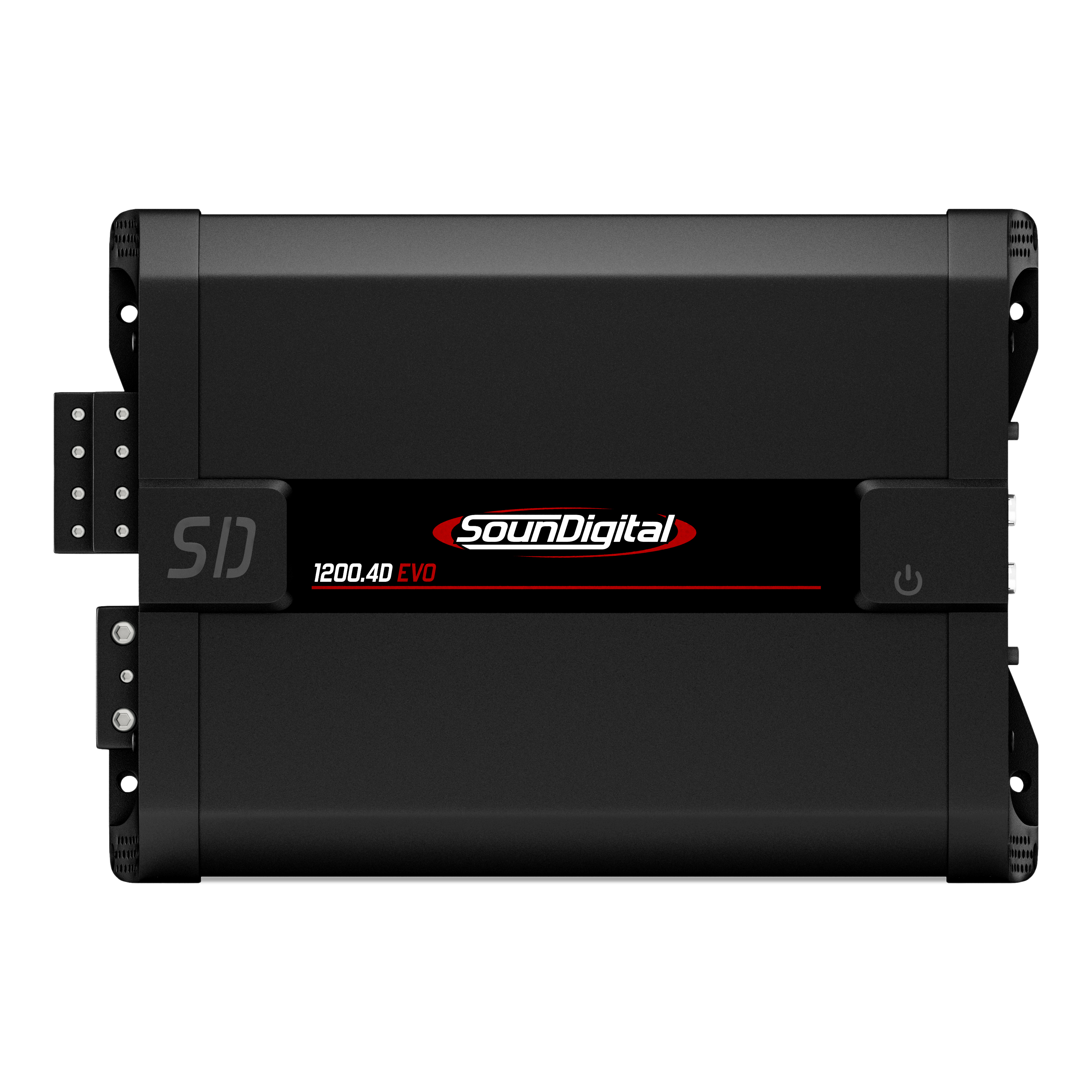

1200.4D EVO



THE NEW EVO LINE is here to stay and has every resource to produce the perfect sound. Quality, efficiency, stability, onboard crossover and innovative design.



READ MORE1200.4D 2Ω
Power @ 12.6V @ 1Ω: 4 x 300 W RMS
Power @ 12.6V @ 2Ω: 4 x 165 W RMS
Power @ 12.6V @ 4Ω: 4 x 91 W RMS
Bridge Power @ 12.6V @ 2Ω: 2 x 600 W RMS
Bridge Power @ 12.6V @ 4Ω: 2 x 330 W RMS
Power @ 14.4V @ 1Ω: 4 x 392 W RMS
Power @ 14.4V @ 2Ω: 4 x 215 W RMS
Power @ 14.4V @ 4Ω: 4 x 119 W RMS
Bridge Power @ 14.4V @ 2Ω: 2 x 784 W RMS
Bridge Power @ 14.4V @ 4Ω: 2 x 431 W RMS
1200.4D 4Ω
Power @ 12.6V @ 2Ω: 4 x 300 W RMS
Power @ 12.6V @ 4Ω: 4 x 165 W RMS
Bridge Power @ 12.6V @ 4Ω: 2 x 600 W RMS
Power @ 14.4V @ 2Ω: 4 x 392 W RMS
Power @ 14.4V @ 4Ω: 4 x 215 W RMS
Bridge Power @ 14.4V @ 4Ω: 2 x 784 W RMS
Operating Voltage: 9V – 16V
Current Draw (Music): 66A
Current Draw (Max): 132A
THD+N – (10% Rated Power): 0,007%
Damping Factor: 20
SNR: 92 dB
Frequency Response: 5 Hz – 20 kHz
HPF: 80Hz
LPF: 80Hz
Recommended Fuse: 70A
Dimensions (L x W x H) 10.31 x 7.09 x 2.09 in
